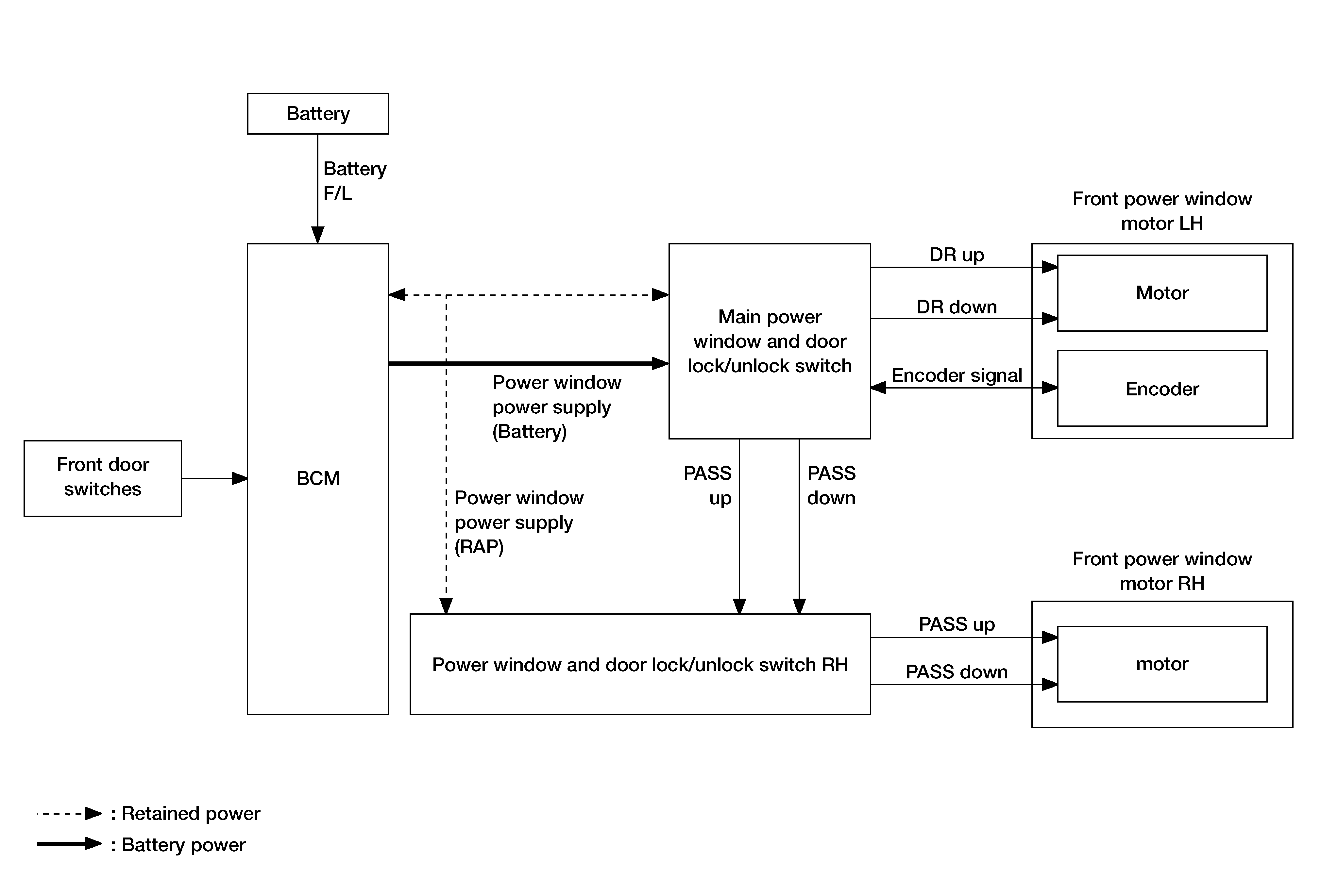

Front Window System
INPUT/OUTPUT SIGNAL CHART
|
Item |
Input signal to main power window and door lock/unlock switch |
Main power window and door lock/unlock switch function |
Actuator |
|
Encoder |
Encoder pulse signal |
Power window control |
Front power window motor LH |
|
Main power window and door lock/unlock switch |
Front power window motor LH UP/DOWN signal |
Front power window motor LH/RH |
|
|
Power window and door lock/unlock switch RH |
Front power window motor RH UP/DOWN signal |
||
|
BCM |
RAP signal |
