Removal and Installation: Removal

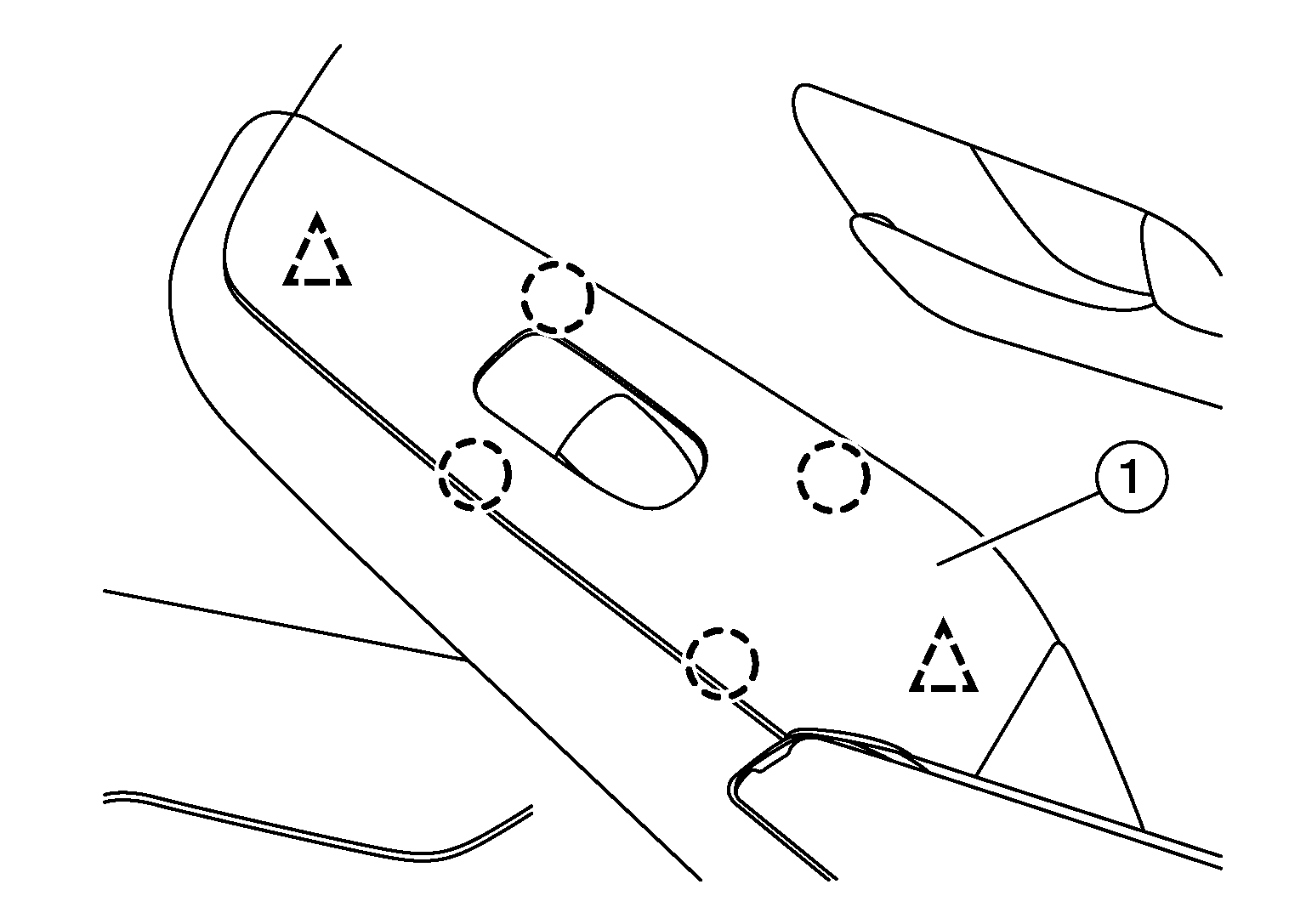

  1. Using a suitable tool, release clips and pawls and remove rear power window switch finisher (1).
    GNSALKIA1057Z-057Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: RH shown; LH similar

    SYMBOL

    : Pawl

    SYMBOL

    : Clip
  2. Disconnect the harness connector from the rear power window switch.

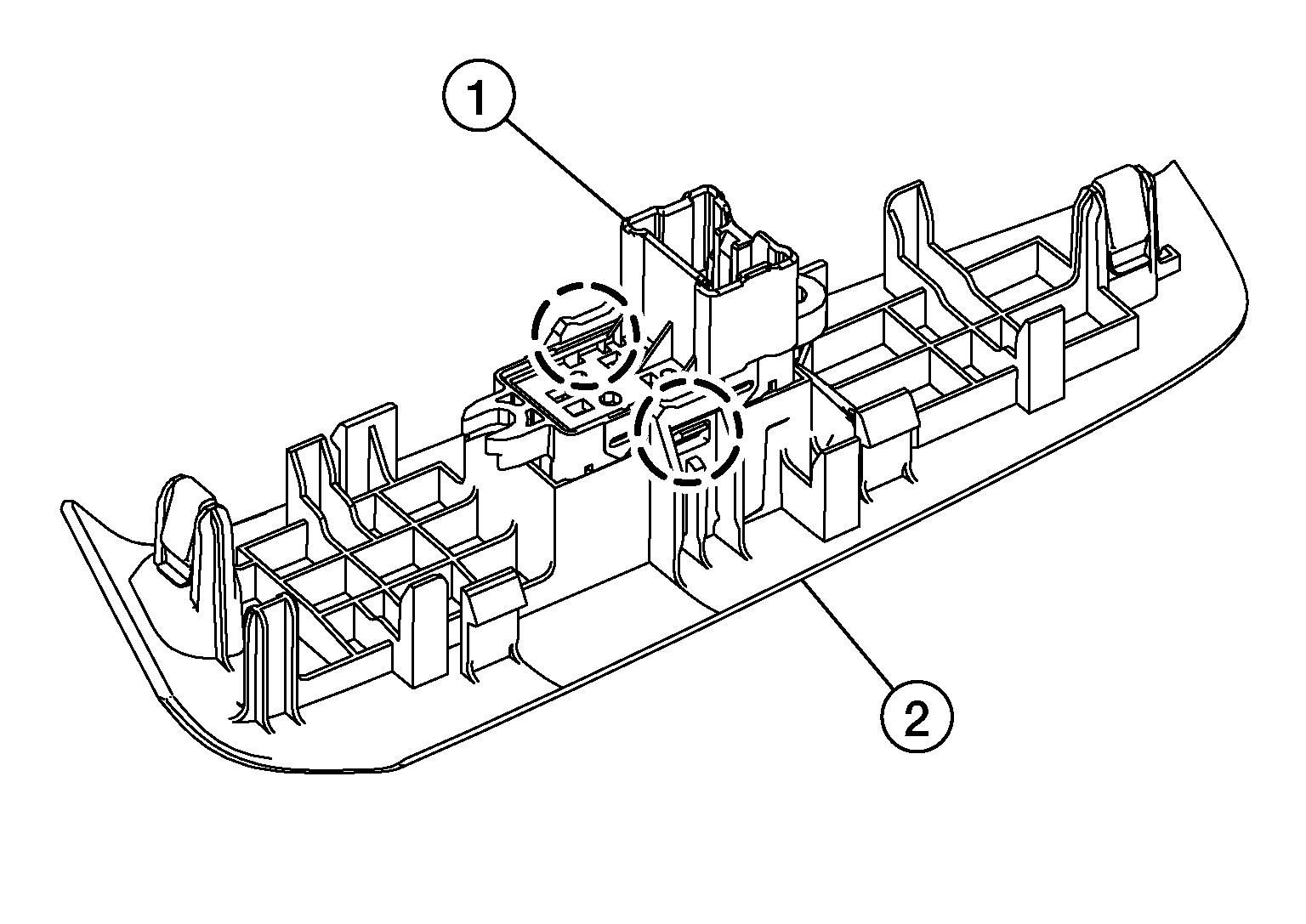

  3. Using a suitable tool, release the pawls and remove the rear power window switch (1) from the rear power window switch finisher (2).
    GNSALKIA1039Z-039Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: RH shown; LH similar

    SYMBOL

    : Pawl
