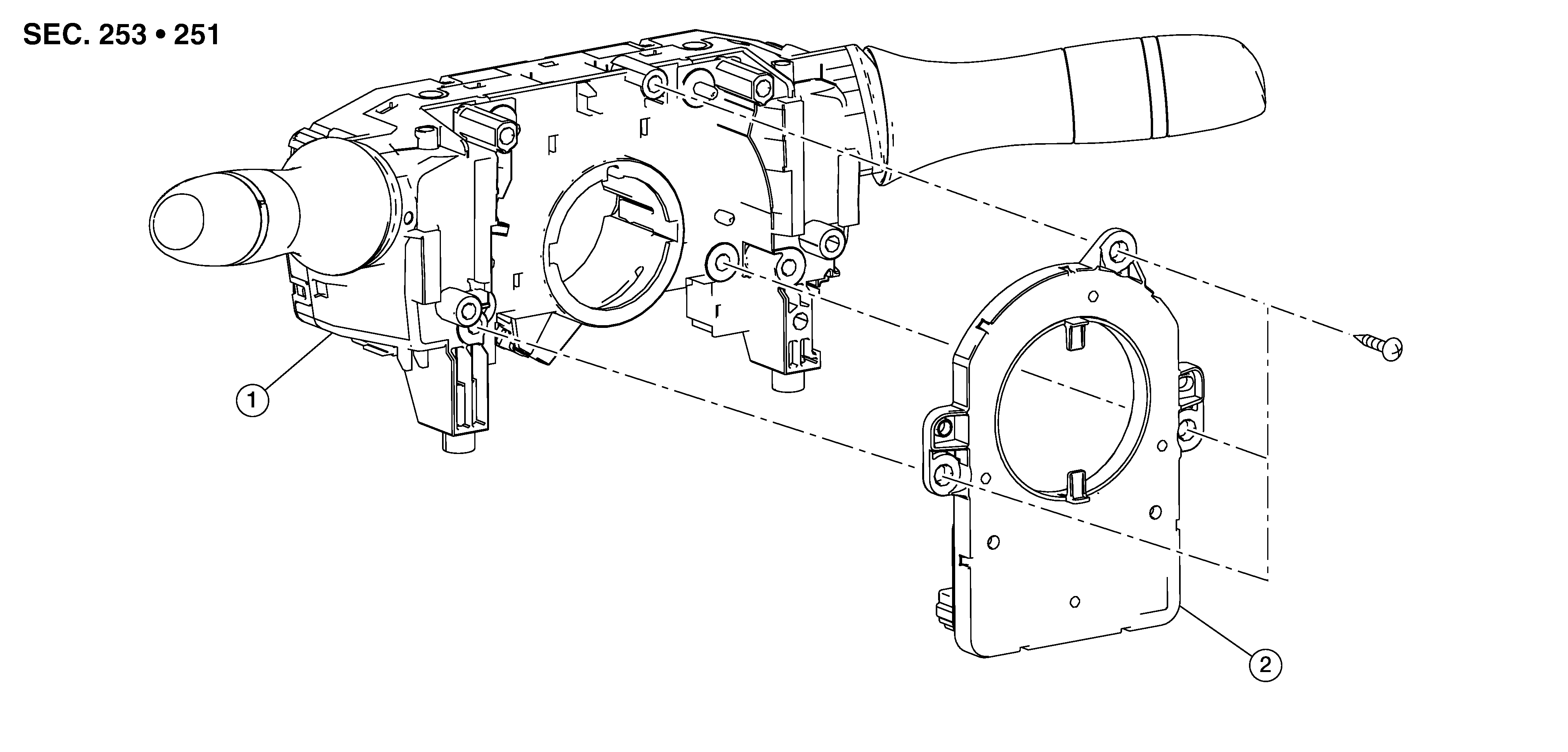

Exploded View

GNSDB116260Courtesy of NISSAN NORTH AMERICA, INC.

1.

Combination Switch

2.

Chassis Control Module (With Built In Steering Angle Sensor)
