Removal and Installation: Removal

  1. Remove spiral cable assembly. Refer to Removal and Installation .

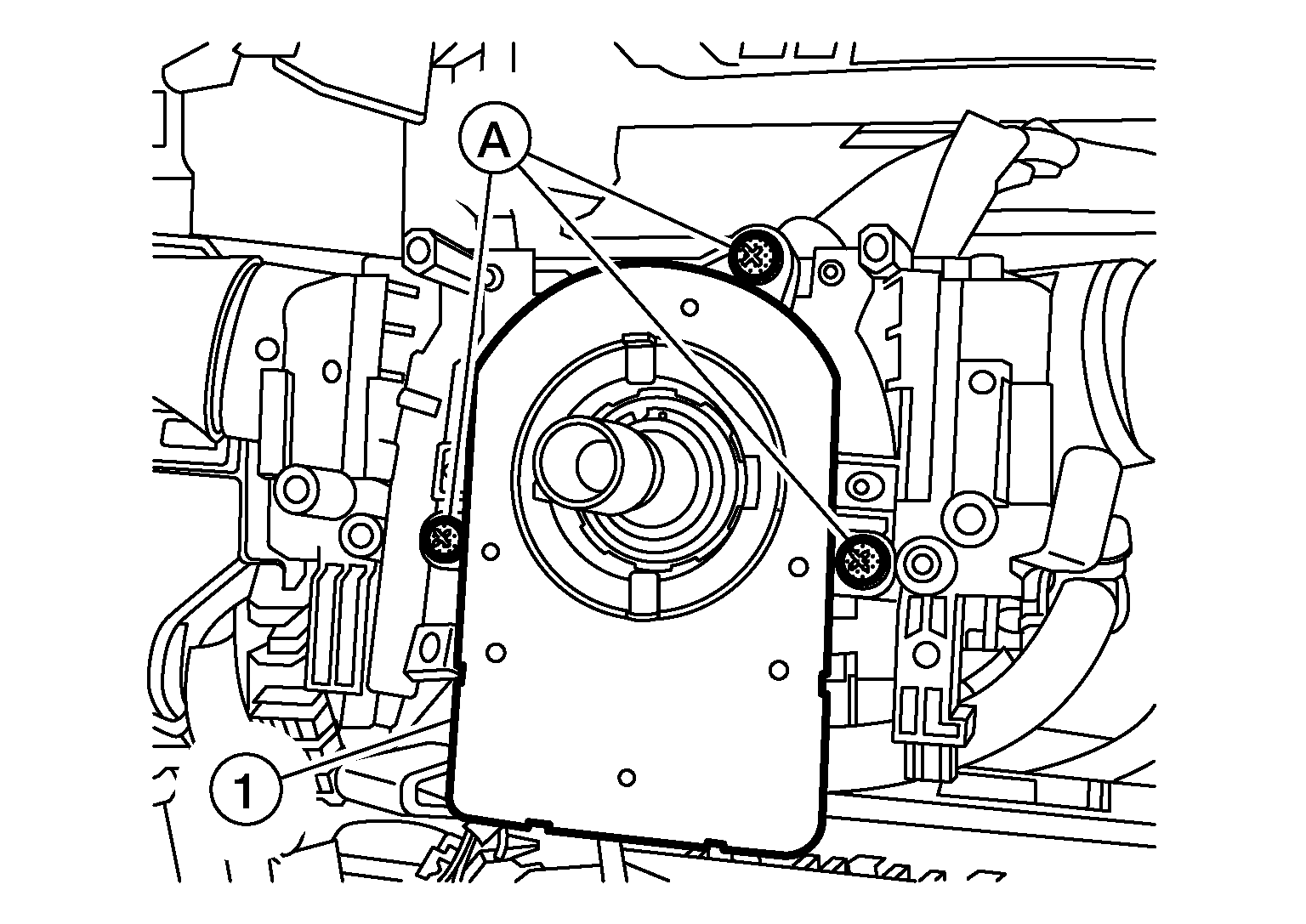

  2. Disconnect harness connector from chassis control module [with built in steering angle sensor (1)].
    GNSALOIA0175Z-175Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove screws (A) and remove chassis control module (with built in steering angle sensor).
    CAUTION: Do not drop chassis control module (with built in steering angle sensor).
