Exploded View

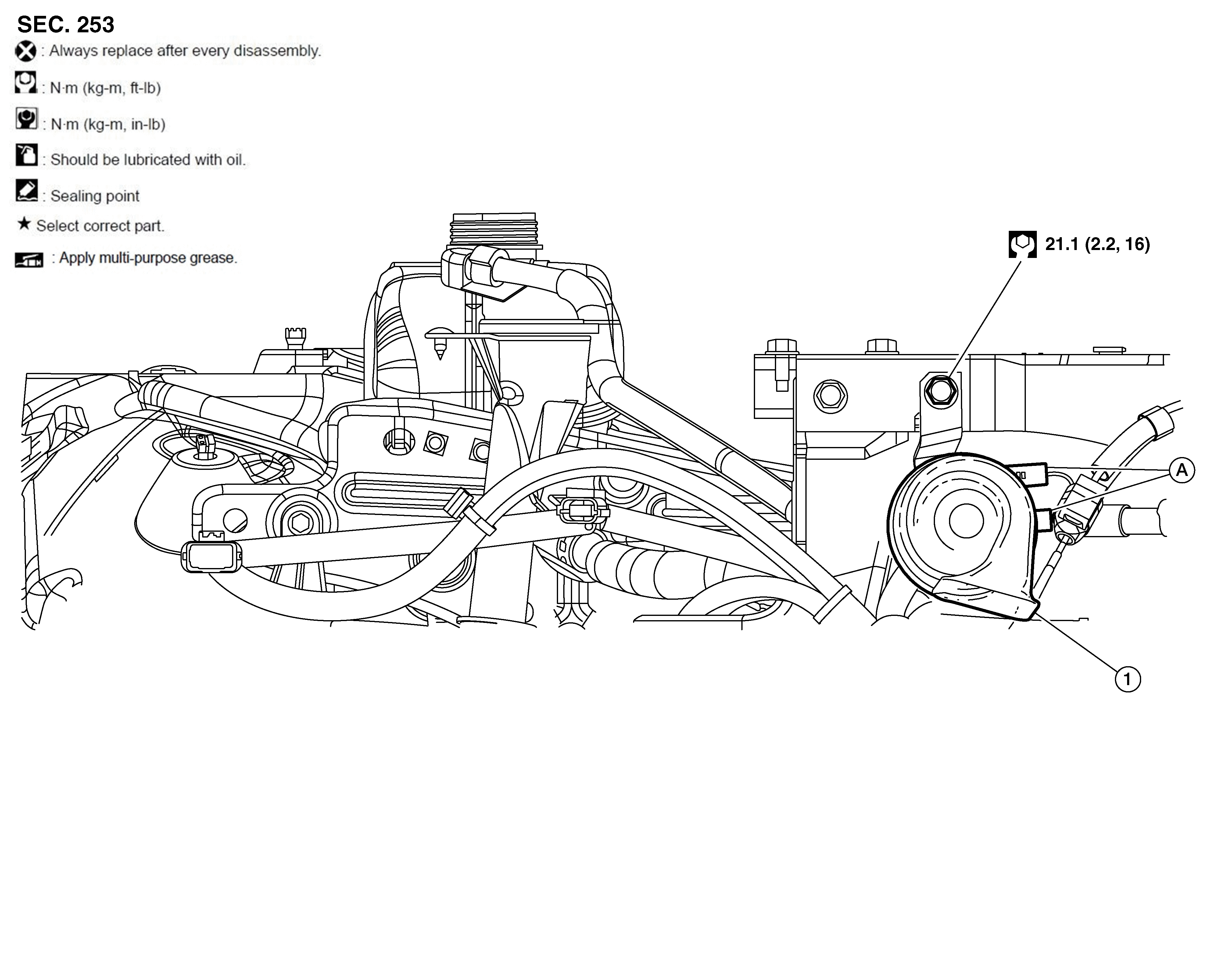

Fig 1: Horn Components With Torque Specifications
GNSAWLIA0241Z-241Courtesy of NISSAN NORTH AMERICA, INC.

1.

Horn

A.

Harness Connectors
NOTE: Shown with the front fascia removed for clarity.
