Component Inspection

1. Turn ignition switch OFF.
2. Disconnect EVT control solenoid valve harness connector.
3. Check the resistance between EVT control solenoid valve terminals as per the following.

   EVT control solenoid valve		Condition		Resistance
   Terminal
   1	2	Temperature	20 deg. C (68 deg. F)	6.7 - 7.7 Ohms

4. Check the resistance between EVT control solenoid valve terminal and solenoid valve body.

   EVT control solenoid valve	--	Resistance
   Terminal
   1	Solenoid valve body	Not existed
   2

Is the inspection result normal?

YES

GO TO 2.

NO

Replace EVT control solenoid valve. Refer to Exploded View .

1. Remove EVT control solenoid valve. Refer to Exploded View .

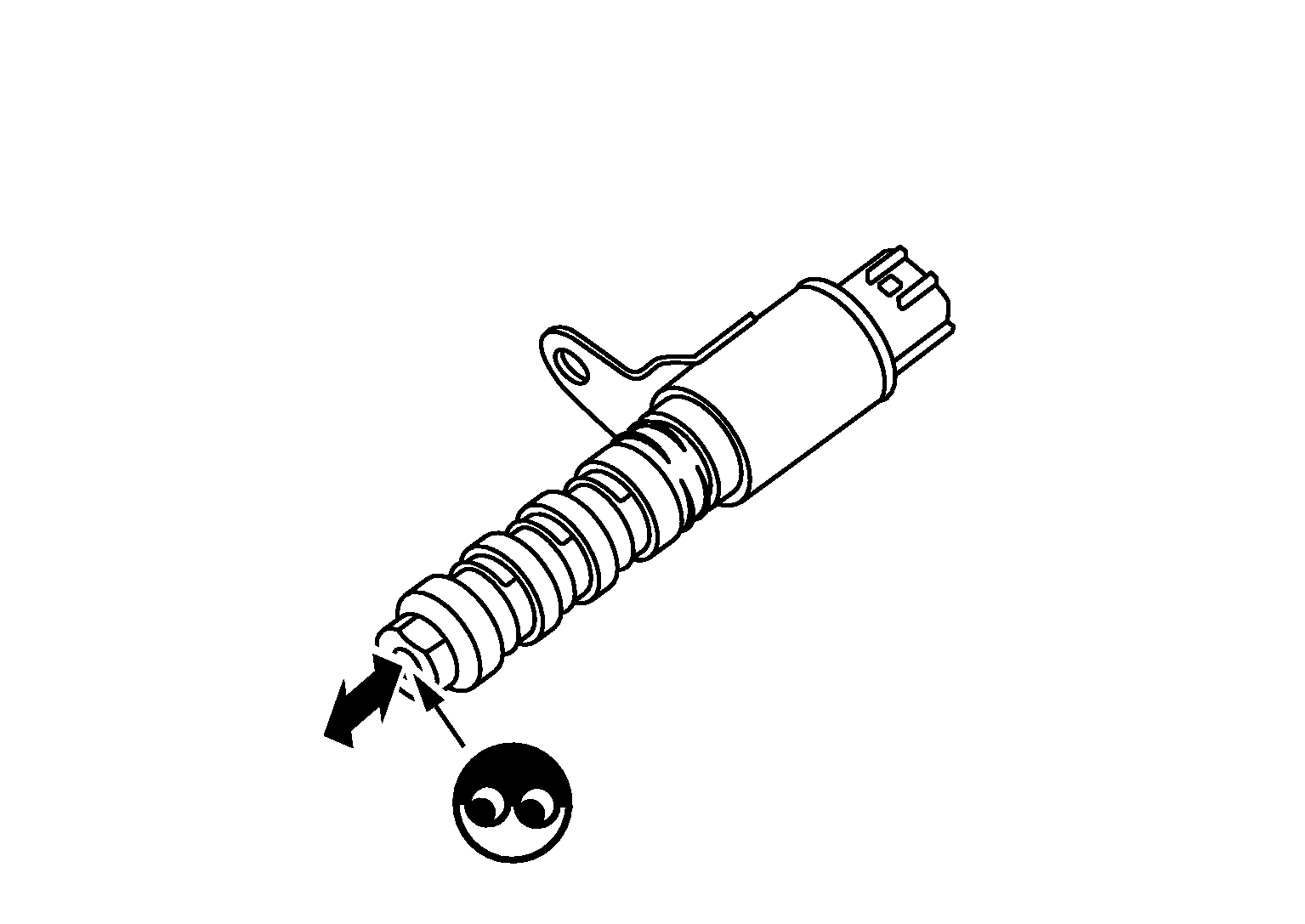

2. Provide battery voltage between EVT control solenoid valve terminals 1 and 2, and then interrupt it. Check that the plunger moves as shown in the figure, below.

   Courtesy of NISSAN NORTH AMERICA, INC.

   CAUTION: Do not apply battery voltage continuously for 5 seconds or more. Doing so may result in damage to the coil in EVT control solenoid valve.
   NOTE: Always replace O-ring when EVT control solenoid valve is removed.

Is the inspection result normal?

YES

INSPECTION END

NO

Replace EVT control solenoid valve. Refer to Exploded View .
