ELECTRIC INTAKE VALVE TIMING CONTROL MODULE : Removal & Installation: Removal

Disconnect the battery. Refer to Battery Disconnect .
Remove front wheel and tire (LH) using power tool. Refer to Removal and Installation .
Partially remove front fender protector (LH). Refer to Exploded View .

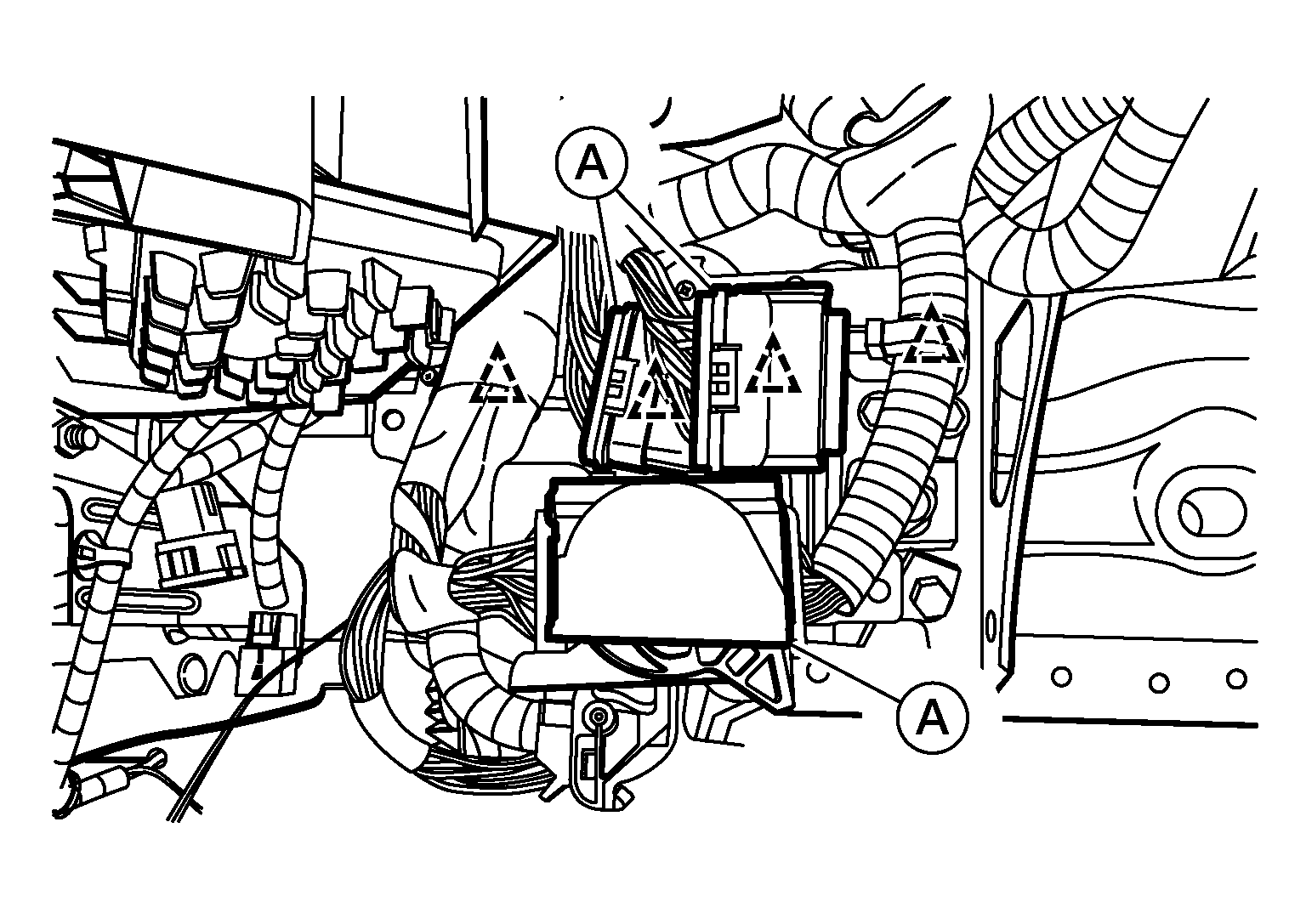

Disconnect harness connectors (A), and release harness retainers.

Courtesy of NISSAN NORTH AMERICA, INC.

: Clip

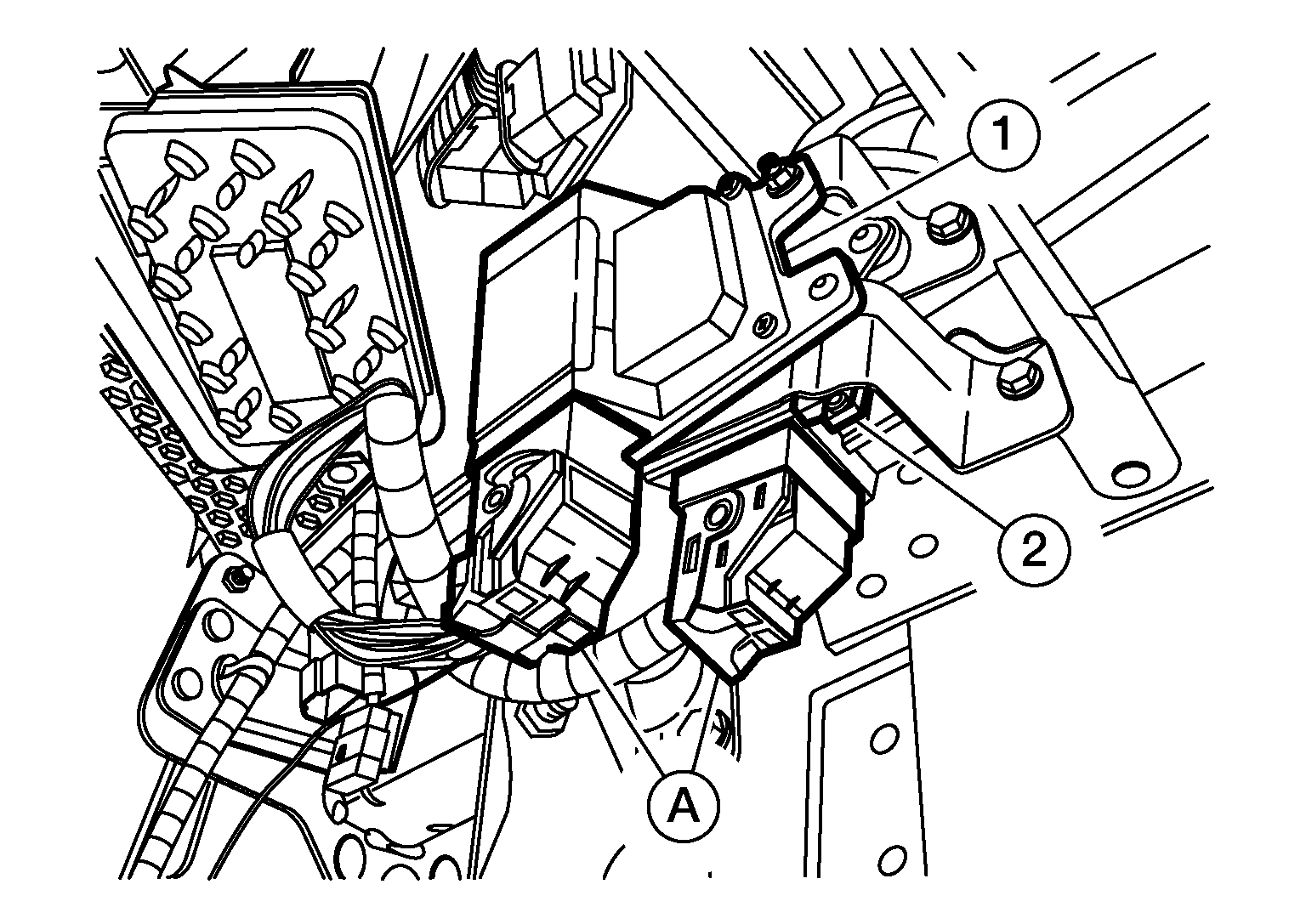

Disconnect the harness connectors (A) from the TCM [1 (if equipped)], and electric intake valve timing control module (2). Refer to Harness Connector (lever locking type).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove bolts (A), and remove TCM Bracket (1).

Courtesy of NISSAN NORTH AMERICA, INC.

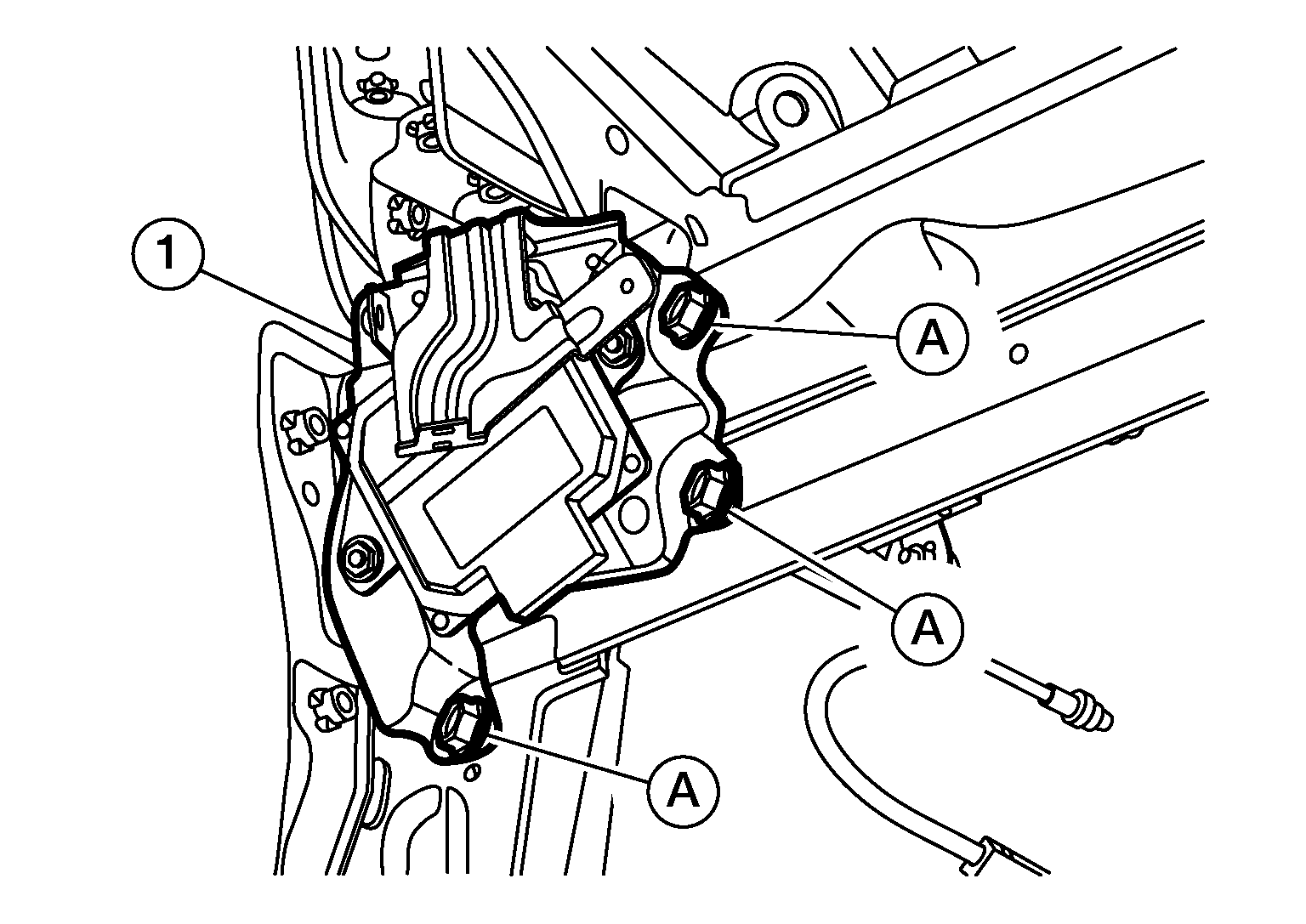

Remove nuts (A), and remove electric intake valve timing control module (1).

Courtesy of NISSAN NORTH AMERICA, INC.
