Exploded View

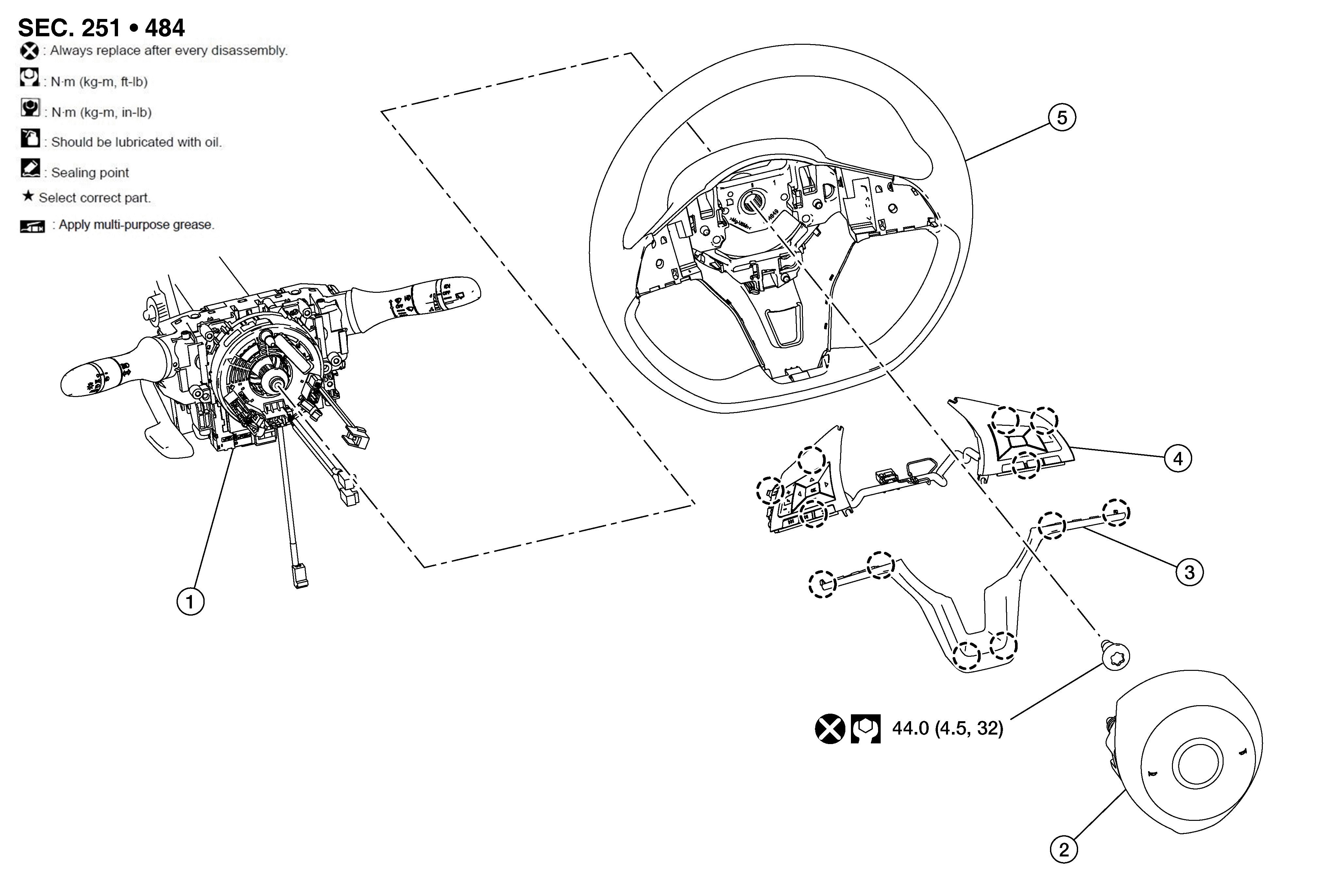

Fig 1: Steering Wheel Components With Torque Specifications
GNSAWGIA0100Z-100Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column assembly

2.

Driver air bag module

3.

Finisher

4.

Steering switches

5.

Steering wheel

SYMBOL

Pawl
