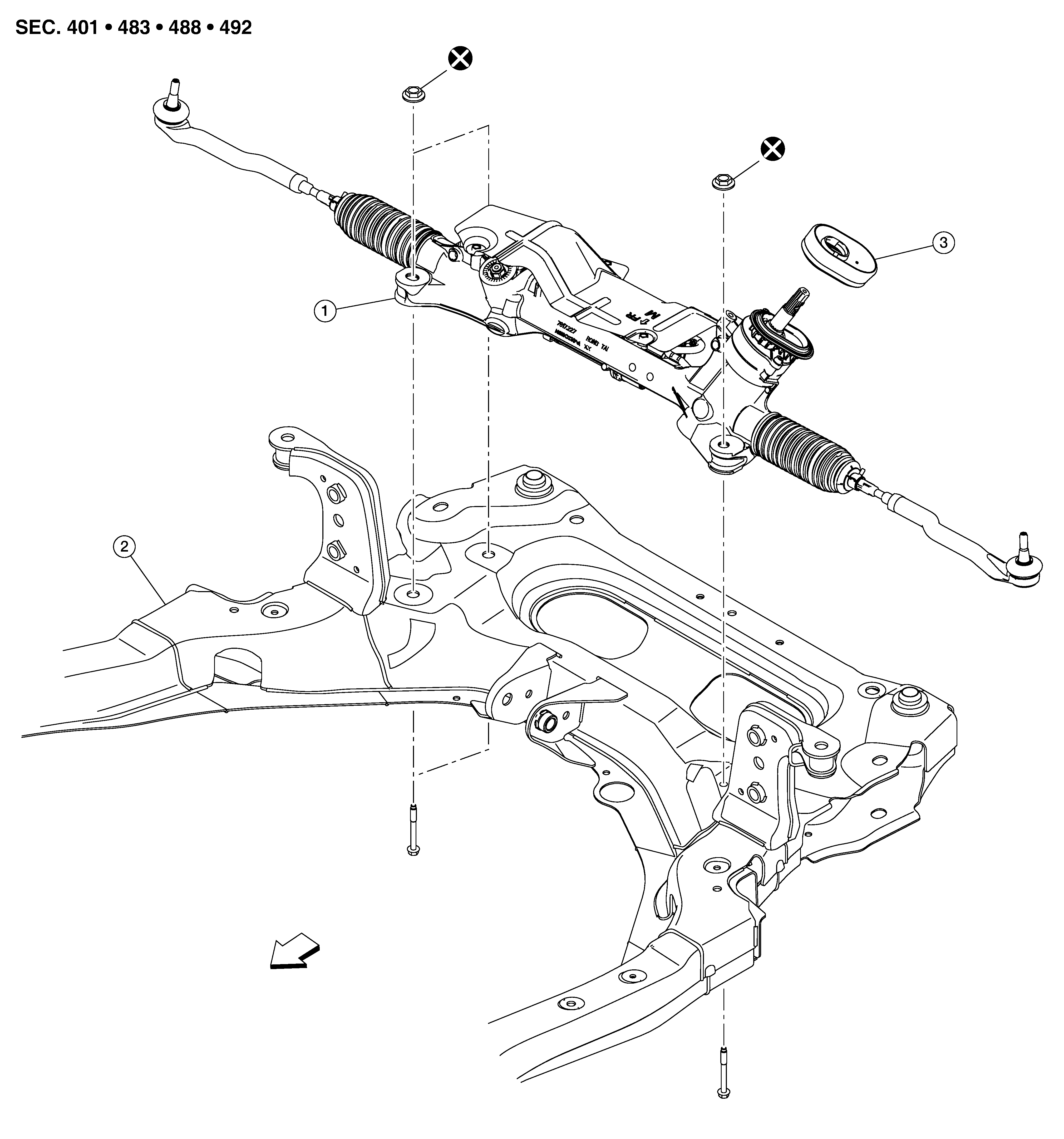

Exploded View: Removal

GNSALGIA0162Z-162Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering gear and linkage assembly

2.

Front suspension member

3.

Seal

SYMBOL

Front
