Removal and Installation: Removal

Remove shift selector finisher using the following steps:

CVT shift selector knob:

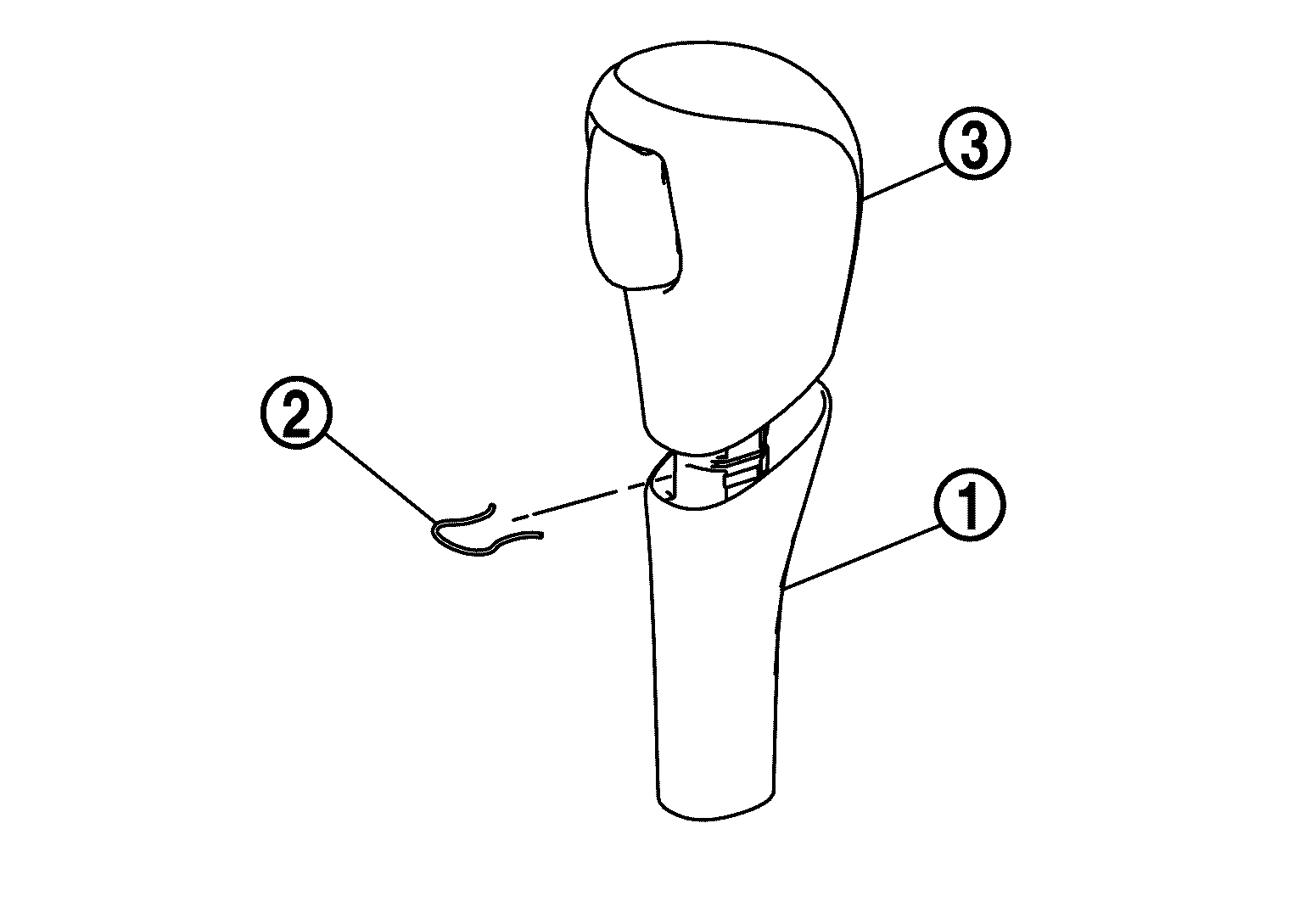

Slide the knob cover (1) down.

Courtesy of NISSAN NORTH AMERICA, INC.

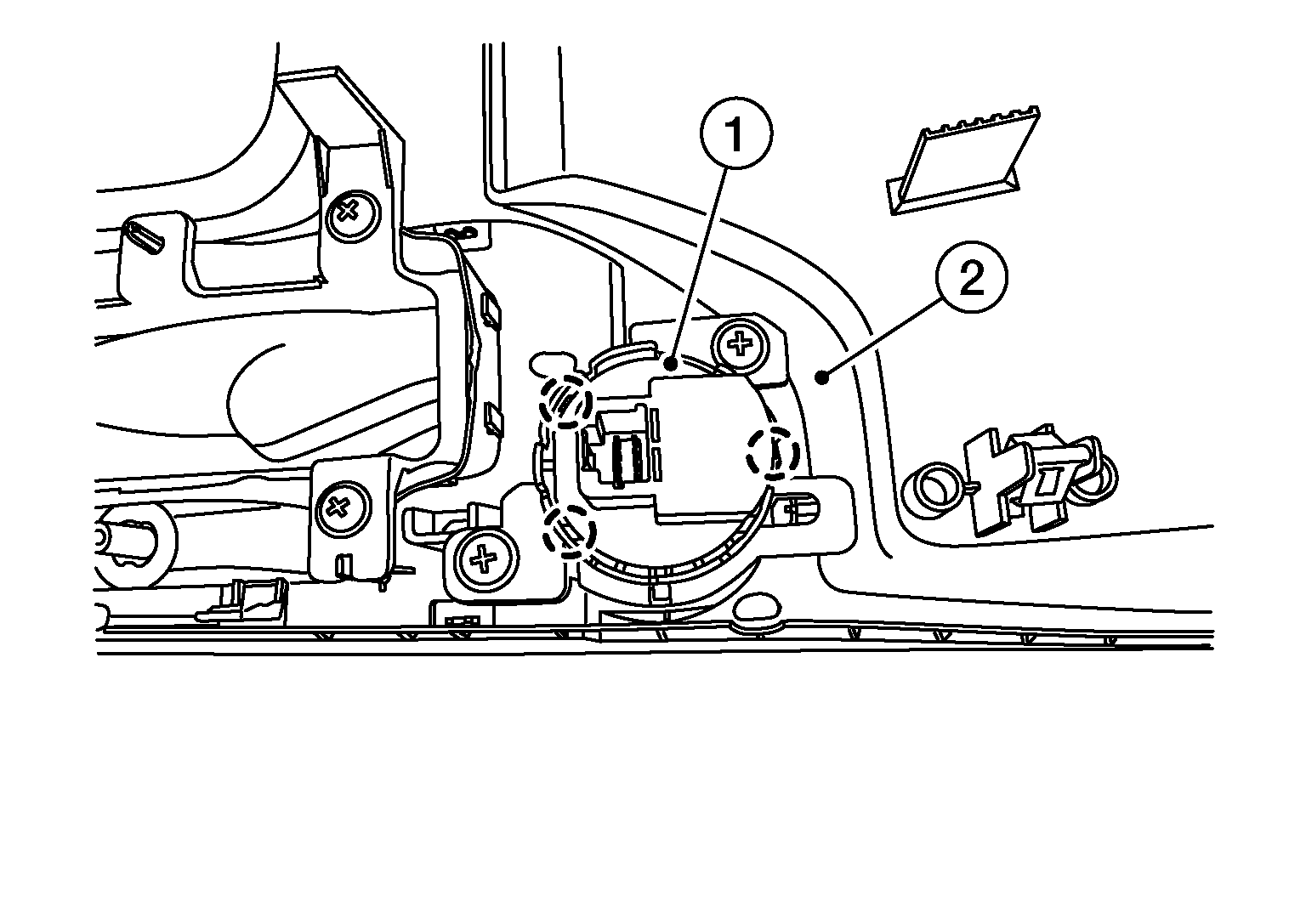

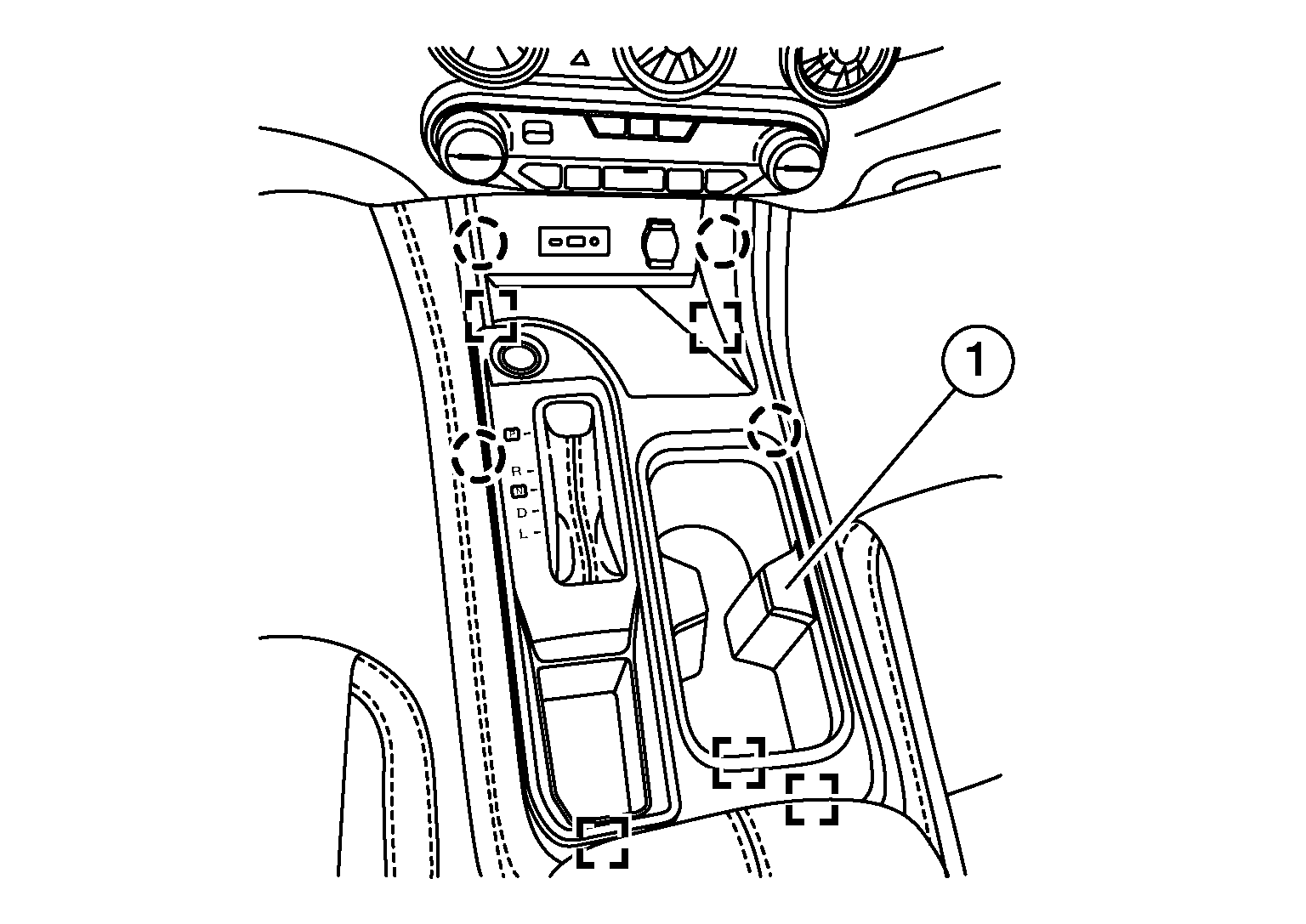

Using a suitable tool, release clips and pawls.

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl

: Metal clip

M/T shift selector knob:

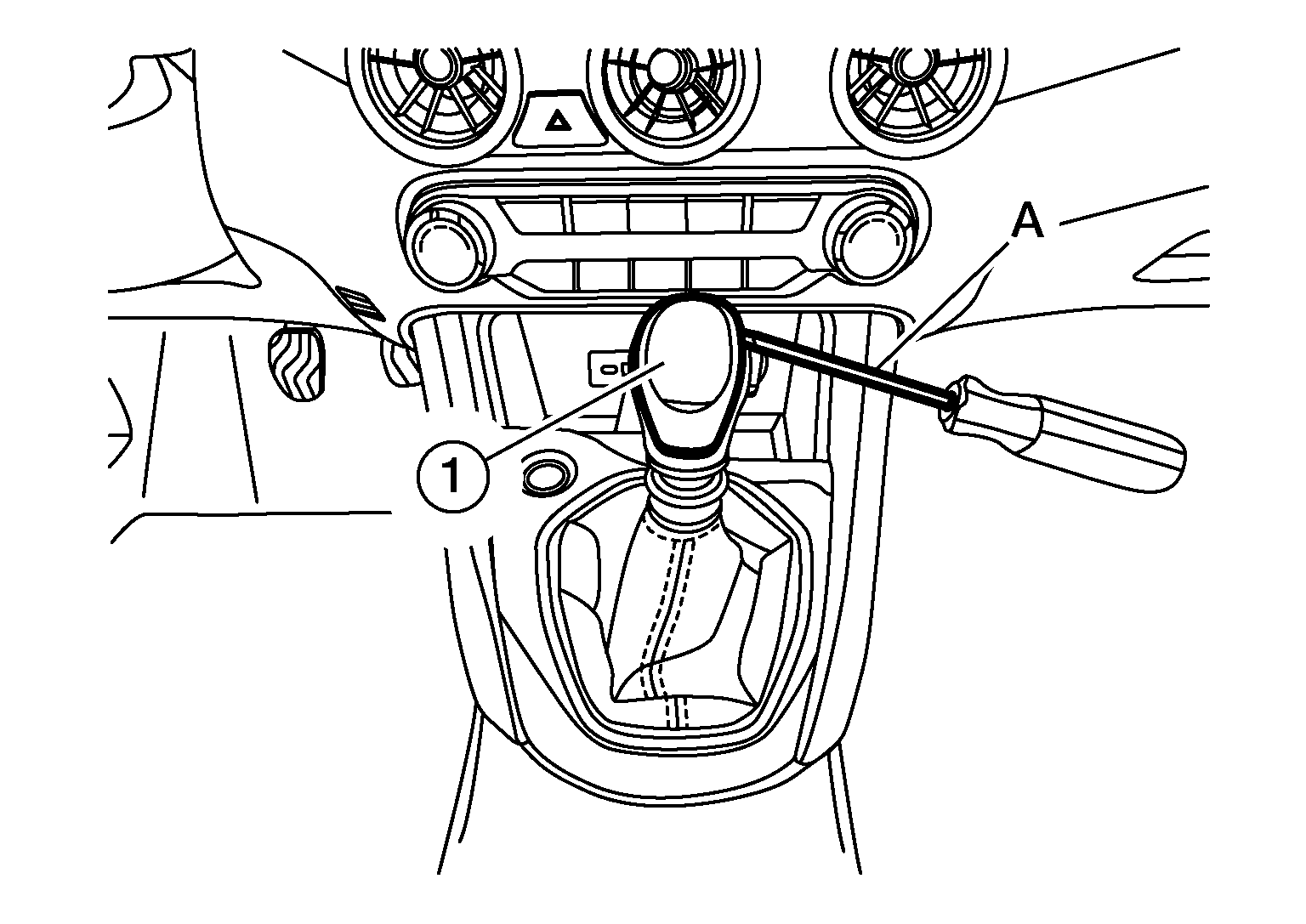

Using suitable tool (A), remove shift knob finisher (1).

Courtesy of NISSAN NORTH AMERICA, INC.

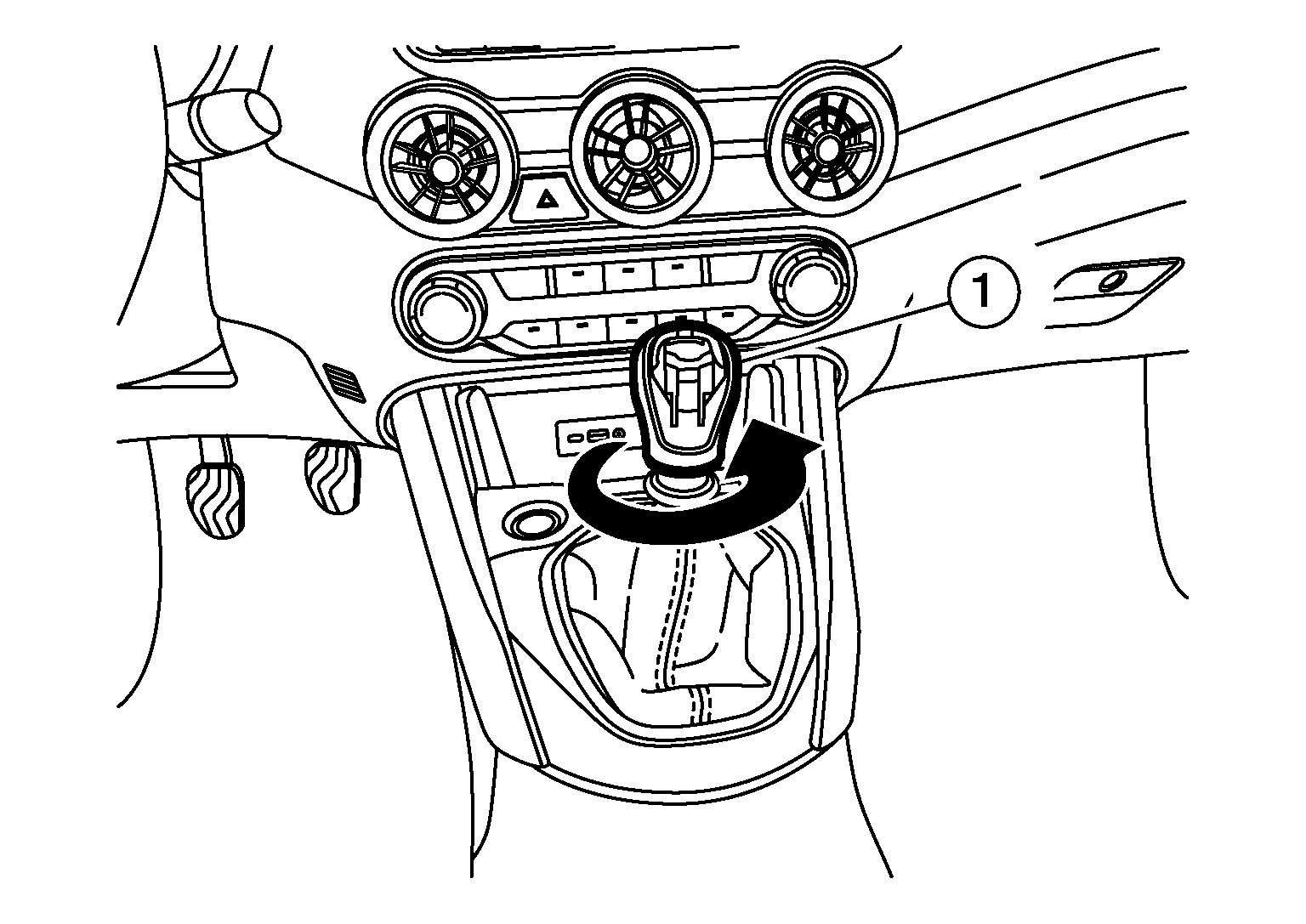

Remove shift knob (1) as shown, below.

Courtesy of NISSAN NORTH AMERICA, INC.

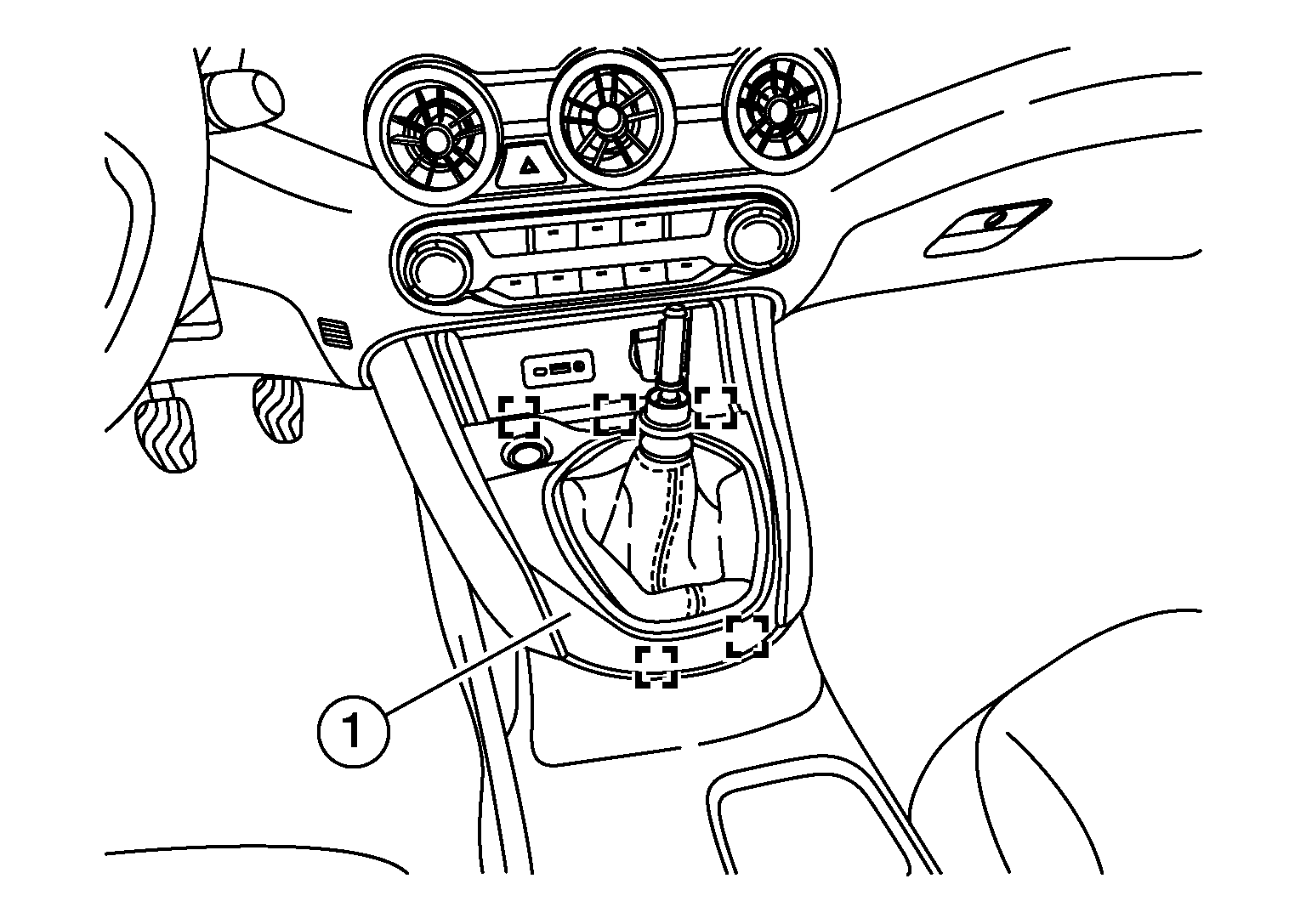

Using a suitable tool, release clips of shift selector finisher (1).

Courtesy of NISSAN NORTH AMERICA, INC.

: Metal clip
