Exploded View

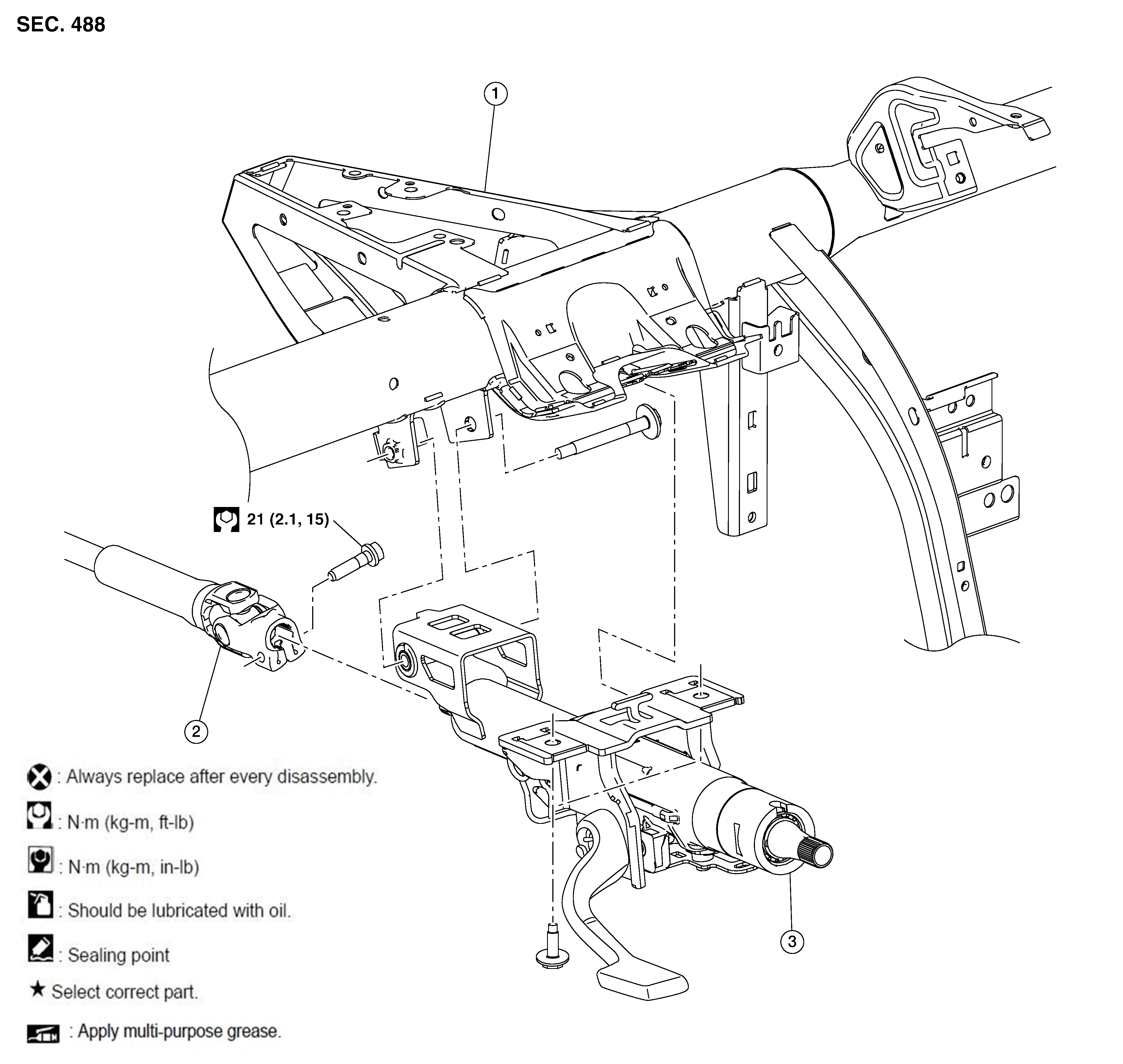

Fig 1: Steering Column Components With Torque Specifications
GNSALGIA0204Z-204Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering member

2.

Lower joint

3.

Steering column

SYMBOL

Front
