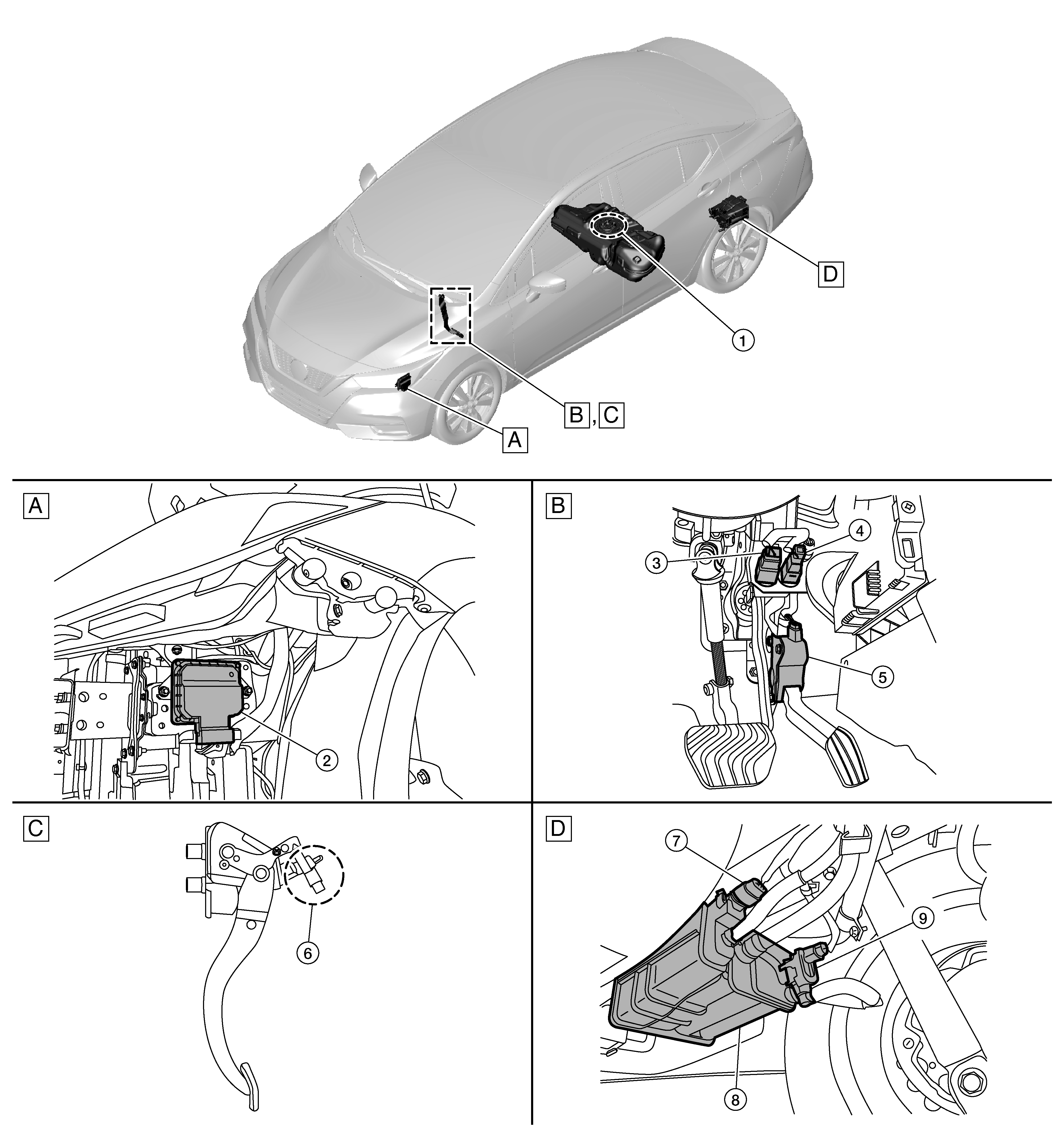

Body Compartment
|
|
Left front of vehicle |
|
Pedal area |
|
Pedal area |
|
|
Rear under body |
|
No. |
Component |
Function |
|
|
Fuel level sensor unit and fuel pump |
Refer to Exploded View for detailed installation location. |
|
|
Electric intake valve timing control module |
|
|
|
Stop lamp switch |
|
|
|
Brake pedal position switch |
|
|
|
Accelerator pedal position sensor |
|
|
|
Clutch pedal position switch |
|
|
|
EVAP control system pressure sensor |
|
|
|
EVAP canister |
|
|
|
EVAP canister vent control valve |
