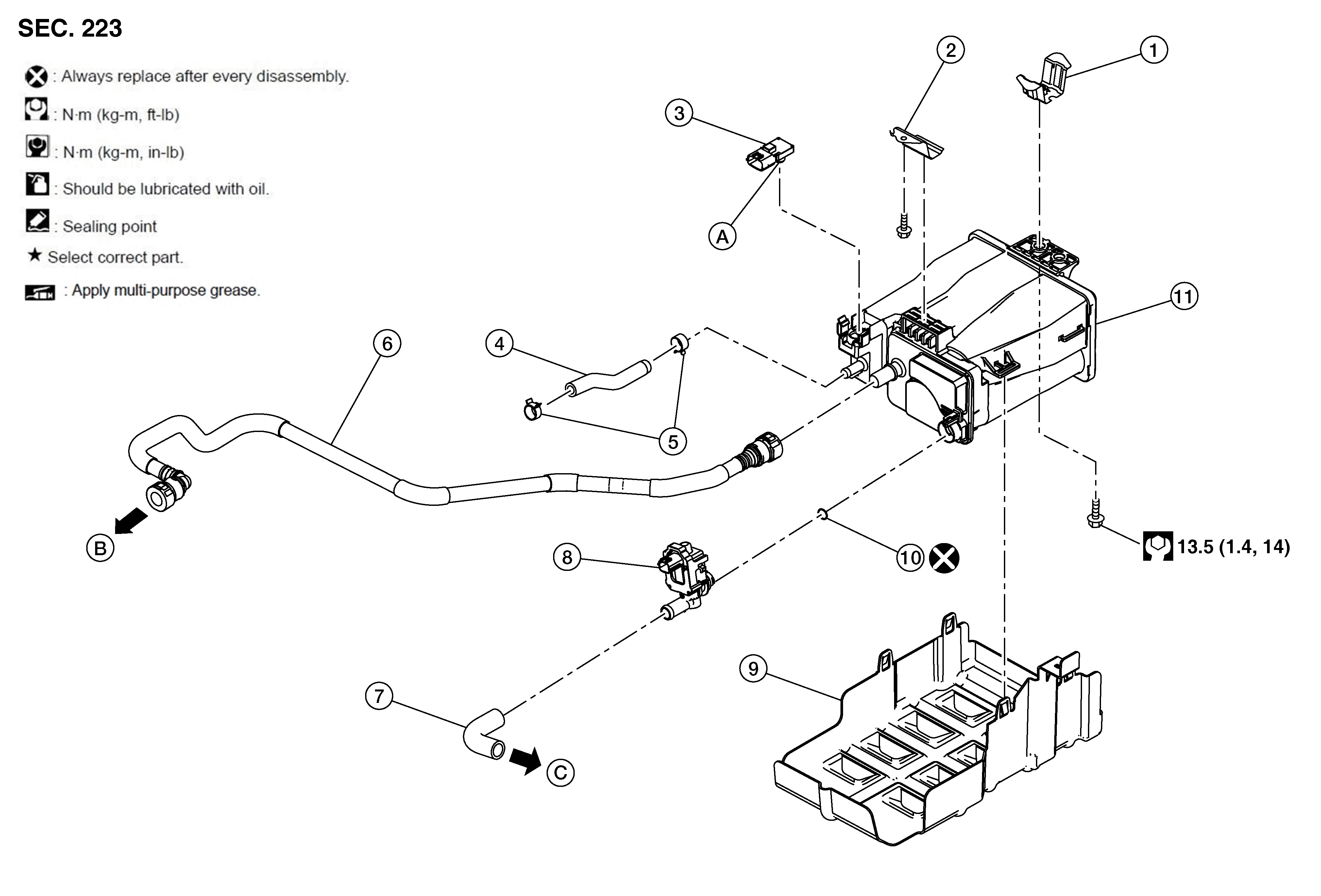

Exploded View

1.

EVAP canister rear bracket

2.

EVAP canister front bracket

3.

EVAP control system pressure sensor (with O-ring)

4.

EVAP canister purge hose

5.

Clamp

6.

EVAP vent line

7.

EVAP canister vent control hose

8.

EVAP canister vent control valve

9.

EVAP canister cover

10.

O-ring

11.

EVAP canister

A.

O-ring

B.

To fuel tank. Refer to Exploded View .

C.

To EVAP canister vent control valve hose connector. Refer to Exploded View .

Pawl
