Disassembly and Assembly: Disassembly
NOTE:
Before disassembly, note the proper placement of the wires to the correct terminals and correct wire routing to the terminals.

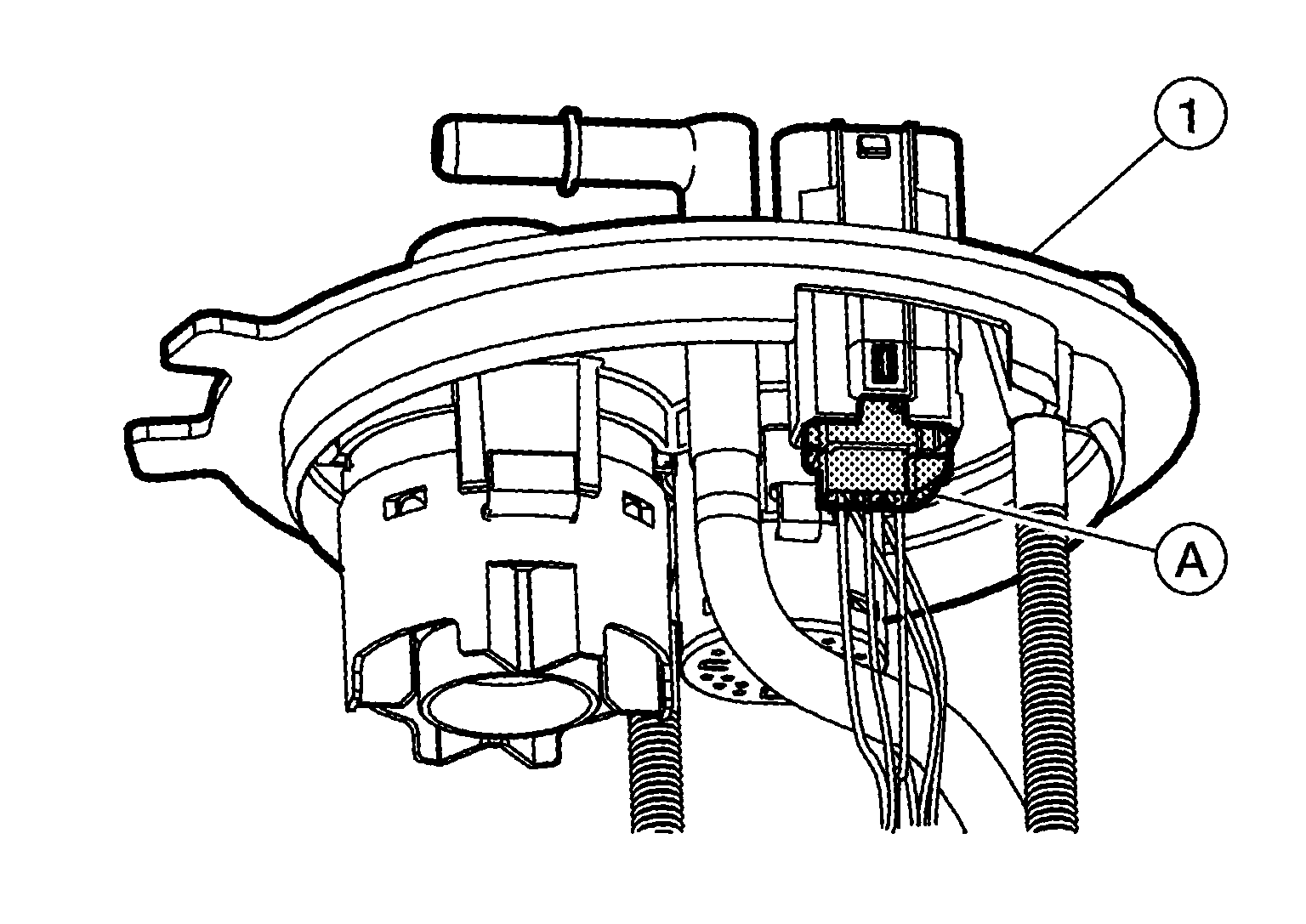

- Disconnect harness connector (A) from fuel level sensor unit, fuel filter and fuel pump assembly (1).
 Courtesy of NISSAN NORTH AMERICA, INC.
|

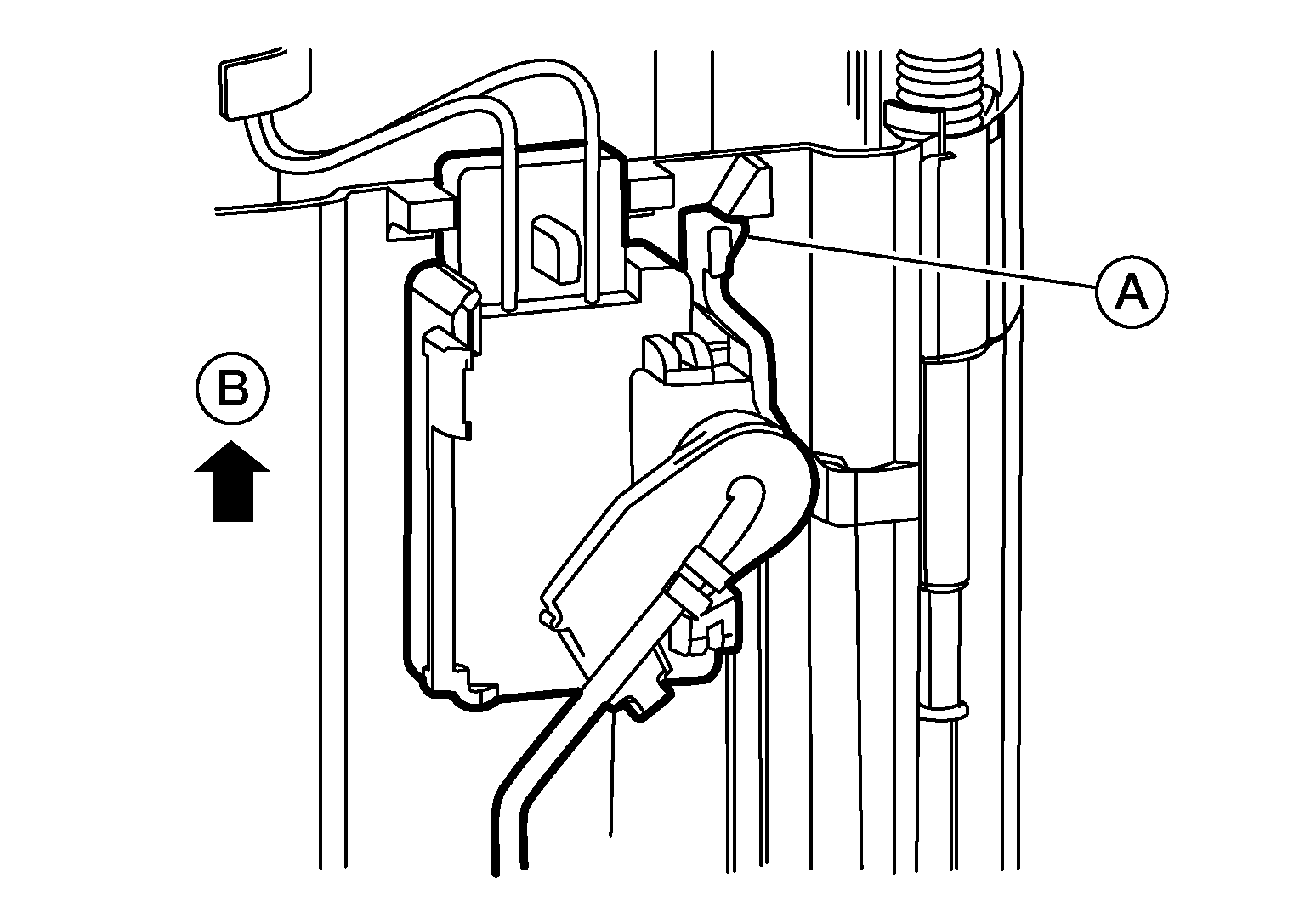

- Release tab (A) and slide fuel level sensor up (B) to remove.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
CAUTION:
- Be careful not to damage the fuel level sensor unit.
- Do not disassemble fuel pump.
