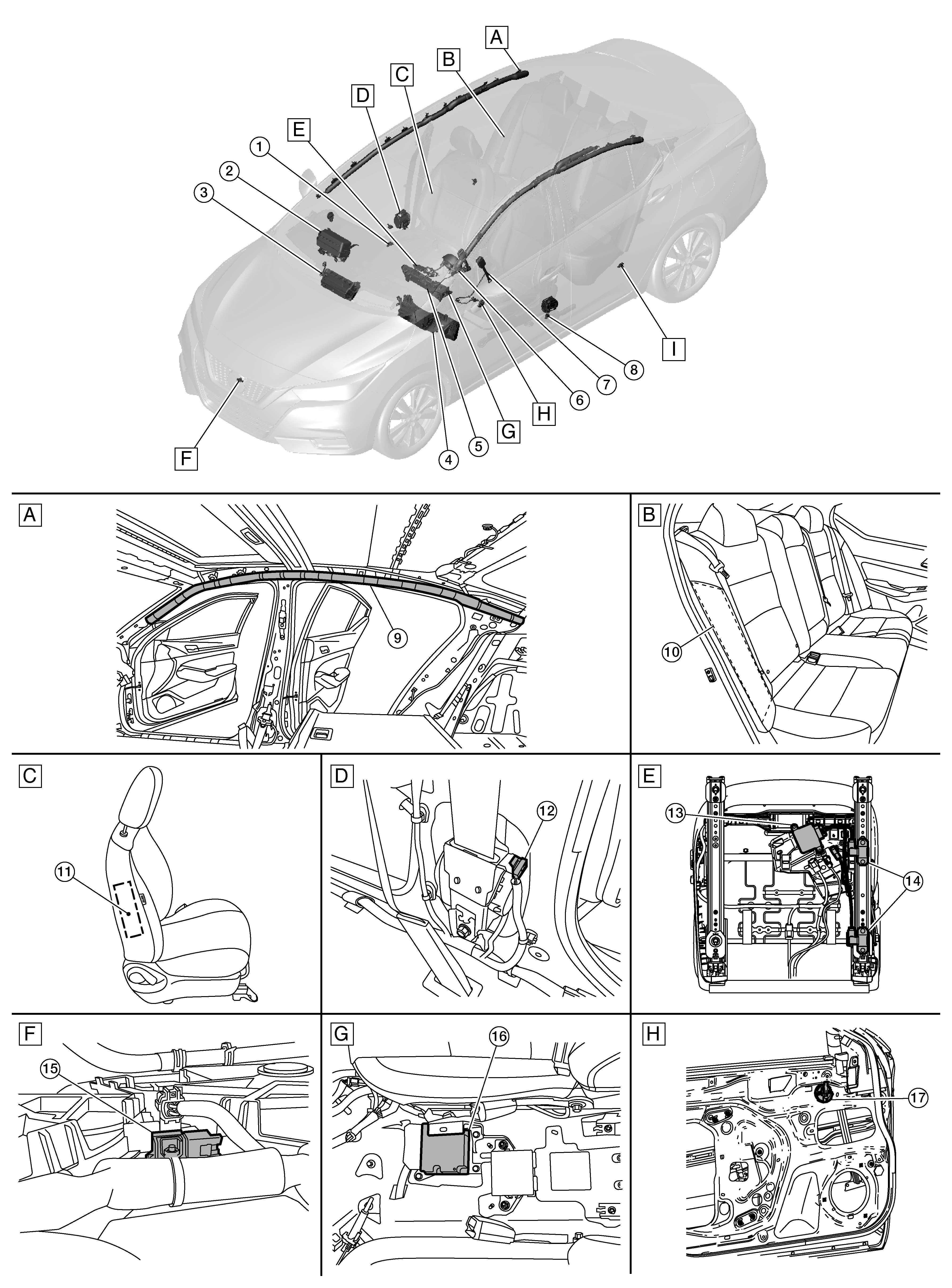

Component Location

A.

Right side of roof line

(view with headliner removed)

B.

Right of rear passenger seat

C.

Front passenger seat

(view with front passenger seat removed)

D.

Right of front passenger seat

(view with the lower B-pillar finisher removed)

E.

Bottom of front passenger seat

(view with front passenger seat removed)

F.

Radiator core support assembly

G.

Between driver and passenger seat

(view with center console removed)

H.

Driver door area

(view with front door finisher LH removed)

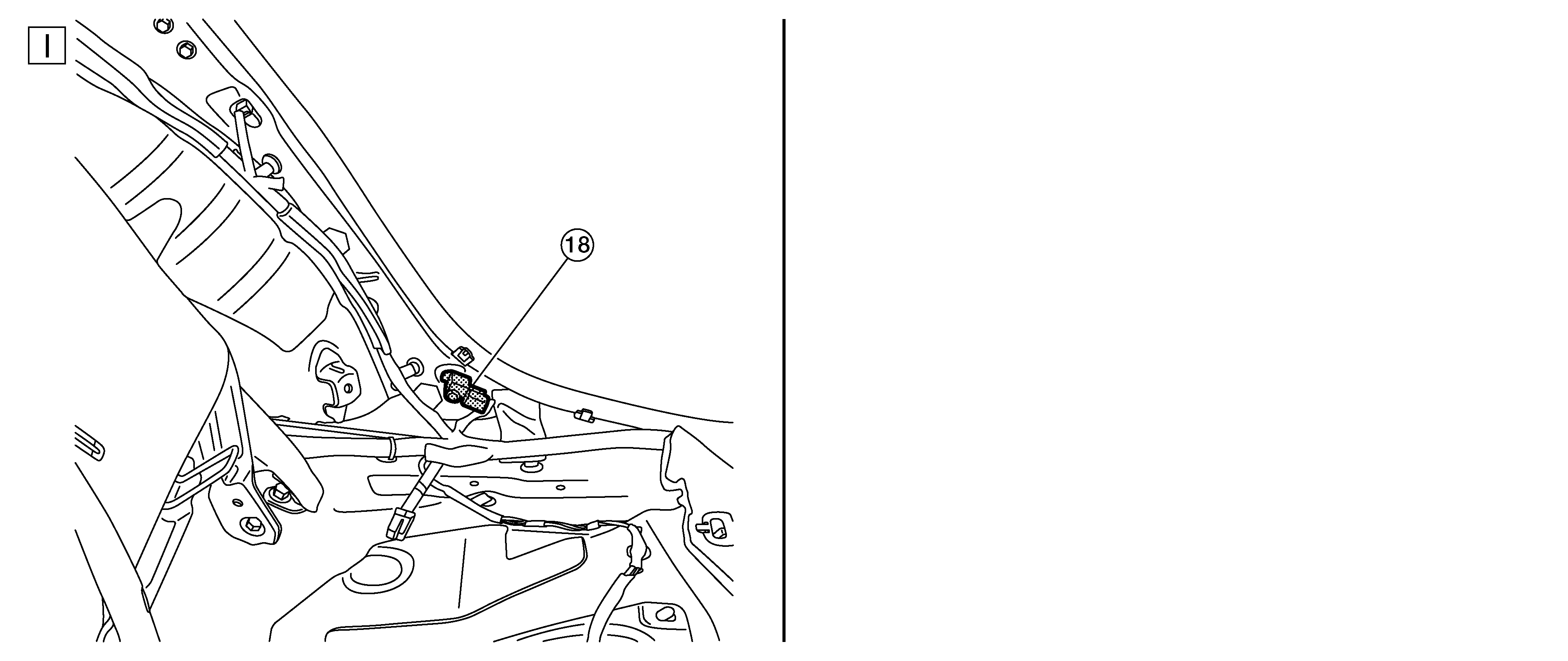

I.

Left of rear passenger seat

(view with lower C-pillar finisher removed)

No.

Component

Function

1.

Front passenger air bag off indicator

Refer to Front Passenger Air Bag Off Indicator .

2.

Front passenger air bag module

Refer to Front Passenger Air Bag Module .

3.

Knee air bag module RH

Refer to Knee Air Bag Module .

4.

Knee air bag module LH

5.

Combination meter

Displays air bag and seat belt information to the driver.

6.

Driver air bag module

Refer to Driver Air Bag Module .

7.

Seat belt buckle switch LH (RH similar)

Refer to Seat Belt Buckle Switch .

8.

Side air bag satellite sensor LH (RH similar)

Refer to Side Air Bag Satellite Sensor .

9.

Side curtain air bag module RH (LH similar)

Refer to Side Curtain Air Bag Module .

10.

Rear side air bag module RH (LH similar)

Refer to Rear Side Air Bag Module .

11.

Front side air bag module RH (LH similar)

Refer to Front Side Air Bag Module .

12.

Front RH seat belt pre-tensioner (LH similar)

Refer to Front Seat Belt Pre-tensioner .

13.

Occupant classification system control unit

Refer to System Description .

14.

Occupant classification system sensors

Refer to System Description .

15.

Crash zone sensor

Refer to Crash Zone Sensor .

16.

Air bag diagnosis sensor unit

Refer to Air Bag Diagnosis Sensor Unit .

17.

Front door satellite sensor LH (RH similar)

Refer to Front Door Satellite Sensor .

18.

Rear side air bag satellite sensor LH (RH similar)

Refer to Rear Side Air Bag Satellite Sensor .
