Knee Air Bag Module

The knee air bag modules are single stage. The knee air bag module LH is located in the instrument panel assembly below the steering wheel. The knee air bag module RH is located in the instrument panel below the glove box. They operate with the SRS system in a frontal collision exceeding a specified level.

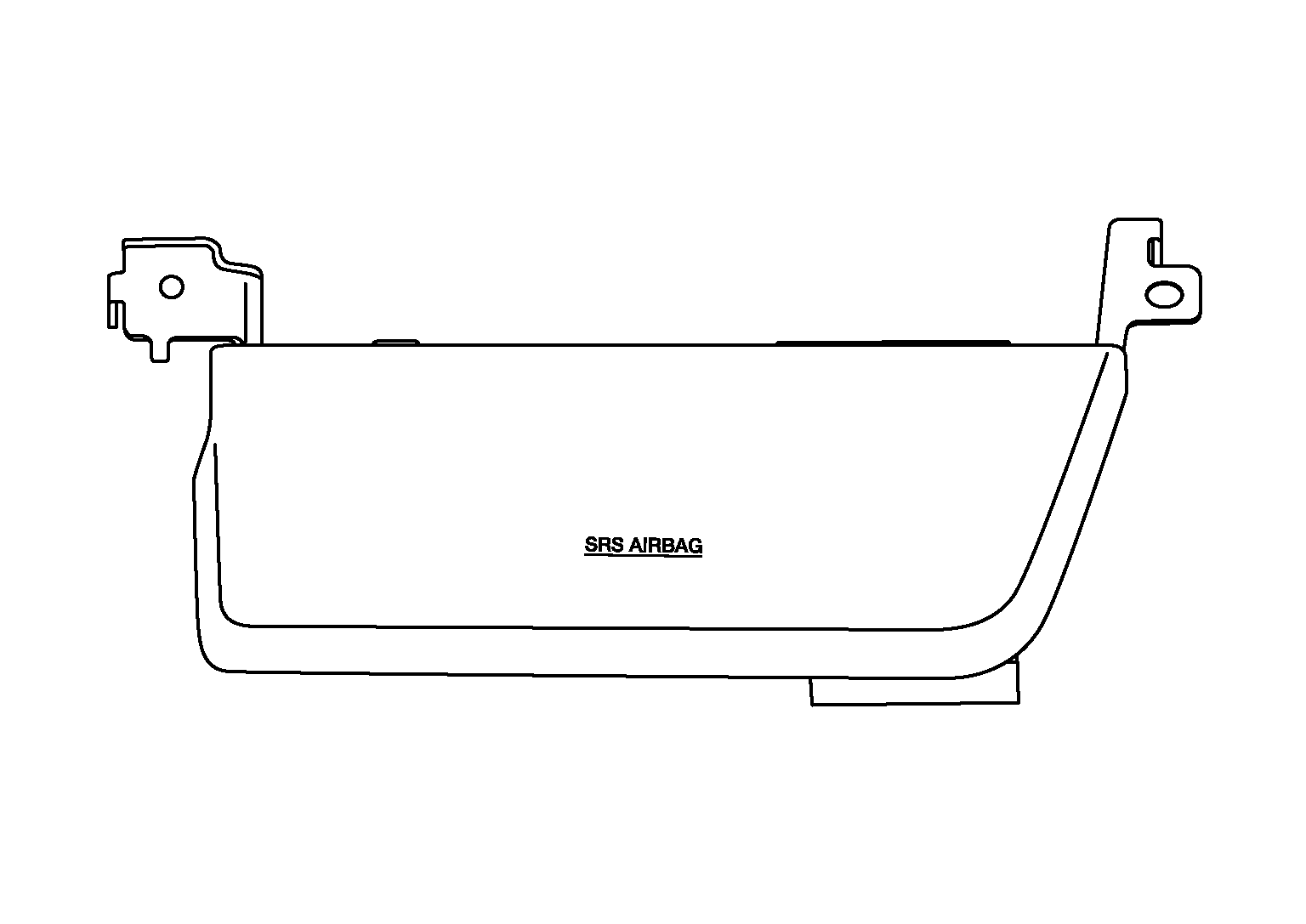

Fig 1: Knee Air Bag Module LH

Courtesy of NISSAN NORTH AMERICA, INC.

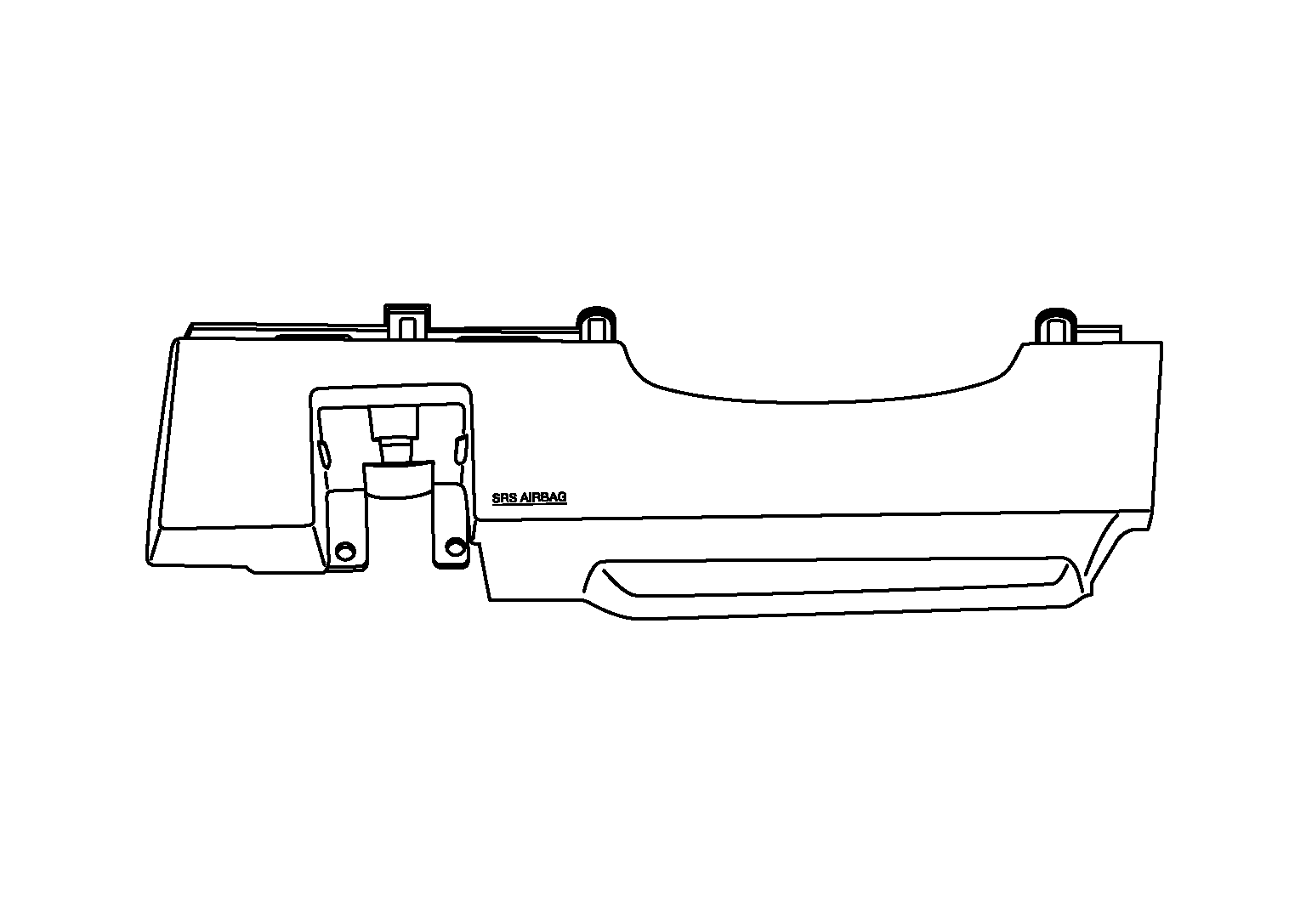

Fig 2: Knee Air Bag Module RH

Courtesy of NISSAN NORTH AMERICA, INC.
