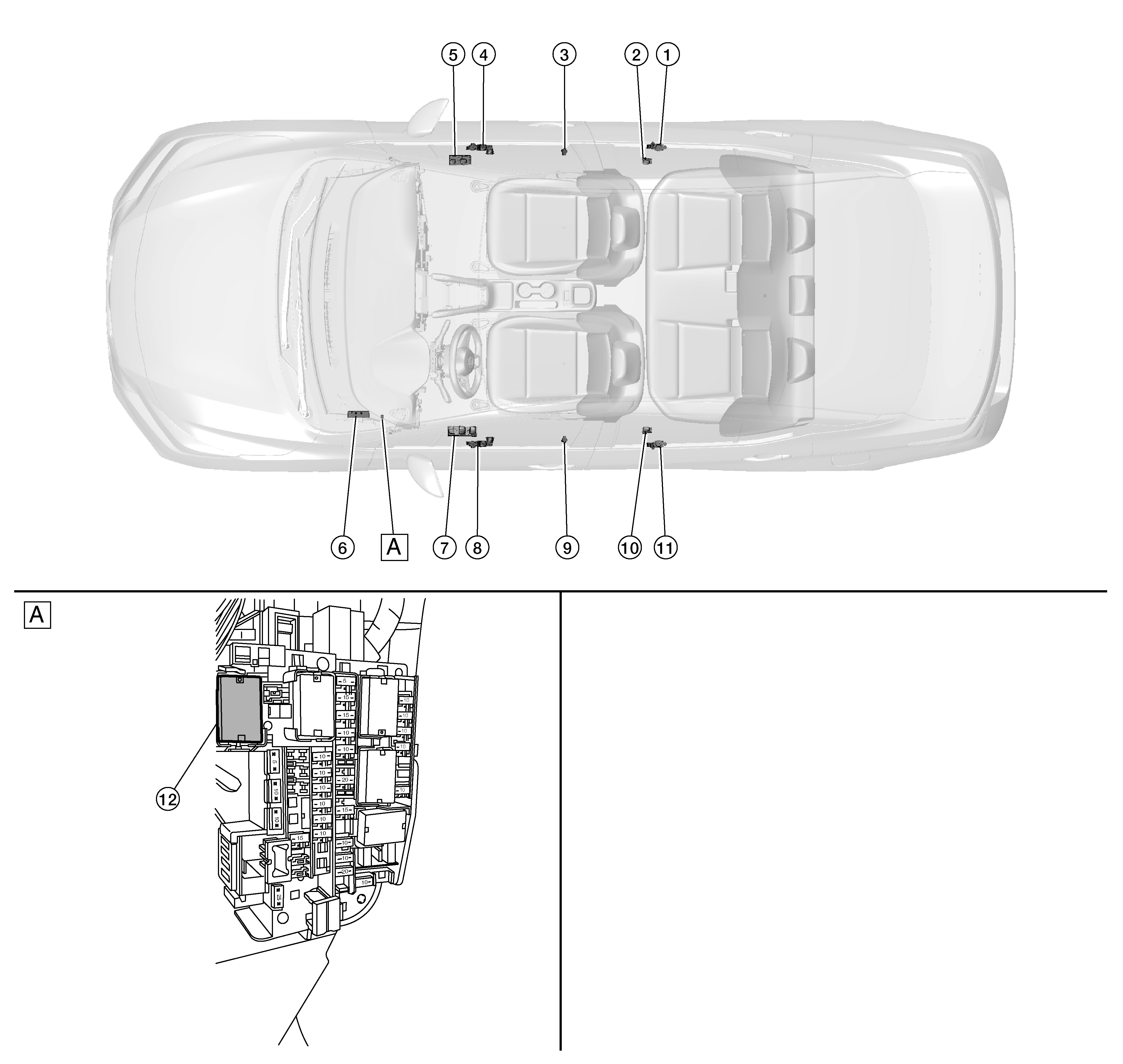

Component Location

A.

View with front kick plate LH removed

No.

Component

Function

1.

Rear power window motor RH

Refer to Power Window Motor .

2.

Rear power window switch RH

Refer to Rear Power Window Switch LH/RH .

3.

Front door switch RH

Inputs door open/close condition to BCM.

Refer to Front Door Switch .

4.

Front power window motor RH

Refer to Power Window Motor .

5.

Power window and door lock/unlock switch RH

Refer to Power window and door lock/unlock switch RH .

6.

BCM

• Supplies power supply to power window relay.
• Controls retained power.

Refer to Component Location for detailed component location.

7.

Main power window and door lock/unlock switch

Refer to Main Power Window And Door Lock/Unlock Switch .

8.

Front power window motor LH

Refer to Power Window Motor .

9.

Front door switch LH

Inputs door open/close condition to BCM.

Refer to Front Door Switch .

10.

Rear power window switch LH

Refer to Rear Power Window Switch LH/RH .

11.

Rear power window motor LH

Refer to Power Window Motor .

12.

Power window relay

Operates the power window system with the control signal from the BCM.
