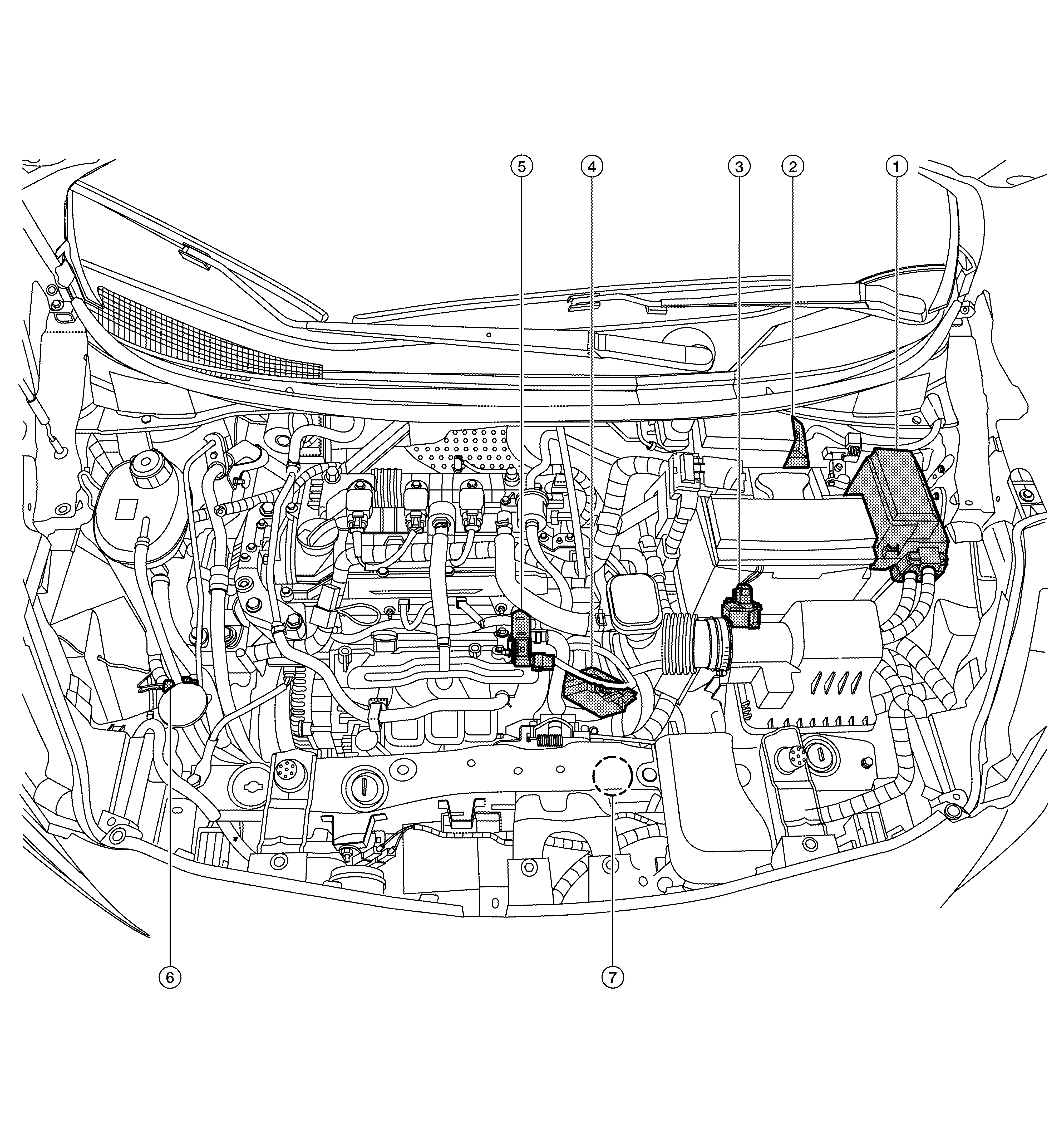

Engine Room Compartment
|
No. |
Component |
Function |
|
|
IPDM E/R |
IPDM E/R activates the internal control circuit to perform the relay ON-OFF control according to the input signals from various sensors and the request signals received from control units via CAN communication. Refer to Component Location for detailed installation location. |
|
|
ECM |
|
|
|
Mass air flow sensor |
|
|
|
Electric throttle control actuator |
|
|
|
EVAP canister purge volume control solenoid valve |
|
|
|
Refrigerant pressure sensor |
Refer to Component Location for detailed installation location. |
|
|
Cooling fan motor |
