Engine Control System (2 Of 2)
>>
Removal And Installation
>>
ECM
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exploded View

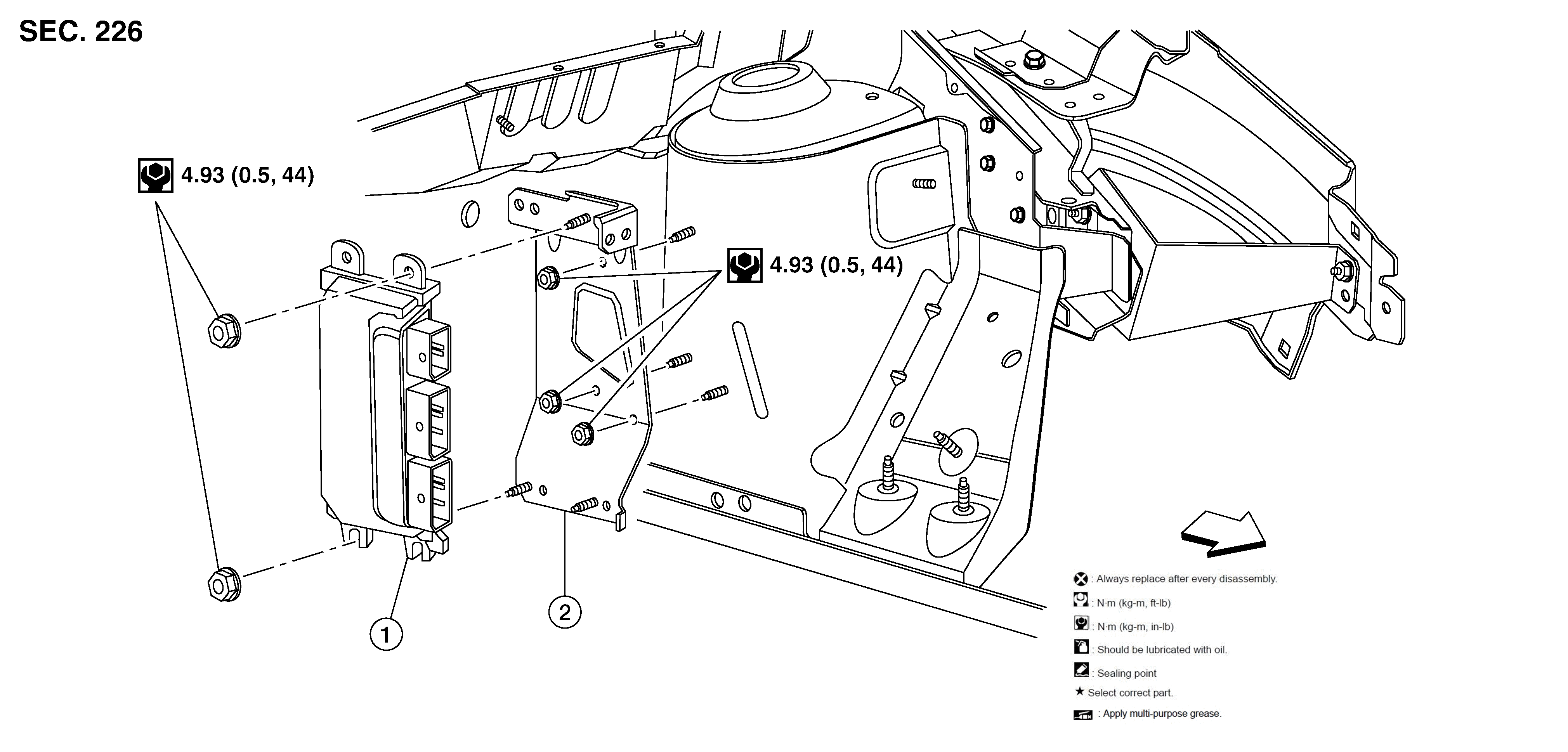

Fig 1: ECM With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
ECM
2.
ECM bracket
Front
Courtesy of NISSAN NORTH AMERICA, INC.
