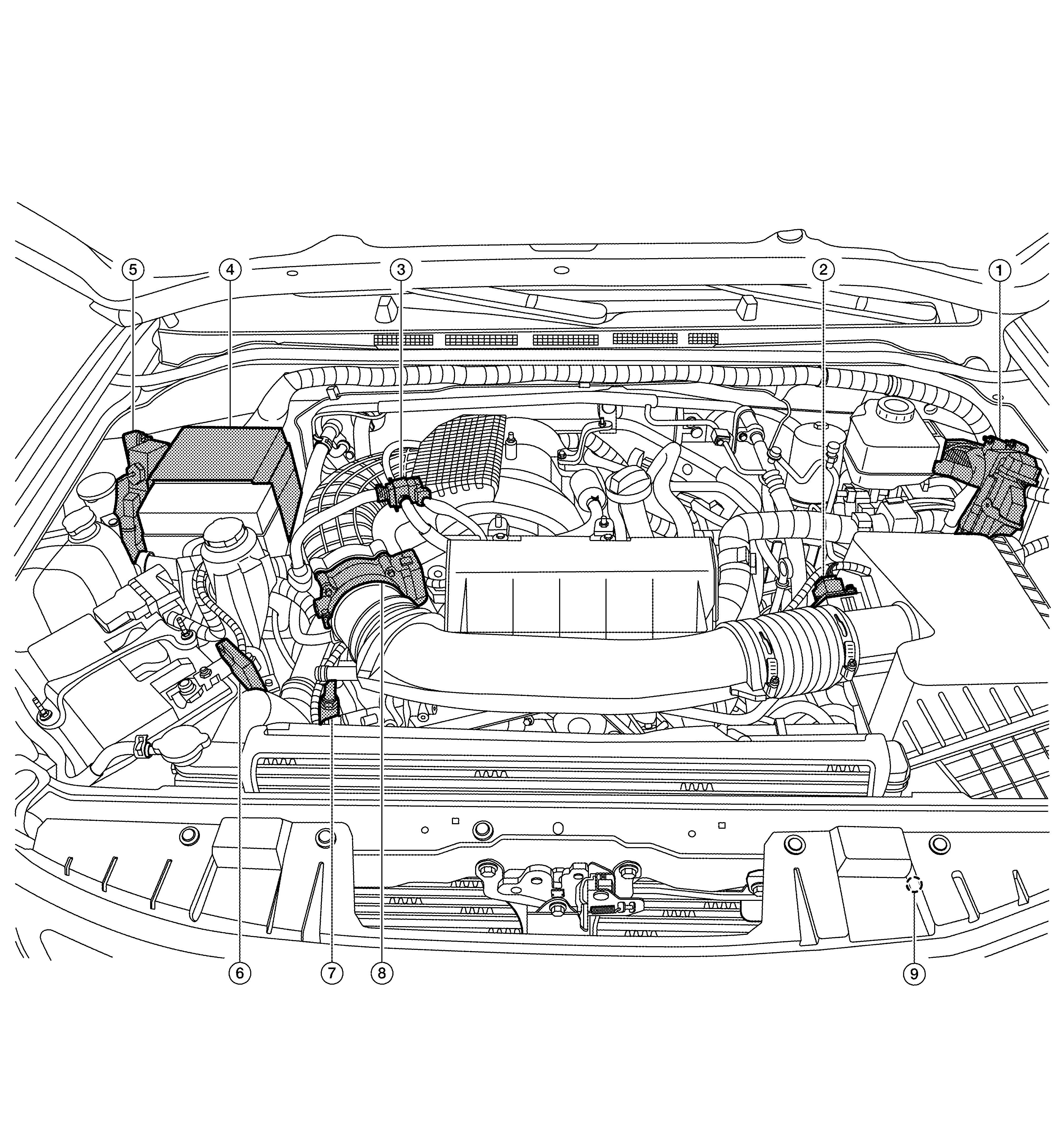

Engine Room Component
|
No. |
Component |
Function |
|
|
ECM (with barometric pressure sensor) |
|
|
|
Mass air flow sensor (with intake air temperature sensor) |
|
|
|
EVAP canister purge volume control solenoid valve |
|
|
|
IPDM E/R |
IPDM E/R controls the internal relays and the actuators. When CAN communication with ECM is impossible, IPDM E/R performs fail-safe control. |
|
|
Electric intake valve timing control module |
|
|
|
Battery current sensor (with battery temperature sensor) |
|
|
|
Power steering pressure sensor |
|
|
|
Electric throttle control actuator |
|
|
|
Refrigerant pressure sensor |
