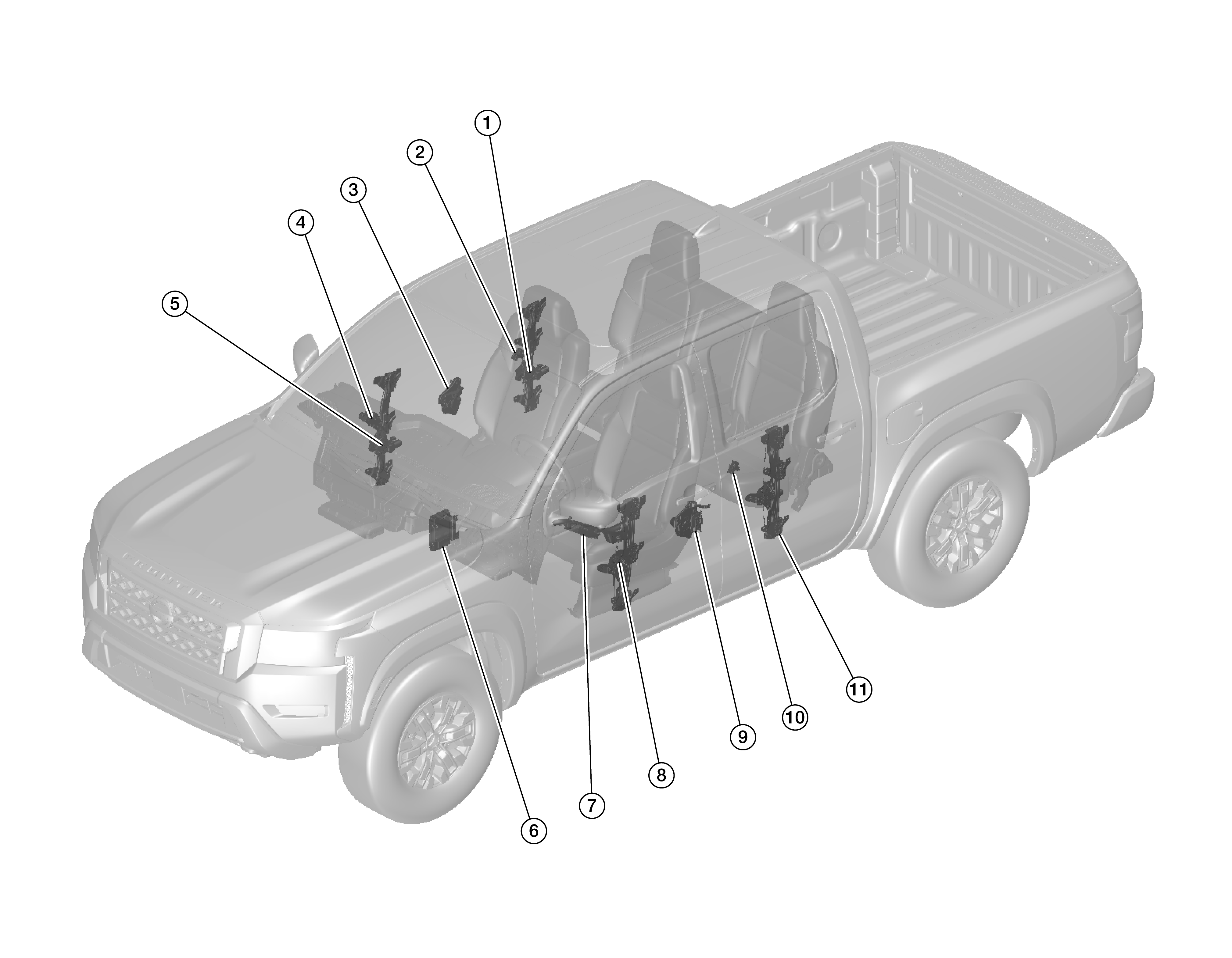

Component Location - Crew Cab

No.

Component

Function

1.

Rear power window motor RH

Refer to Rear Power Window Motor .

2.

Rear power window switch RH

Sends signal to rear power window motor RH for UP/DOWN operation.

3.

Front door lock assembly RH (door switch)

Refer to Removal and Installation .

4.

Front power window switch RH

Refer to Power Window And Door Lock/Unlock Switch RH .

5.

Front power window motor RH

Refer to Front Power Window Motor .

6.

BCM (Body Control Module)

• Supplies power to the window switches.
• Controls retained power.

Refer to Component Location for detailed component location.

7.

Main power window and door lock/unlock switch

Refer to Main Power Window and Door Lock/unlock Switch .

8.

Front power window motor LH

Refer to Front Power Window Motor .

9.

Front door lock assembly LH (door switch)

Refer to Removal and Installation .

10.

Rear power window switch LH

Sends signal to rear power window motor RH for UP/DOWN operation.

11.

Rear power window motor LH

Refer to Rear Power Window Motor .
