Exploded View

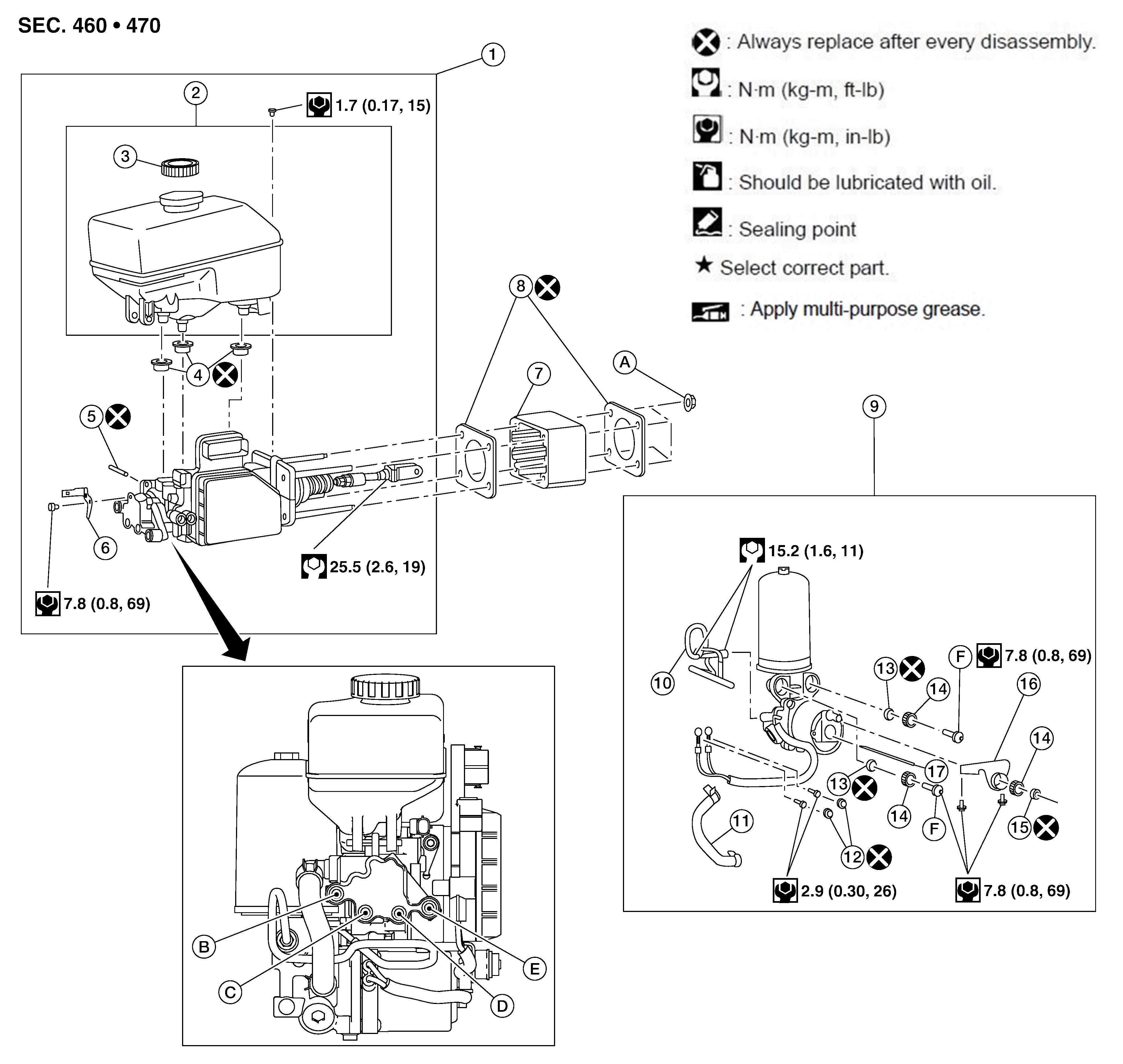

Fig 1: ABS Actuator And Electric Unit (Control Unit) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Master cylinder assembly	2.	Reservoir tank assembly	3.	Reservoir cap
4.	Reservoir tank seals	5.	Stopper pin	6.	Reservoir tank connector bracket
7.	Spacer	8.	Gaskets	9.	Hydraulic booster assembly
10.	Brake tube	11.	Brake hose	12.	Grommets
13.	Collars	14.	Bushings	15.	Cap
16.	Brake booster bracket	17.	Pin	A.	Nut. Refer to Exploded View .
B.	To rear (RH) brake caliper. Refer to Exploded View .	C.	To front (RH) brake caliper. Refer to Exploded View .	D.	To front (LH) brake caliper. Refer to Exploded View .
E.	To rear (LH) brake caliper. Refer to Exploded View .	F.	Pin
