Exploded View

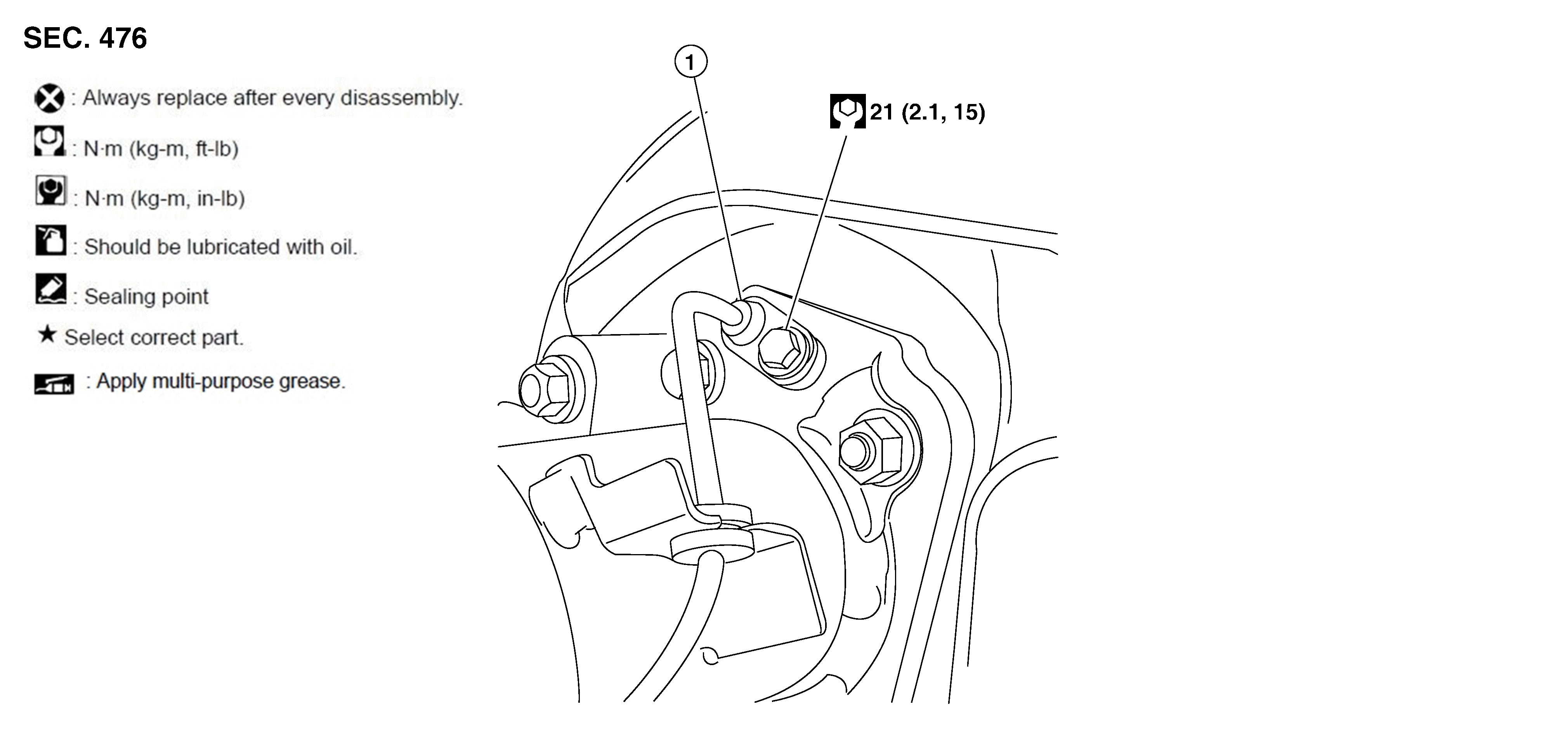

Fig 1: Rear Wheel Sensor With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Rear wheel sensor
Courtesy of NISSAN NORTH AMERICA, INC.
