Inspection After Installation
- Check that the accelerator pedal moves smoothly within the specified range.

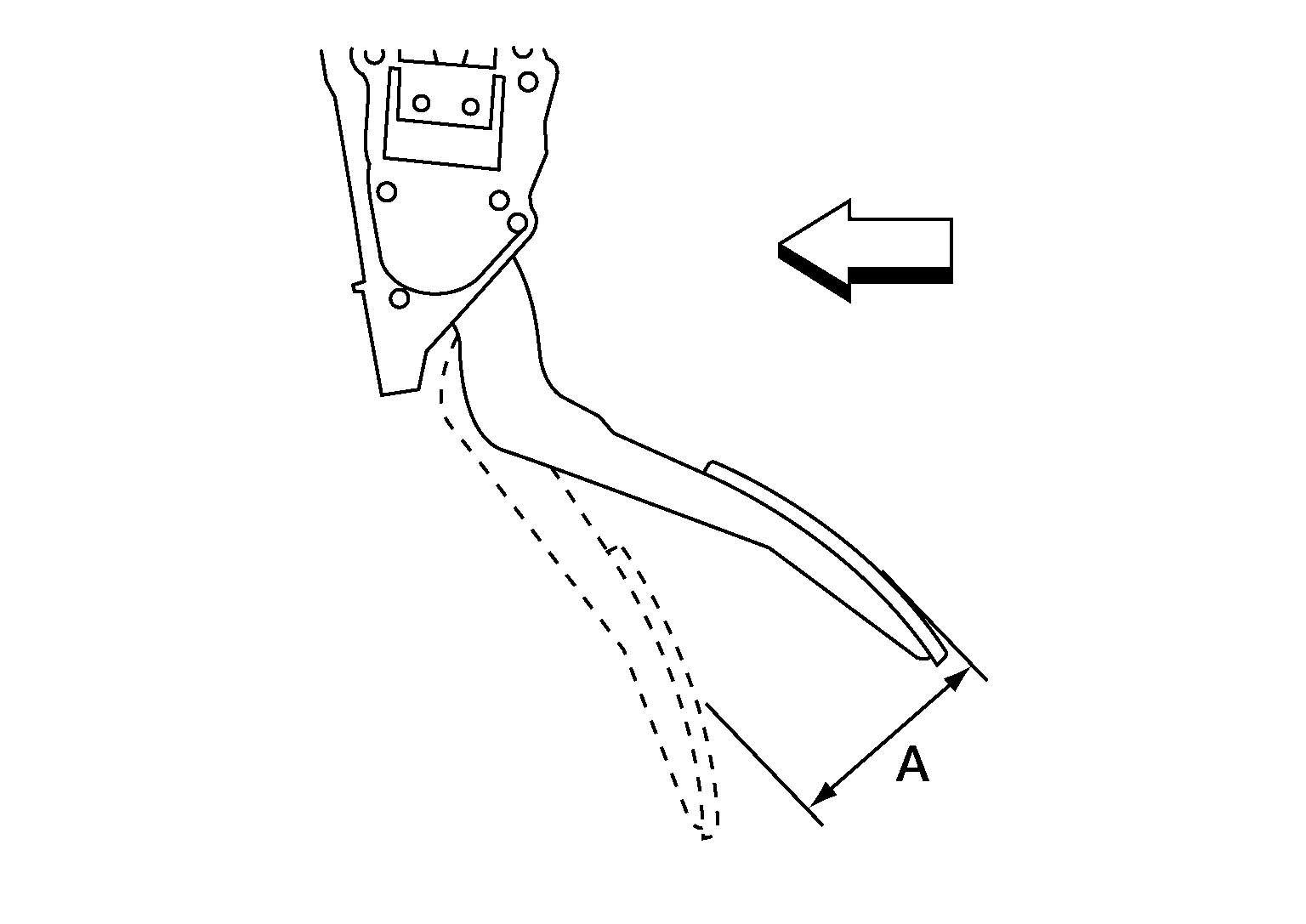

Accelerator pedal - total pedal applied stroke (A)
: Refer to Accelerator Control .
- Check that the accelerator pedal smoothly returns to the original position.
- Perform an electrical inspection of the accelerator pedal position sensor. Refer to Component Inspection (Throttle Position Sensor)
.CAUTION:
- The accelerator pedal shall operate smoothly without catching, the pedal operating force is released. The pedal shall return smoothly to the fully raised position. The spring shall be free from damage.
- If the harness connector of the accelerator pedal position sensor is disconnected, perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING". Refer to Description .
