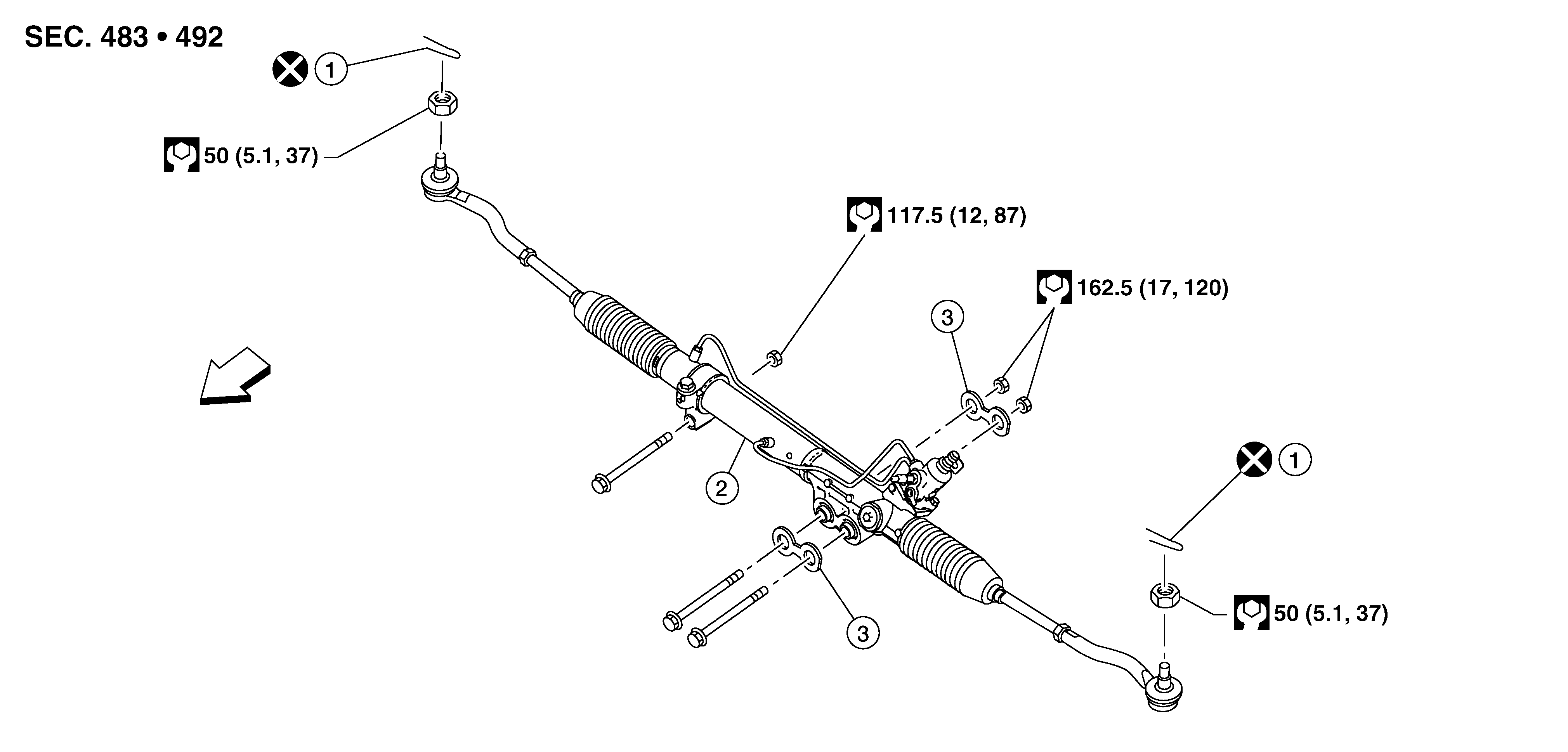

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Cotter pin
2.
Power steering gear and linkage assembly
3.
Insulator
Front
