Exploded View

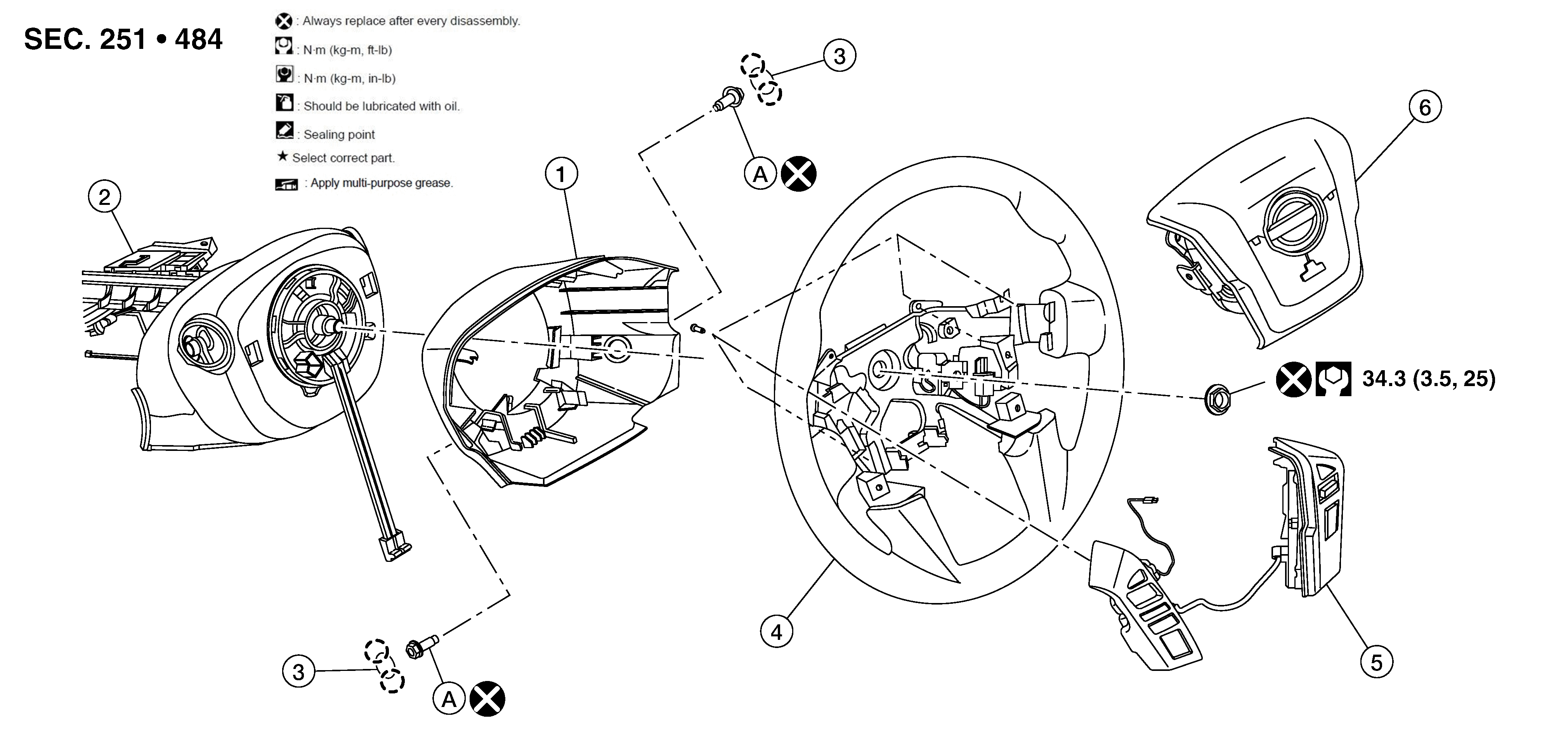

Fig 1: Steering Wheel With Torque Specifications
GNSAWGIA0158Z-158Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering wheel cover

2.

Steering column

3.

Side lid

4.

Steering wheel

5.

ICC steering switches

6.

Driver air bag module

A.

Refer to Installation .

SYMBOL

Pawl
