Vehicle Compartment

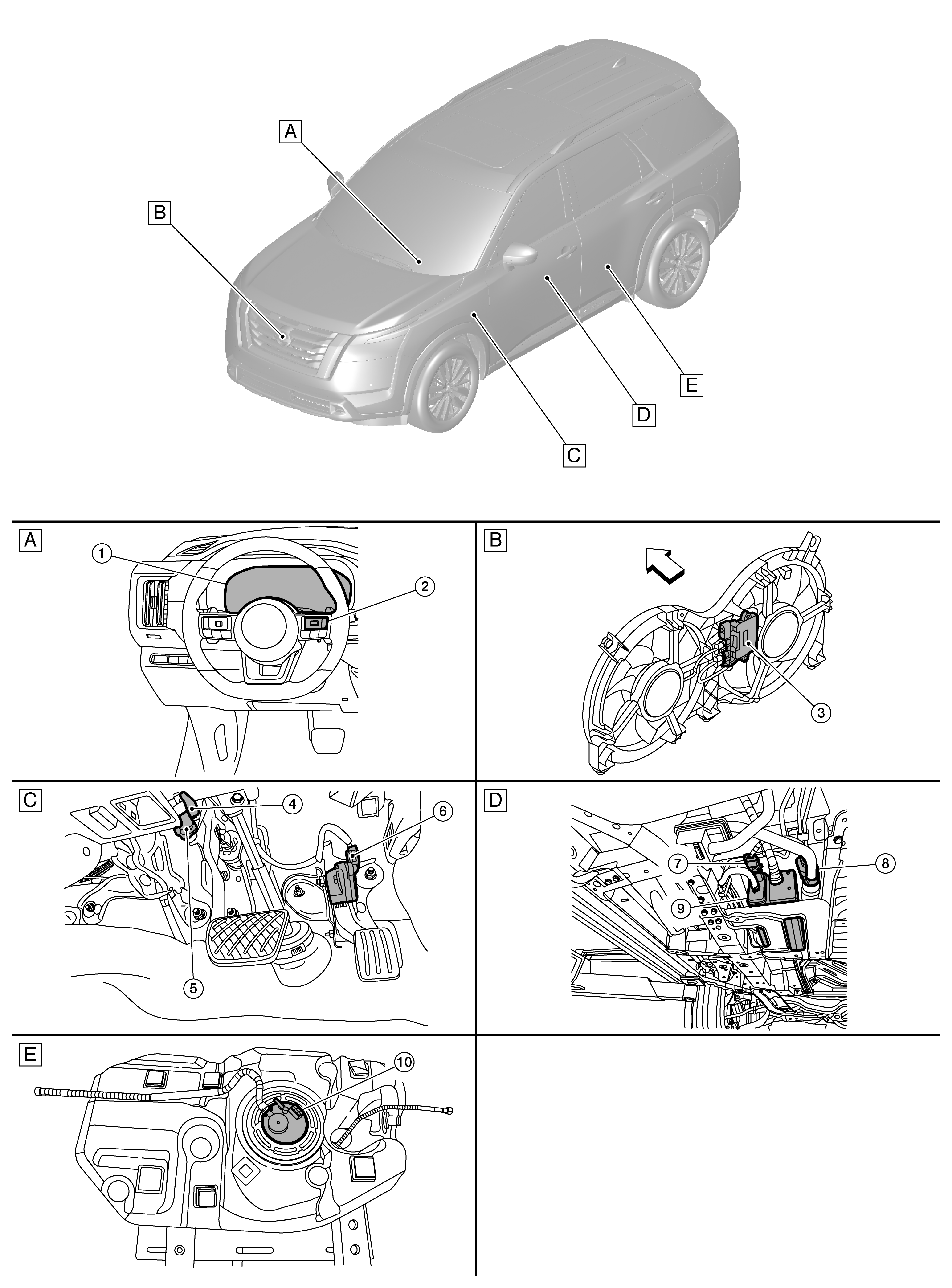

GNSALBIA0993Z-993Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Instrument panel periphery

SYMBOL

Front side of engine room

SYMBOL

Pedal periphery

SYMBOL

Undercarriage center area

SYMBOL

Under of rear seat

SYMBOL

Vehicle front

SYMBOL

Combination meter

SYMBOL

ASCD/ICC steering switch

SYMBOL

Cooling fan control module

SYMBOL

Brake pedal position switch

SYMBOL

Stop lamp switch

SYMBOL

Accelerator pedal position sensor

SYMBOL

EVAP control system pressure sensor

SYMBOL

EVAP canister vent control valve

SYMBOL

EVAP canister

SYMBOL

Fuel level sensor unit and fuel pump (with fuel tank temperature sensor)
