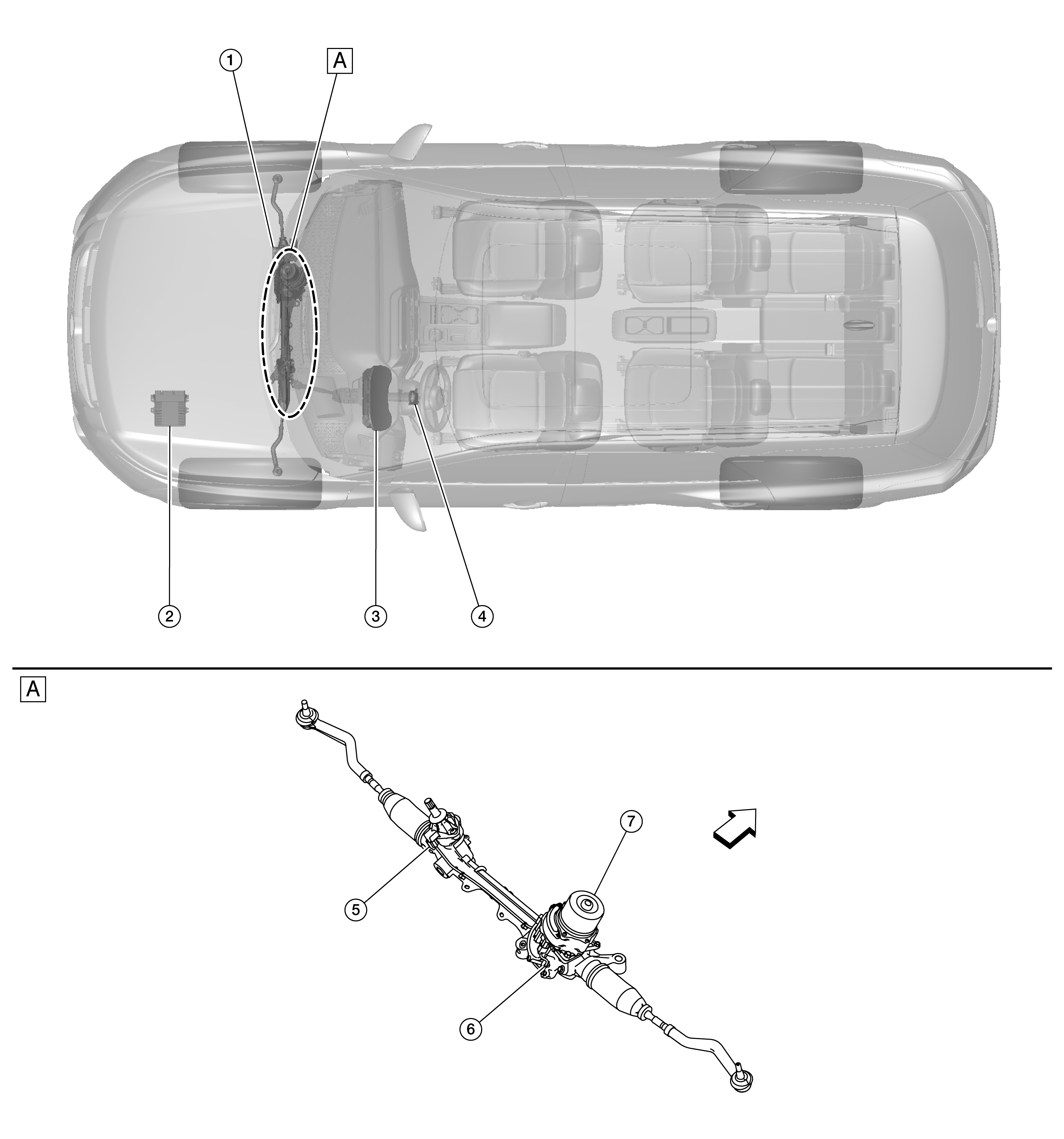

Component Location

Steering gear assembly

(view with steering gear assembly removed)

: Vehicle front

No.

Component

Function

1.

ABS (Anti-lock Braking System) actuator and electric unit (control unit)

Transmits the vehicle speed signal (ABS) to EPS control unit via CAN communication.

Refer to Component Location for detailed component location.

2.

ECM (Engine Control Module)

• Transmits the engine status signal to EPS control unit via CAN communication.
• Receives the battery supply current signal from EPS control unit via CAN communication.

Refer to Component Location for detailed component location.

3.

Combination meter

(Power steering warning lamp)

Transmits the vehicle speed signal (Meter) to EPS control unit via CAN communication.

Turns ON the power steering warning lamp according to the signal from the EPS control unit via CAN communication.

For power steering warning lamp, refer to Warning Lamp/Indicator Lamp .

Refer to Refer to Component Location (7 inch information display) or Component Location (Full TFT meter) for detailed component location. for detailed component location.

4.

Steering angle sensor

Transmits the steering angle sensor signal to EPS control unit via CAN communication.

Refer to Component Location for detailed component location.

5.

Steering gear assembly

Torque sensor

Refer to Steering Gear Assembly .

6.

EPS (electric power steering) control unit

7.

EPS motor
