Engine Compartment

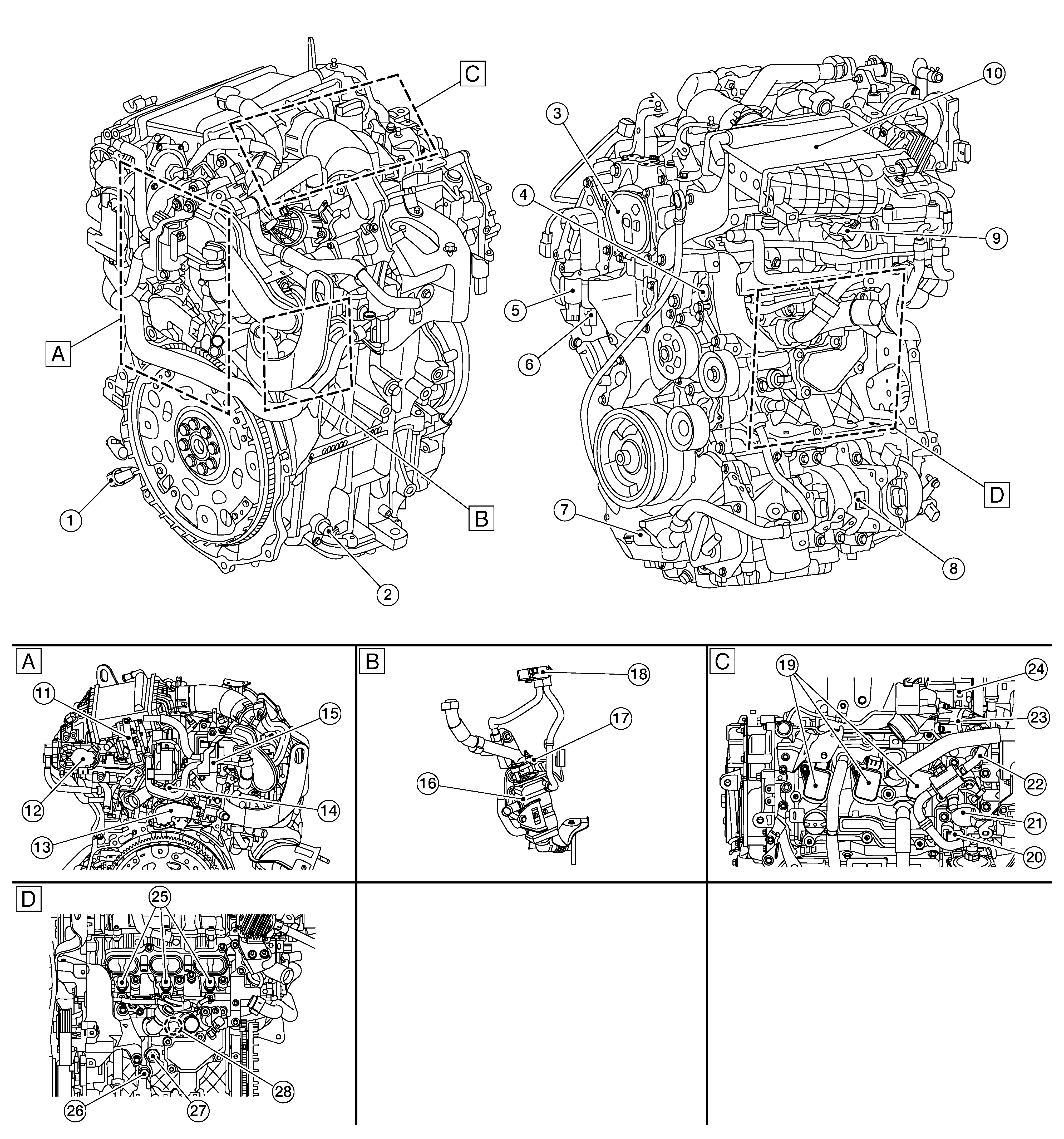

JAPAN PRODUCTION
|
|
Rear view of the engine |
|
Side view of the engine |
|
Top view of the engine |
|
|
Side view of the engine (view with intake manifold is removed) |
|
|
Crankshaft position sensor |
|
Engine oil level sensor |
|
Electric intake valve timing control actuator |
|
|
Fuel rail pressure sensor |
|
Exhaust valve timing control solenoid valve |
|
Exhaust valve timing intermediate lock control solenoid valve |
|
|
Engine oil pressure control solenoid valve |
|
VCR actuator |
|
Manifold absolute pressure (MAP) sensor |
|
|
Water charge air cooler |
|
EVAP canister electric purge pump |
|
Electric throttle control actuator |
|
|
Multi-way control valve |
|
Engine coolant temperature sensor 1 |
|
EVAP canister purge volume control solenoid valve |
|
|
EGR volume control valve |
|
EGR temperature sensor |
|
EGR differential pressure sensor |
|
|
Ignition coil (with power transistor) |
|
Intake camshaft position sensor |
|
High pressure fuel pump |
|
|
Exhaust camshaft position sensor |
|
Electric wastegate control actuator |
|
Turbocharger bypass control valve |
|
|
Fuel injector |
|
Engine oil temperature sensor |
|
Engine oil pressure sensor |
|
|
Knock sensor |

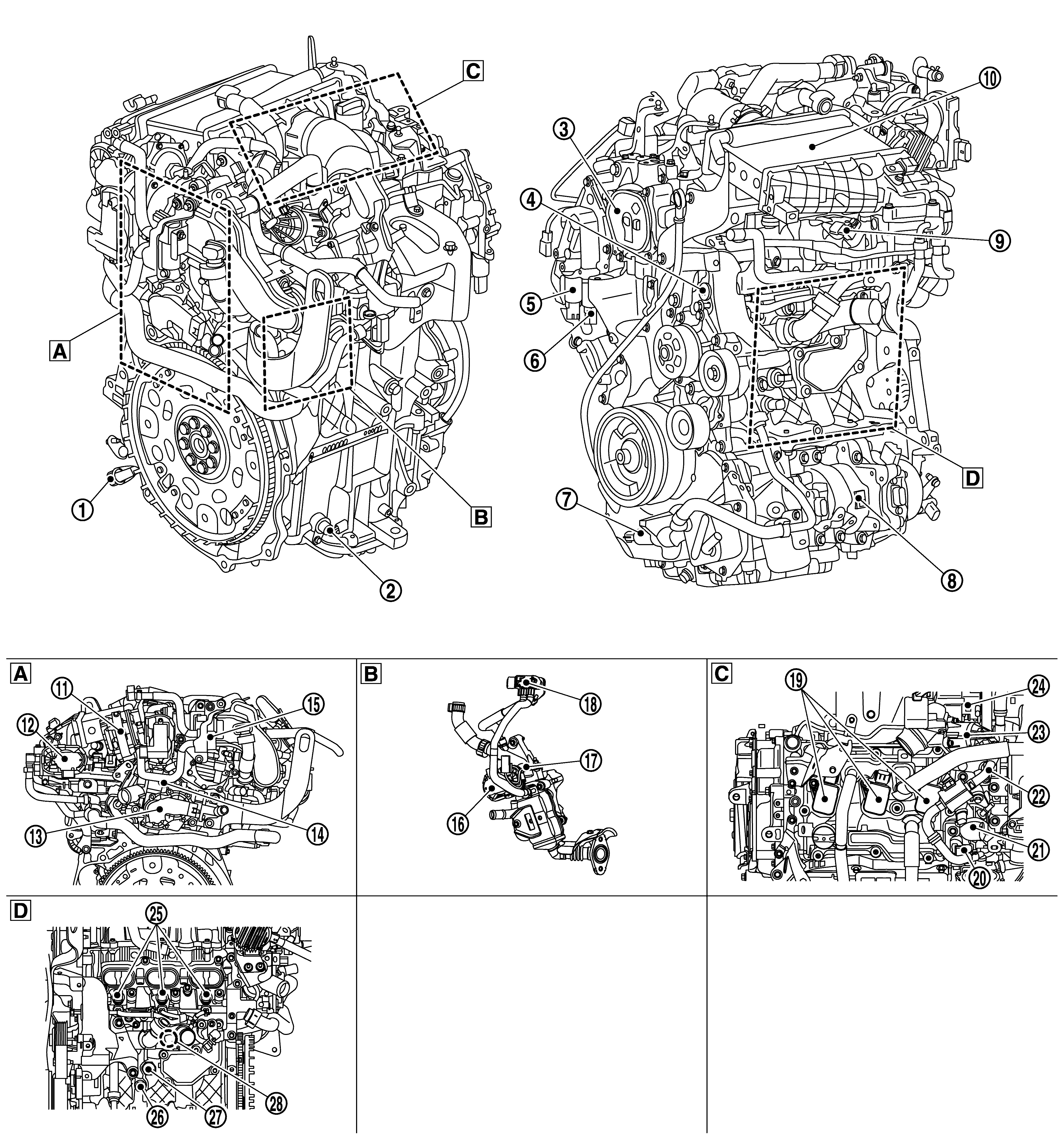

USA PRODUCTION
|
|
Rear view of the engine |
|
Side view of the engine |
|
Top view of the engine |
|
|
Side view of the engine (view with intake manifold is removed) |
|
|
Crankshaft position sensor |
|
Engine oil level sensor |
|
Electric intake valve timing control actuator |
|
|
Fuel rail pressure sensor |
|
Exhaust valve timing control solenoid valve |
|
Exhaust valve timing intermediate lock control solenoid valve |
|
|
Engine oil pressure control solenoid valve |
|
VCR actuator |
|
Manifold absolute pressure (MAP) sensor |
|
|
Water charge air cooler |
|
EVAP canister electric purge pump |
|
Electric throttle control actuator |
|
|
Multi-way control valve |
|
Engine coolant temperature sensor 1 |
|
EVAP canister purge volume control solenoid valve |
|
|
EGR volume control valve |
|
EGR temperature sensor |
|
EGR differential pressure sensor |
|
|
Ignition coil (with power transistor) |
|
Intake camshaft position sensor |
|
High pressure fuel pump |
|
|
Exhaust camshaft position sensor |
|
Electric wastegate control actuator |
|
Turbocharger bypass control valve |
|
|
Fuel injector |
|
Engine oil temperature sensor |
|
Engine oil pressure sensor |
|
|
Knock sensor |
