Engine Room Compartment

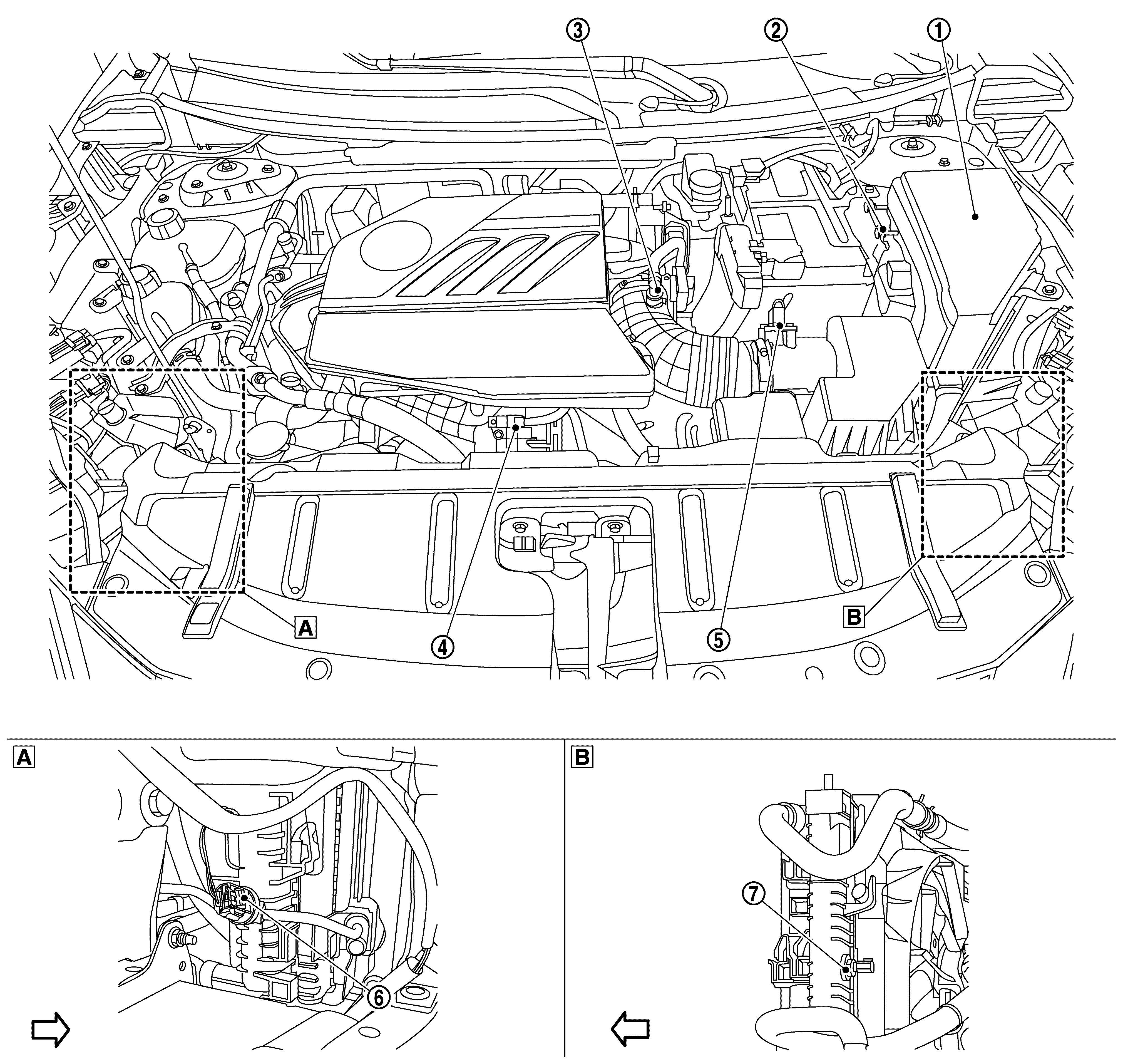

GNSILL0332800Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Right front of vehicle

SYMBOL

Left front of vehicle

SYMBOL

Vehicle front

SYMBOL

IPDM E/R

SYMBOL

ECM

SYMBOL

Admission valve

SYMBOL

Turbocharger boost sensor

(With intake air temperature sensor 2)

SYMBOL

Mass air flow sensor

SYMBOL

Refrigerant pressure sensor

SYMBOL

Engine coolant temperature sensor 2
