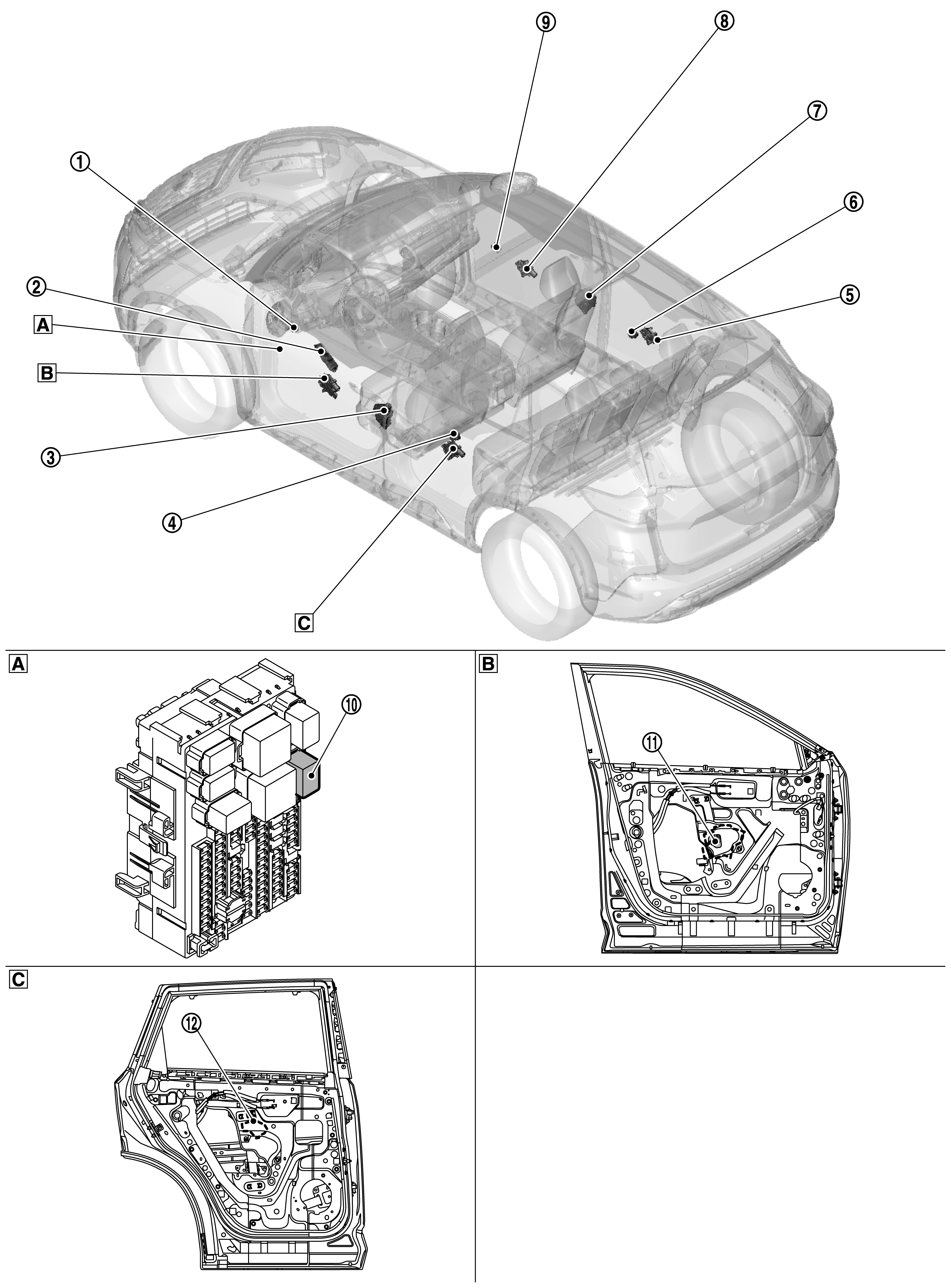

Component Location
|
|
BCM (Body Control Module) Refer to Component Location . |
|
Power window main switch |
|
Front door lock assembly LH (door switch) |
|
|
Rear power window switch LH |
|
Rear power window motor RH |
|
Rear power window switch RH |
|
|
Front door lock assembly RH (door switch) |
|
Front power window motor (passenger side) |
|
Front power window switch (passenger side) |
|
|
Power window relay |
|
Front power window motor (driver side) |
|
Rear power window motor LH |
|
|
Fuse block (J/B) |
|
View with front door finisher removed |
|
View with rear door finisher removed |
