Component Operation

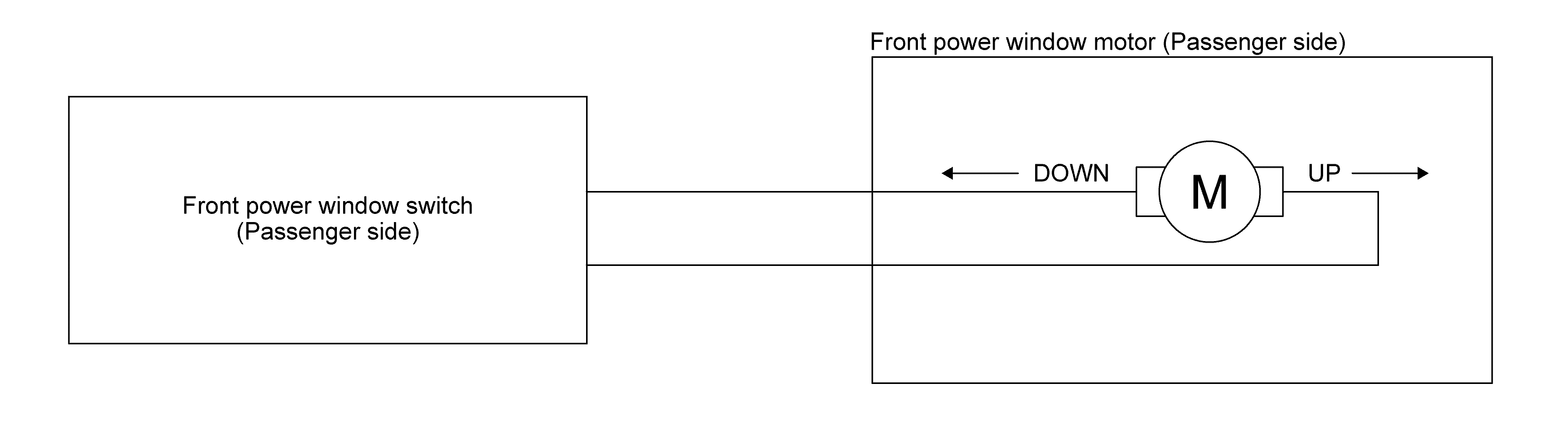

When front power window switch (passenger side) is operated, it transmits signal to front power window motor (passenger side).
Courtesy of NISSAN NORTH AMERICA, INC.

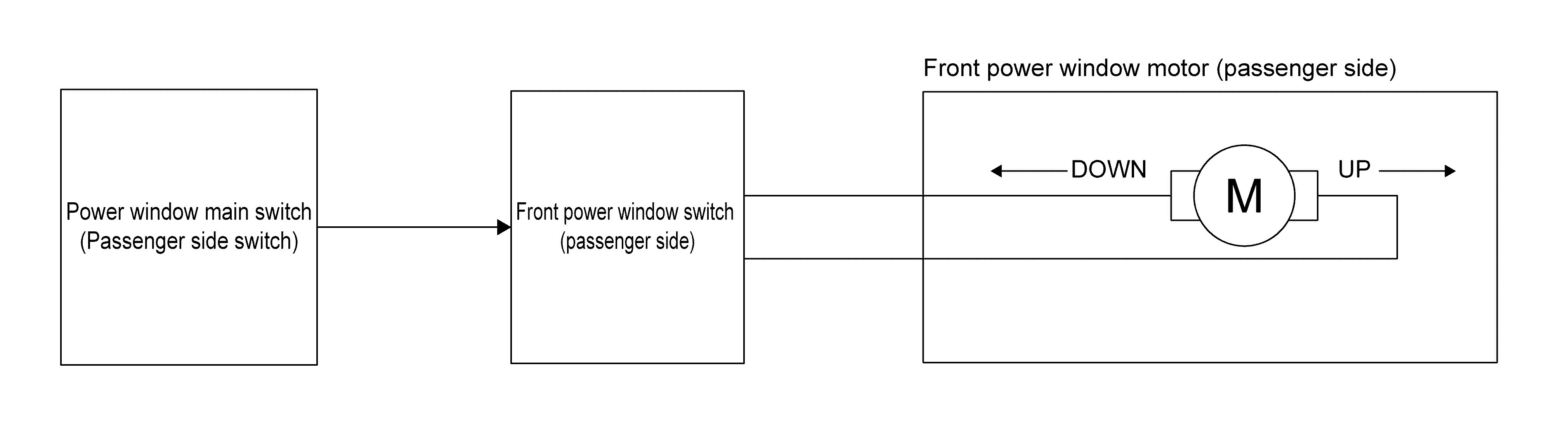

Transmits the operation signal from power window main switch (passenger side switch) to front power window motor (passenger side).
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
