Component Location

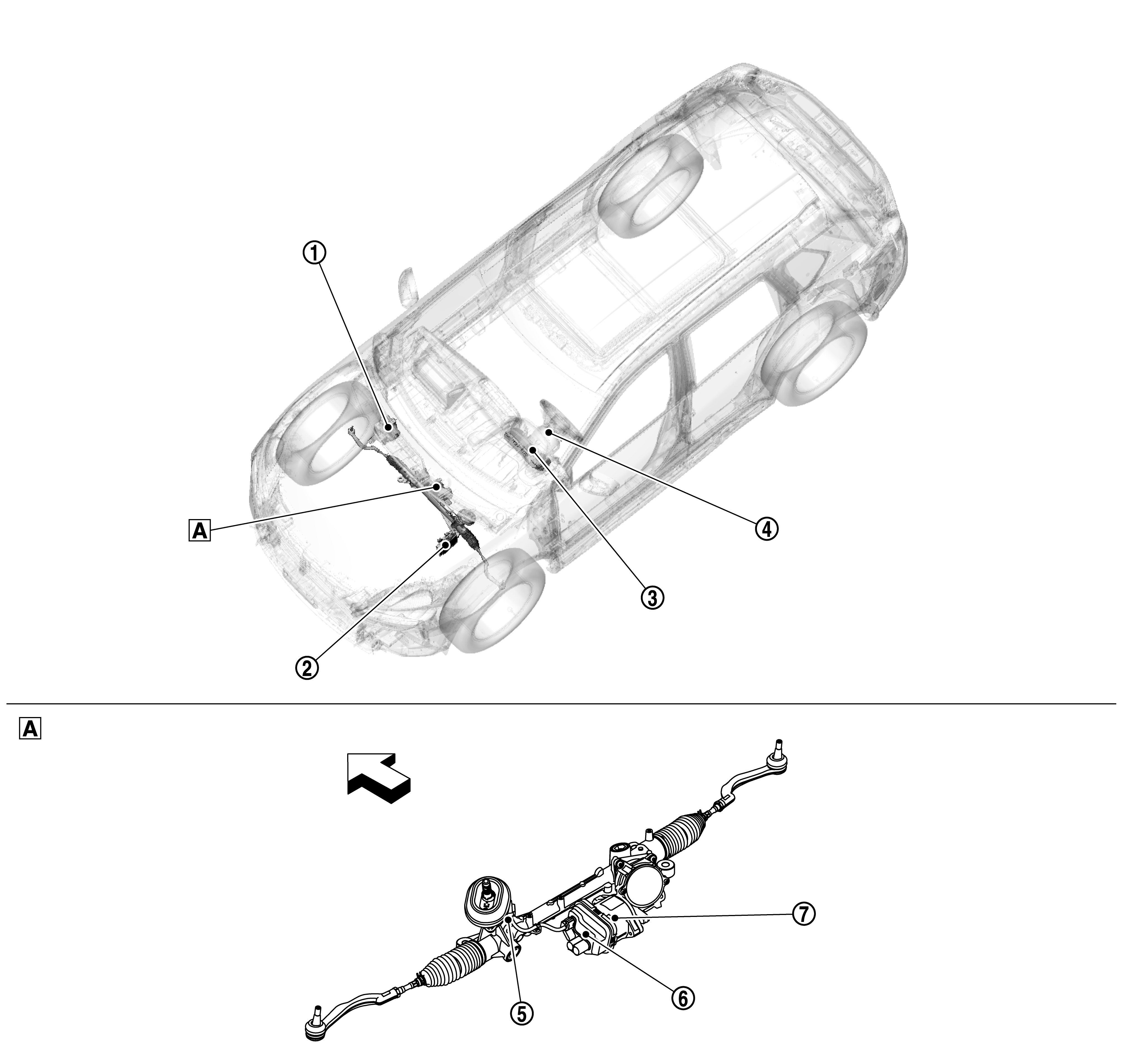

GNSILL0312306Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Steering gear assembly

SYMBOL

ABS actuator and electric unit (control unit)

Refer to Component Location for detailed installation location.

SYMBOL

ECM

Refer to Component Location (KR15DDT engine models) for detailed installation location.

SYMBOL

Combination meter

Refer to Component Location (full TFT meter), Component Location (7 inch information display) for detailed installation location.

SYMBOL

Steering angle sensor

Refer to Component Location for detailed installation location.

SYMBOL

Power steering torque sensor

SYMBOL

Power steering control module

SYMBOL

EPS motor
