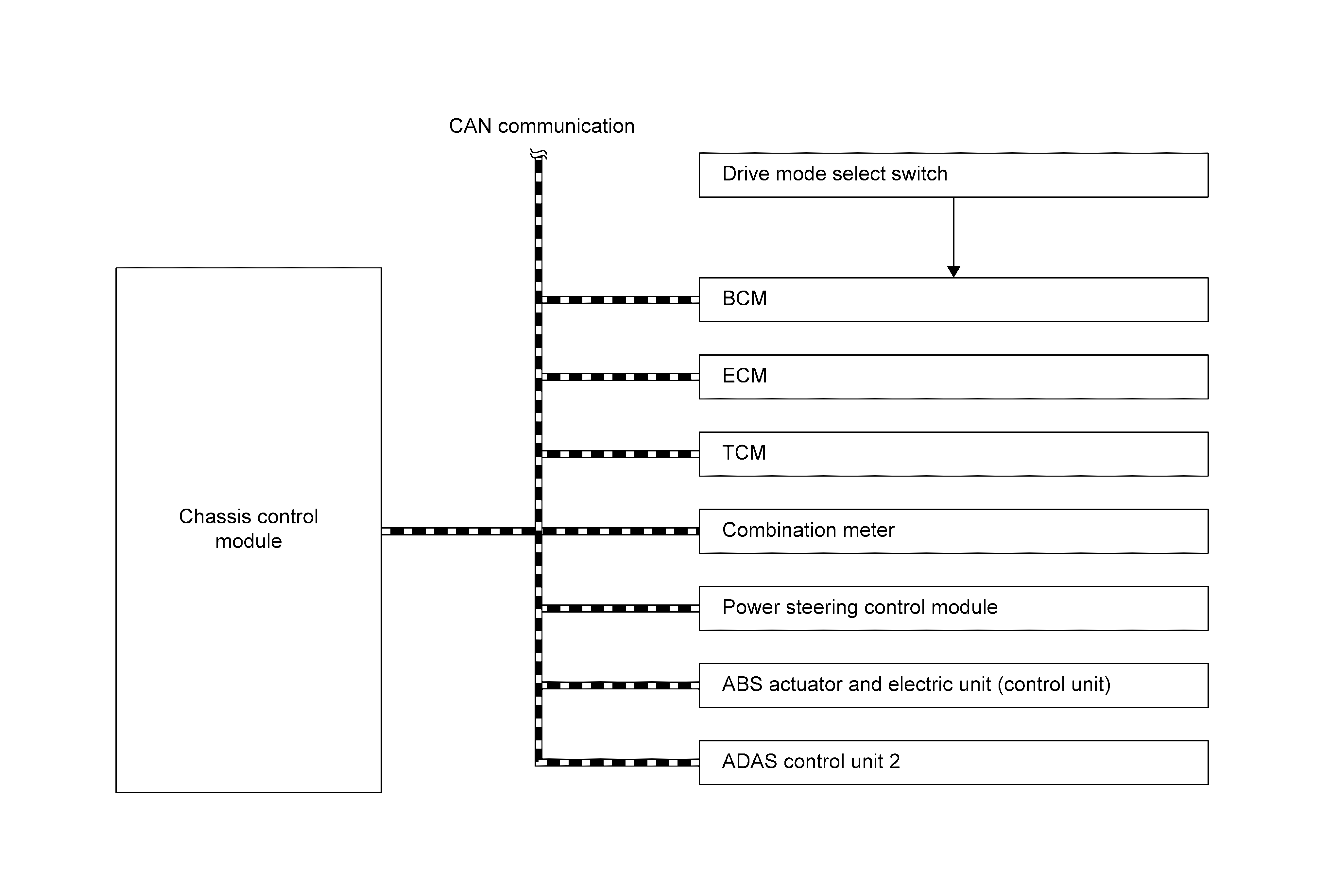

System Diagram

GNSILL0312794Courtesy of NISSAN NORTH AMERICA, INC.

Component

Signal description

BCM

Mainly transmits the following signals to chassis control module via CAN communication.

  • Drive mode switch signal

ECM

Mainly receives the following signals from chassis control module via CAN communication.

  • Drive mode signal

TCM

Mainly receives the following signals from chassis control module via CAN communication.

  • Drive mode signal

ABS actuator and electric unit (control unit)

Mainly receives the following signals from chassis control module via CAN communication.

  • Drive mode signal

Combination meter

Mainly receives the following signals from chassis control module via CAN communication.

  • Drive mode signal

Power steering control module

Mainly receives the following signals from chassis control module via CAN communication.

  • Drive mode signal

ADAS control unit 2

Mainly receives the following signals from chassis control module via CAN communication.

  • Drive mode signal
