Nissan-Datsun
>>
2022
>>
Rogue SL, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Body Control System
>>
System Description
>>
System
>>
Combination Switch Reading System
>>
System Description
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

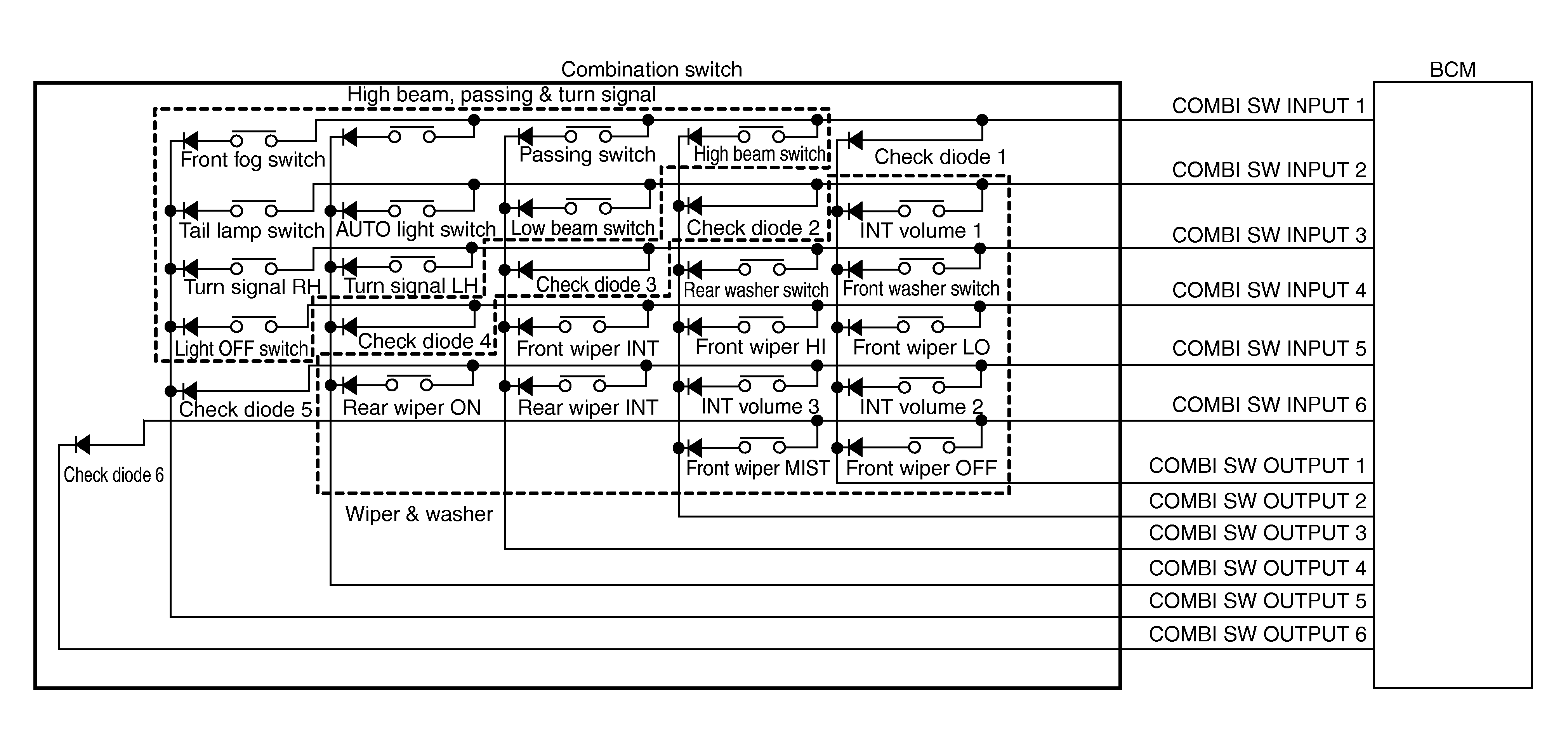

System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
AUTO light switch is not applicable. (For Canada models)
Courtesy of NISSAN NORTH AMERICA, INC.
