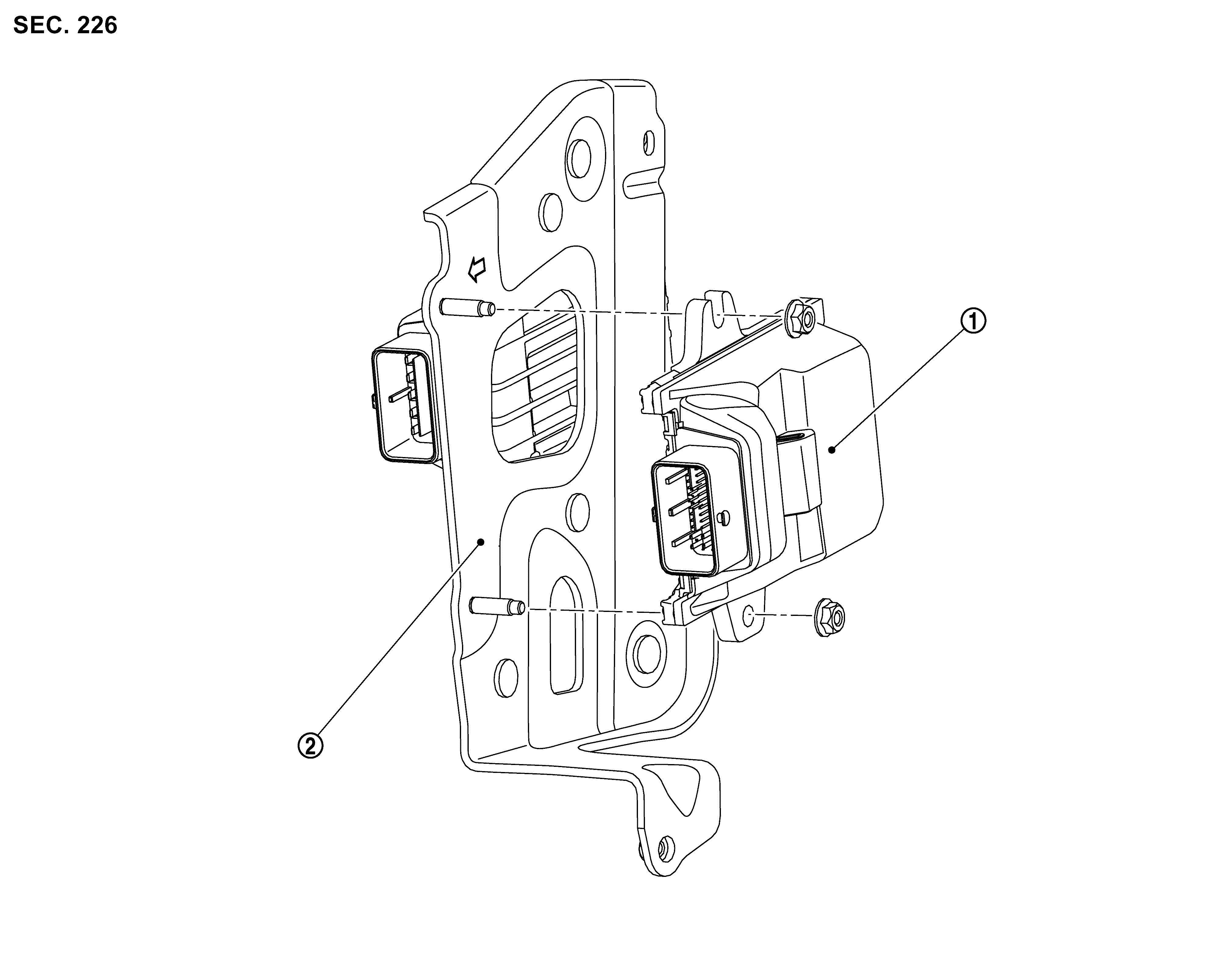

ELECTRIC INTAKE VALVE TIMING CONTROL MODULE : Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Electric intake valve timing control module
2.
Bracket
