Exploded View

WARNING: This page is about a different car, the 2021 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

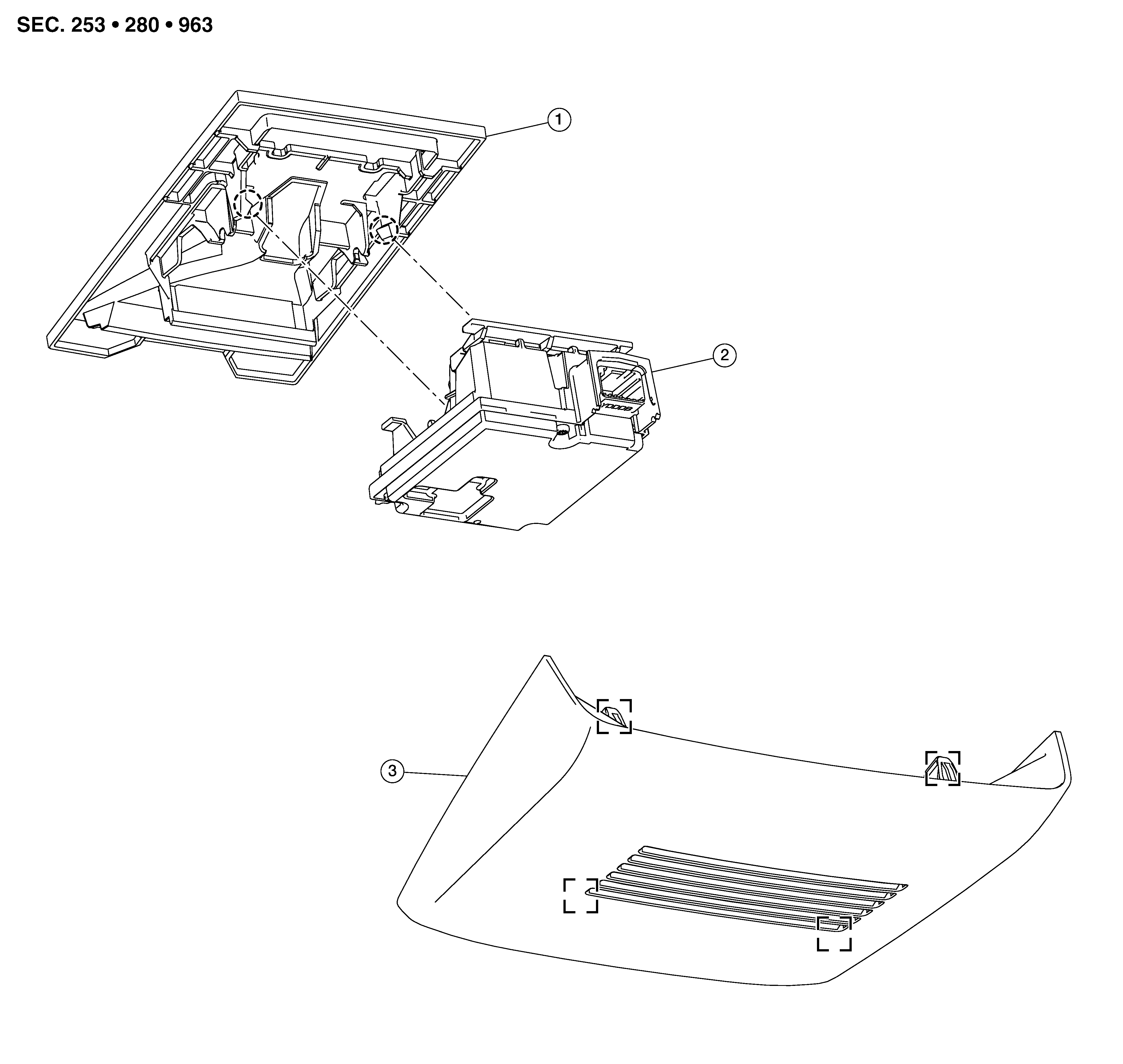

GNSDB115193Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front camera unit bracket

2.

Front camera unit

3.

Front camera cover

SYMBOL

Metal clip

SYMBOL

Pawl
