Exploded View

WARNING: This page is about a different car, the 2021 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

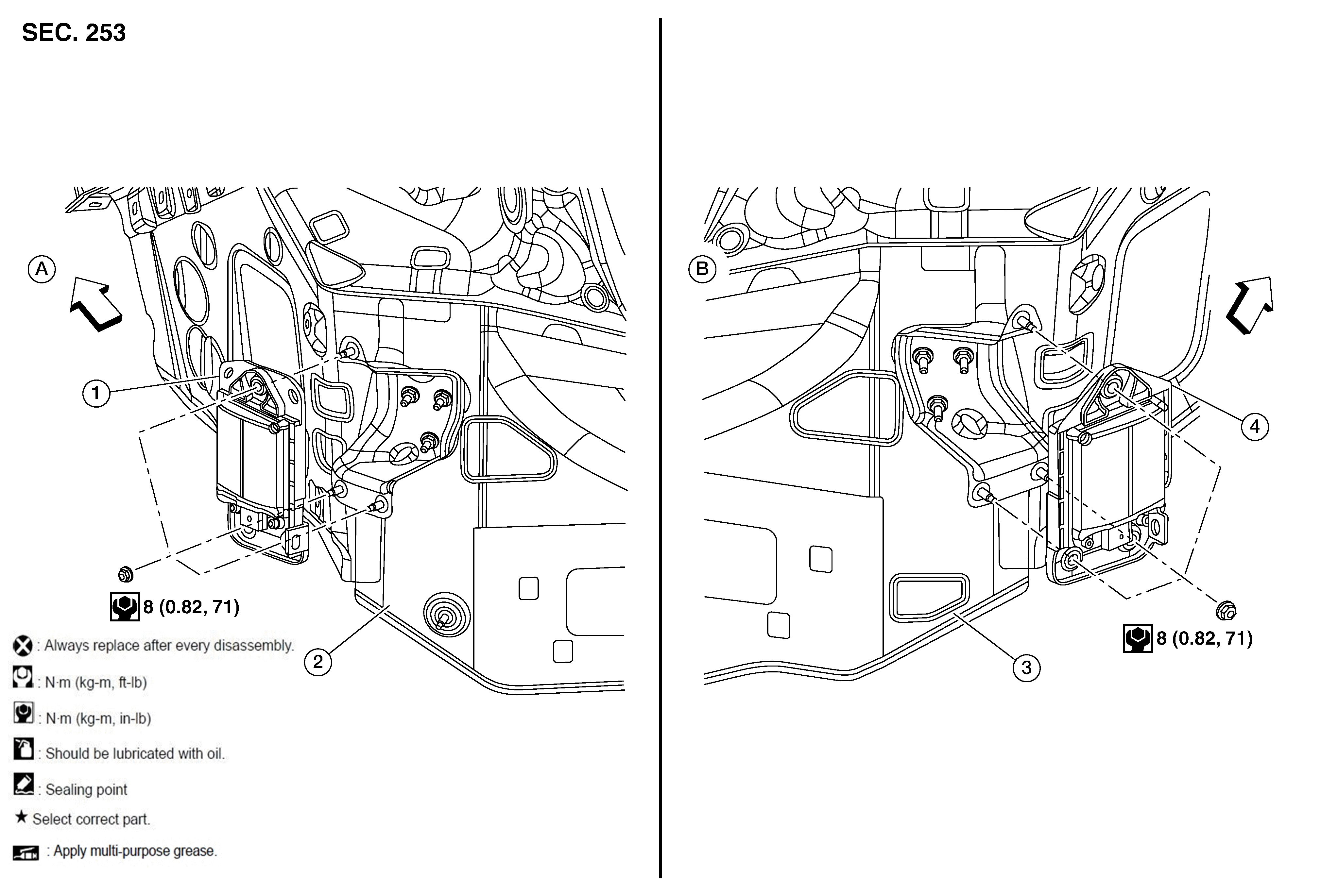

Fig 1: Side Radar Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Side radar (LH)	2.	Rear fender (LH)	3.	Rear fender (RH)
4.	Side radar (RH)
A.	LH side	B.	RH side		Front
