Exploded View

WARNING: This page is about a different car, the 2021 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

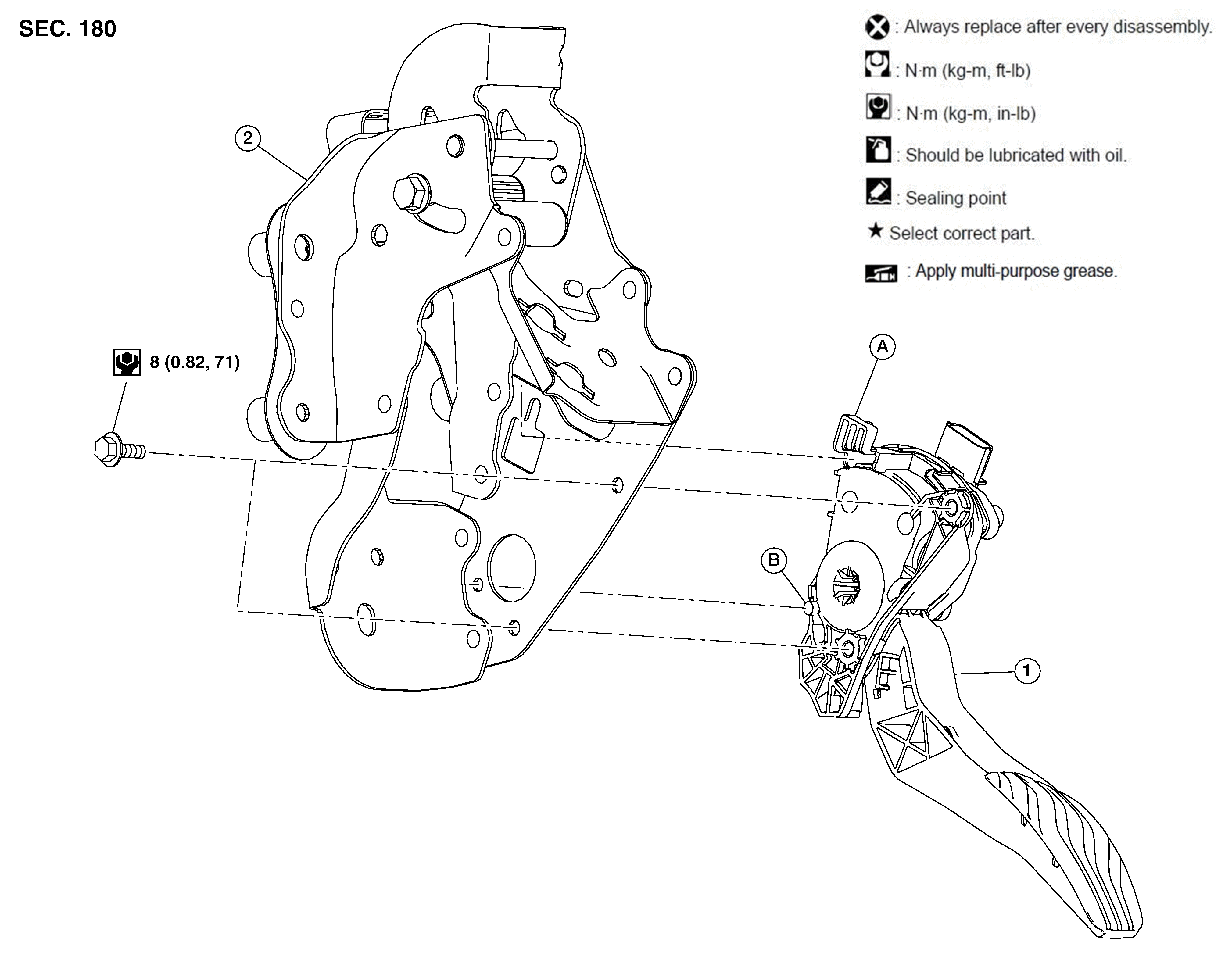

Fig 1: Accelerator Control System Components With Torque Specification
GNSALBIA0646Z-646Courtesy of NISSAN NORTH AMERICA, INC.

1.

Accelerator Pedal Assembly

2.

Brake pedal bracket

A.

Locating hook

B.

Locating pin
