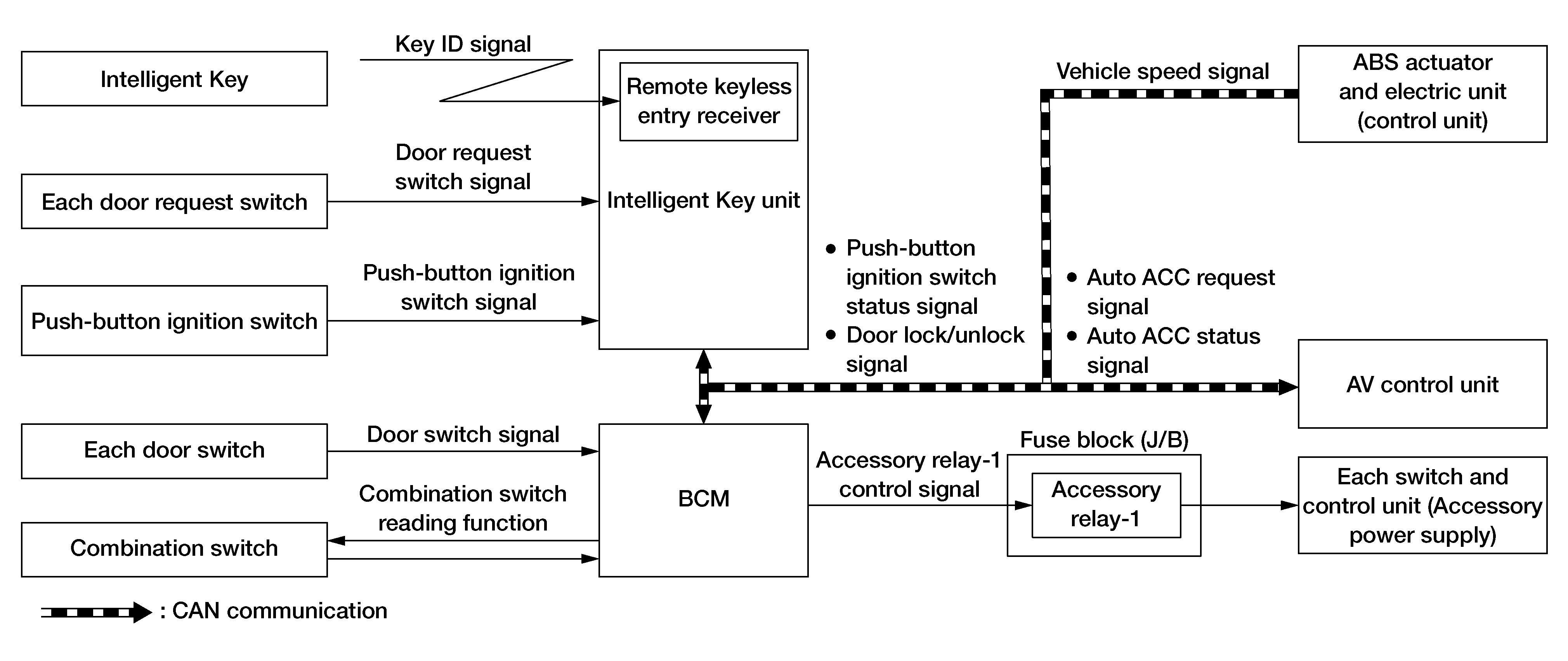

System Diagram
|
Component |
Function |
|
Intelligent Key |
Operates based on the results of electronic ID verification using two-way communication between the Intelligent Key and the vehicle (Intelligent Key unit). |
|
Each door request switch |
Detects door lock/unlock operation. |
|
Push-button ignition switch |
Refer to Push-Button Ignition Switch . |
|
Each door switch |
Detects door open/close condition. |
|
Combination switch |
Inputs each switch condition signal to the BCM. |
|
Intelligent Key unit |
Transmits the push-button ignition switch status signal and door lock and unlock signal to the BCM via CAN communication. |
|
ABS actuator and electric unit (control unit) |
Transmits the vehicle speed signal (ABS) to the BCM via CAN communication. |
|
BCM |
The BCM operates the auto ACC function based on each signal state. |
|
Accessory relay-1 |
Controlled by the BCM and turns ON/OFF the battery power supply to each component. |
|
Audio/Navigation |
|
