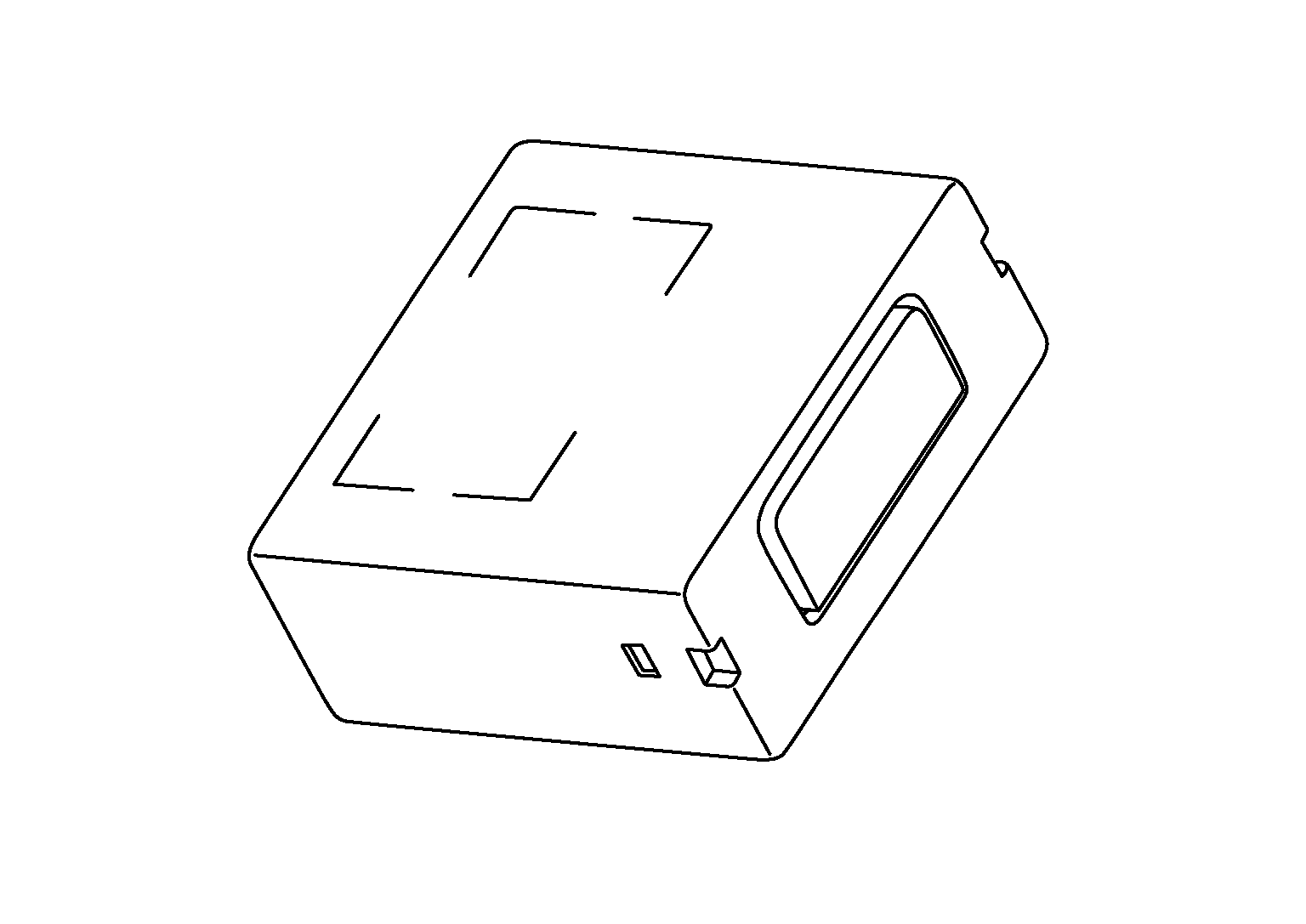

ADAS Control Unit
- ADAS control unit is installed on the RH side of the instrument panel.
 Courtesy of NISSAN
|
- Communicates with each control unit via CAN communication/ITS communication/Chassis communication.
- ADAS control unit included gateway function, and necessary for system control signals are transmitted to each control unit between CAN communication and ITS communication by the ADAS control unit.
- ADAS control unit controls each system, based on ITS communication signal, CAN communication signal and chassis communication signal from each control unit.
