Work Flow

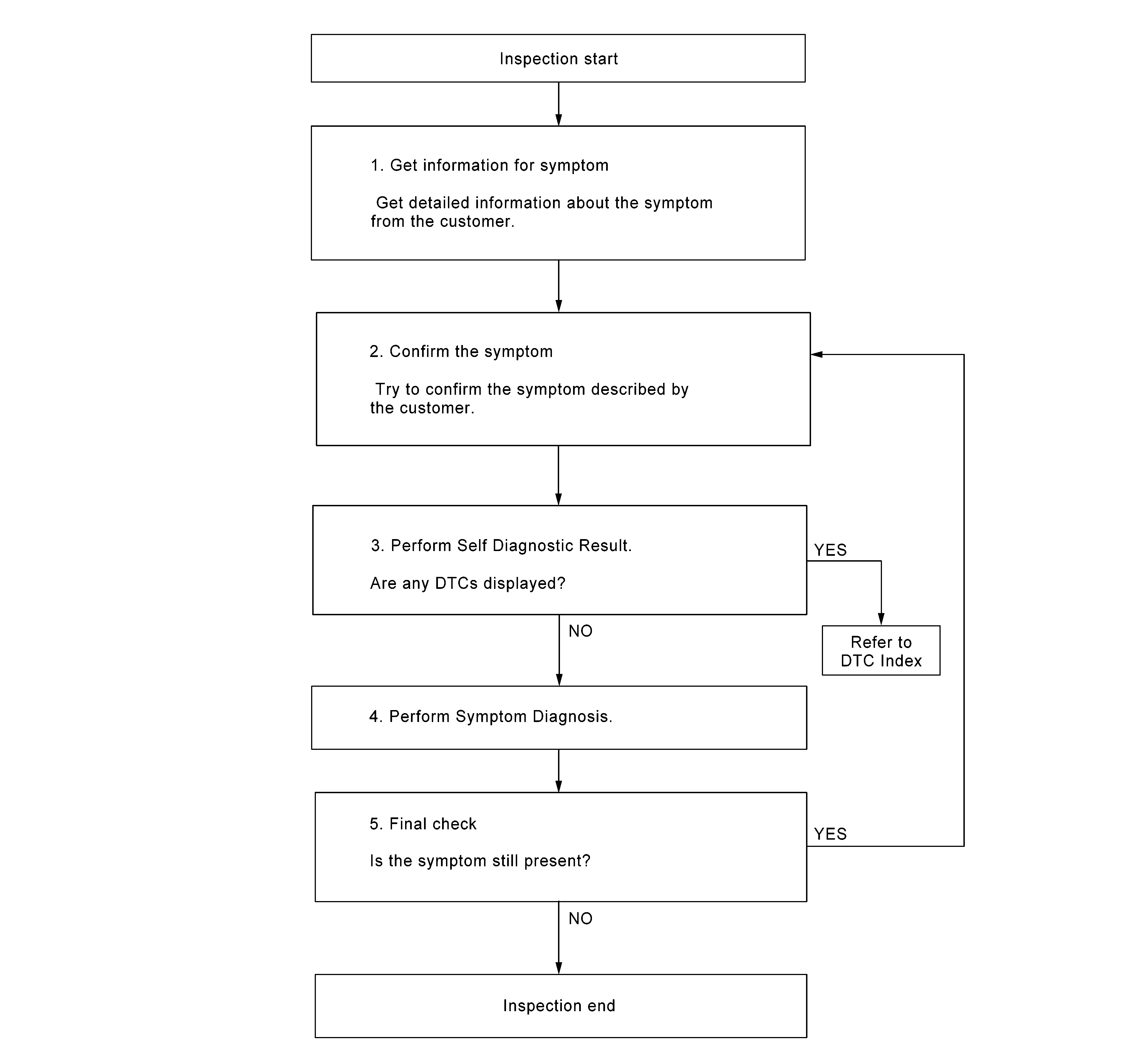

OVERALL SEQUENCE

Courtesy of NISSAN

DETAILED FLOW

1. GET INFORMATION FOR SYMPTOM
   1. Get detailed information from the customer about the symptom (the condition and the environment when the incident/malfunction occurred).

   >>

   GO TO 2.

2. CONFIRM THE SYMPTOM
   1. Try to confirm the symptom described by the customer. Verify relation between the symptom and the condition when the symptom is detected.

   >>

   GO TO 3.

3. PERFORM SELF DIAGNOSTIC RESULT
   1. CONSULT
      1. Ignition switch ON and wait for 2 seconds or more.
      2. Select "Self Diagnostic Result" mode of "MULTI AV".

   Are any DTCs displayed?

   YES>>

   Refer to DTC Index .

   NO>>

   GO TO 4.

4. PERFORM SYMPTOM DIAGNOSIS
   1. Refer to Symptom Table .

   >>

   GO TO 5.

5. FINAL CHECK
   1. Refer to symptom described by the customer in step 1.

   Is the symptom still present?

   YES>>

   GO TO 2.

   NO>>

   Inspection End.
