ENGINE CONTROL SYSTEM : Special Service Tool

The actual shape of the tools may differ from those illustrated here.

Tool number (TechMate No.) Tool name Description

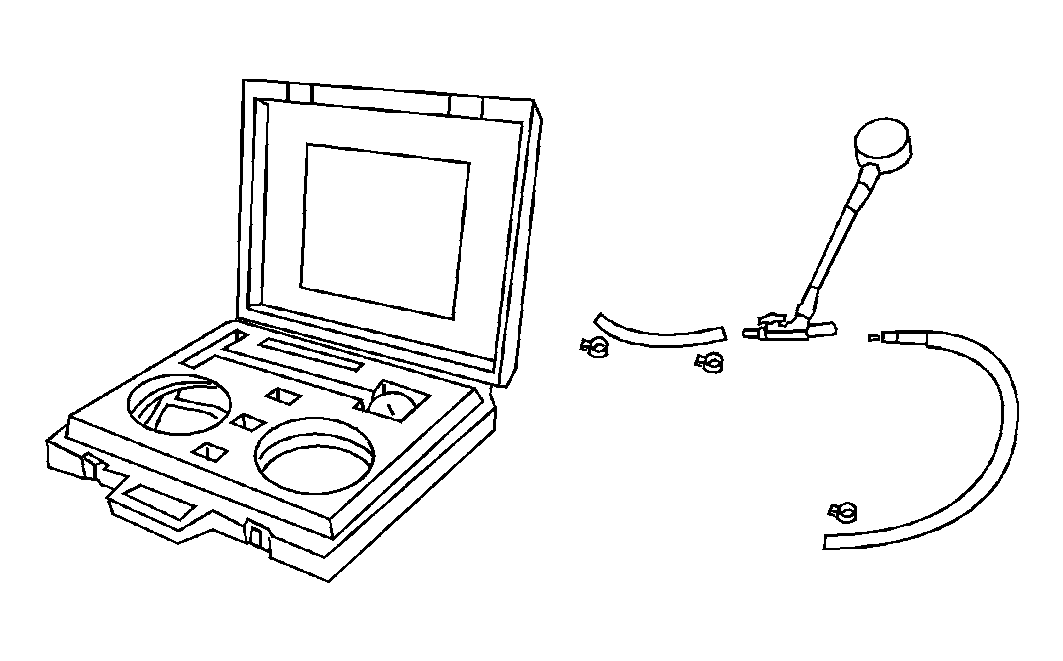

(J-44321) Fuel pressure gauge kit
GNSDB33659Courtesy of NISSAN
Checks fuel pressure
KV10120000 Fuel tube adapter
GNSDB34023Courtesy of NISSAN
Measures fuel pressure
