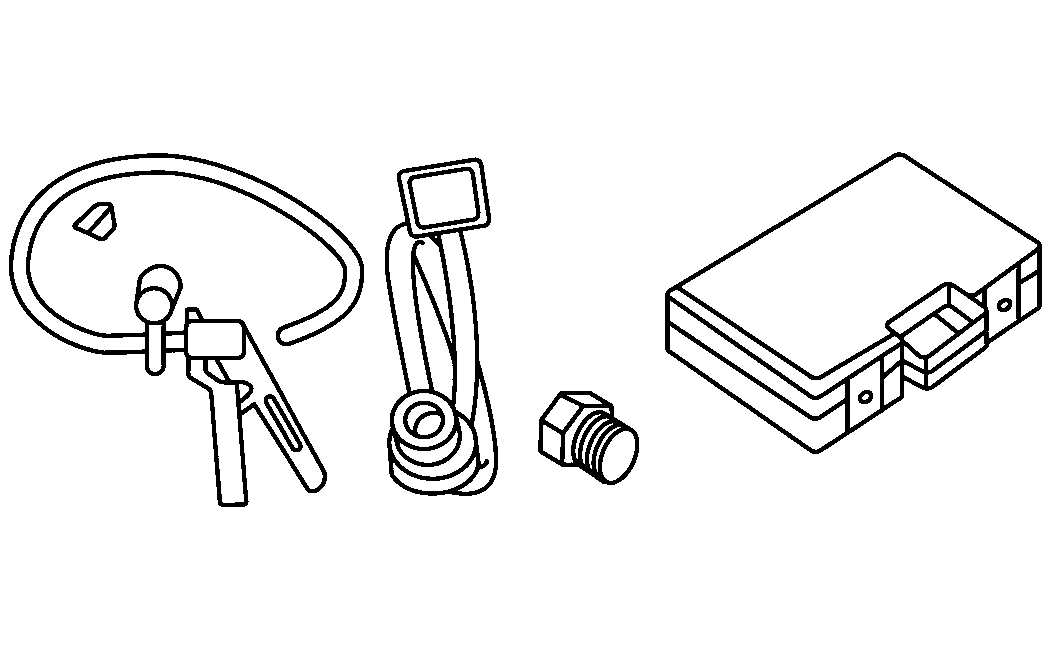

| Leak detector i.e.: (J-41416) |
 Courtesy of NISSAN
|
Locates the EVAP leak |
| EVAP service port adapter i.e.: (J-41413-OBD) |
 Courtesy of NISSAN
|
Applies positive pressure through EVAP service port |
| Fuel filler cap adapter i.e.: (J-42909) |
 Courtesy of NISSAN
|
Checks fuel tank vacuum relief valve opening pressure |

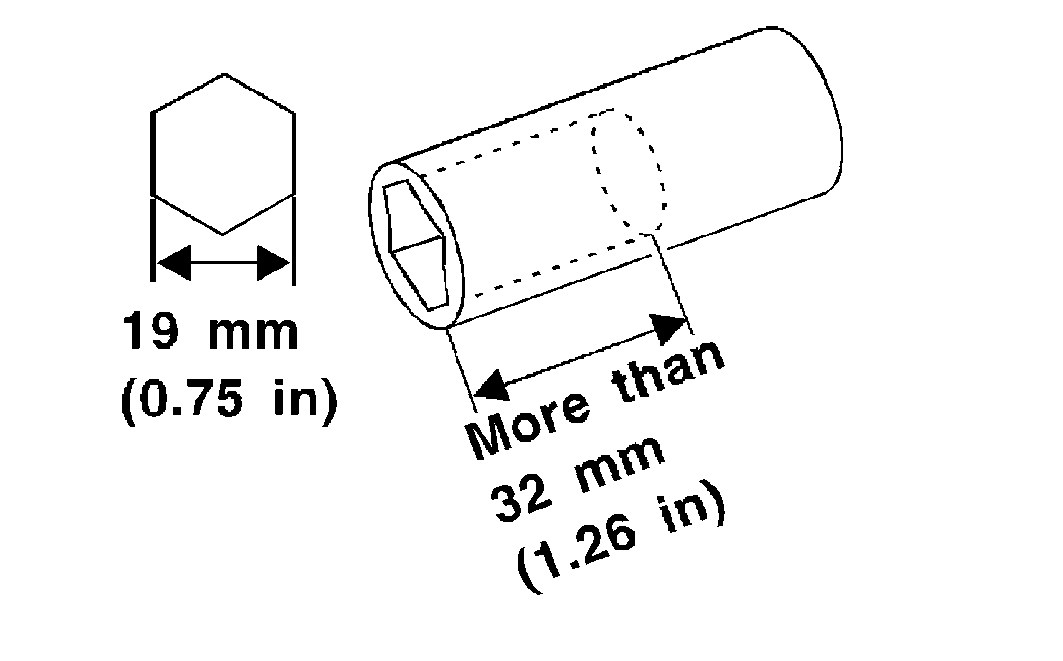

| Socket wrench |
 Courtesy of NISSAN
|
Removes and installs engine coolant temperature sensor |

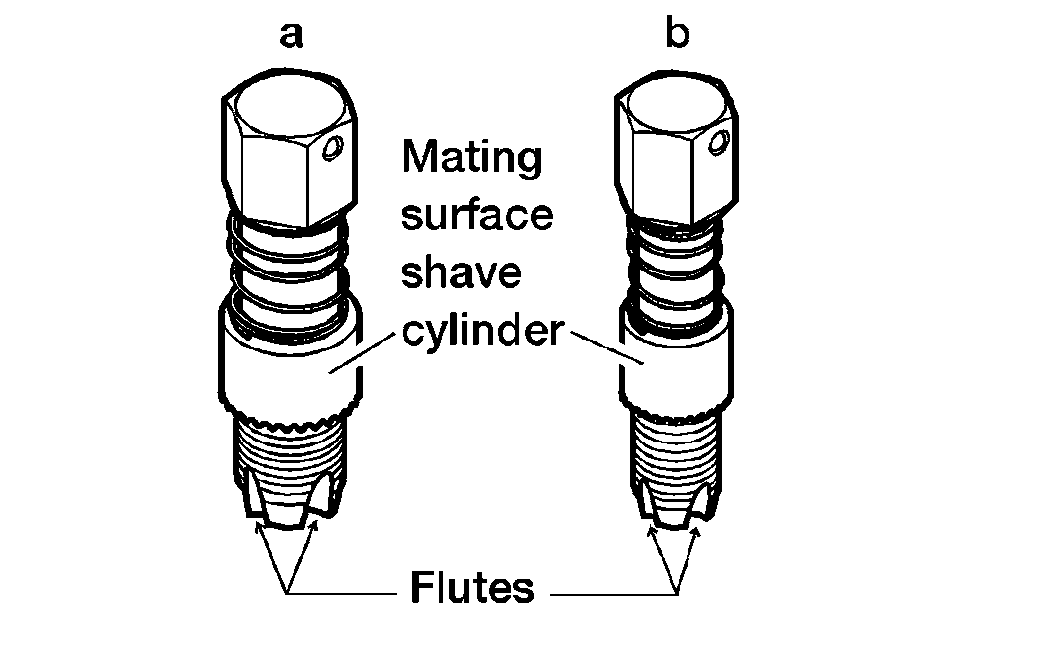

| Oxygen sensor thread cleaner i.e.: (J-43897-18) (J-43897-12) |
 Courtesy of NISSAN
|
Reconditions the exhaust system threads before installing a new oxygen sensor. Use with anti-seize lubricant shown below.a: 18 mm diameter with pitch 1.5 mm for Zirconia Oxygen Sensor b: 12 mm diameter with pitch 1.25 mm for Titania Oxygen Sensor |

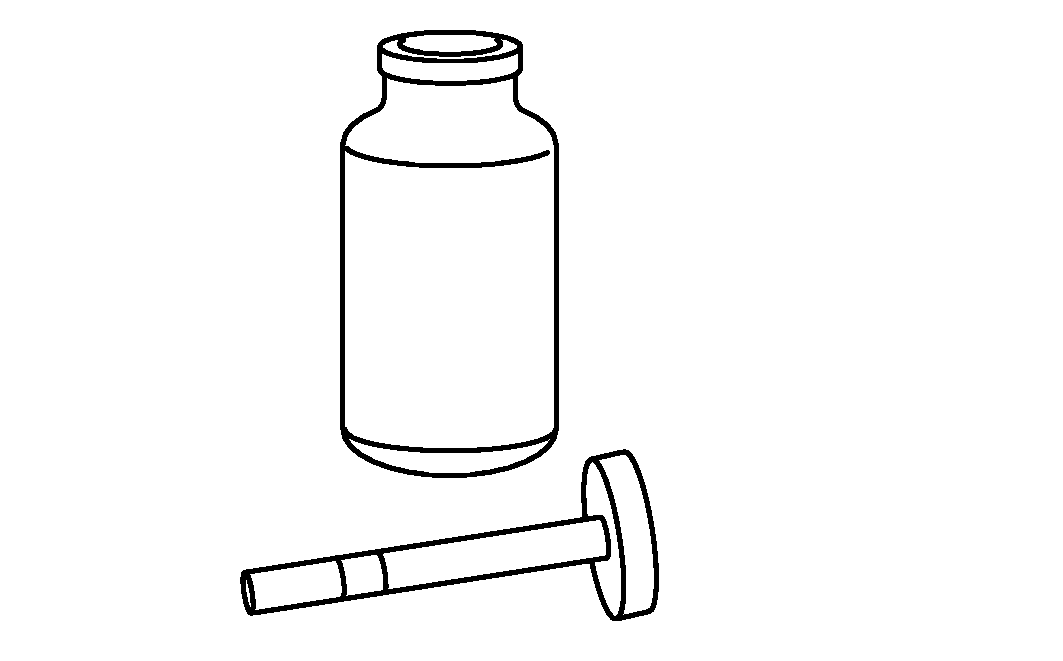

| Anti-seize lubricant i.e.: (PermatexTM 133AR or equivalent meeting MIL specification MIL-A-907) |
 Courtesy of NISSAN
|
Lubricates oxygen sensor thread cleaning tool when reconditioning exhaust system threads. |
