System Description

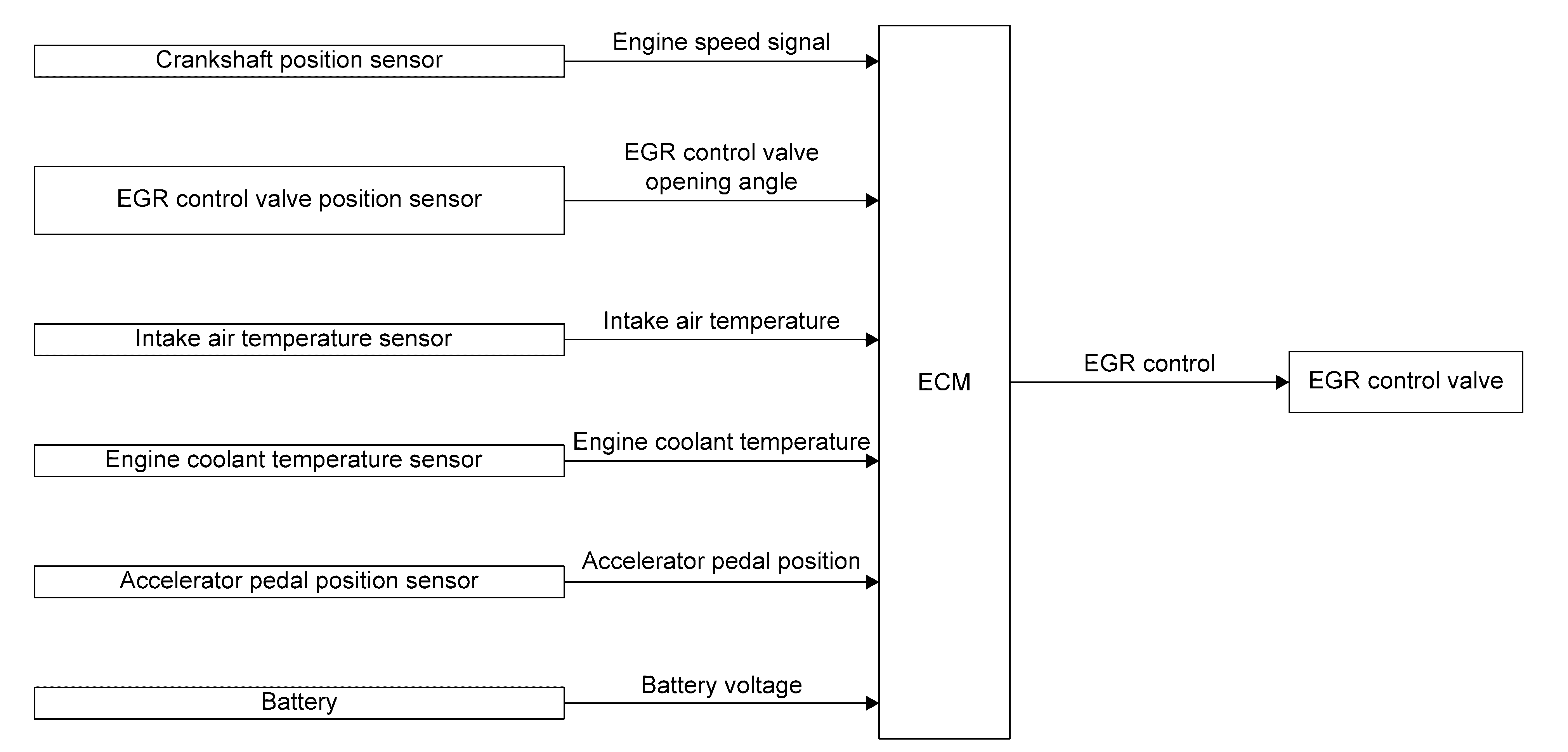

SYSTEM DIAGRAM
| Component parts | Function |
|---|---|
| Crankshaft position sensor | Crankshaft Position Sensor |
| EGR volume control valve | EGR Volume Control Valve |
| Intake air temperature sensor | Mass Air Flow Sensor (With Intake Air Temperature Sensor) |
| Engine coolant temperature sensor | Engine Coolant Temperature Sensor |
| Accelerator pedal position sensor | Accelerator Pedal Position Sensor |
| Battery | ECM receives the battery voltage signal. |
| ECM | ECM |
| EGR control valve | EGR Volume Control Valve |

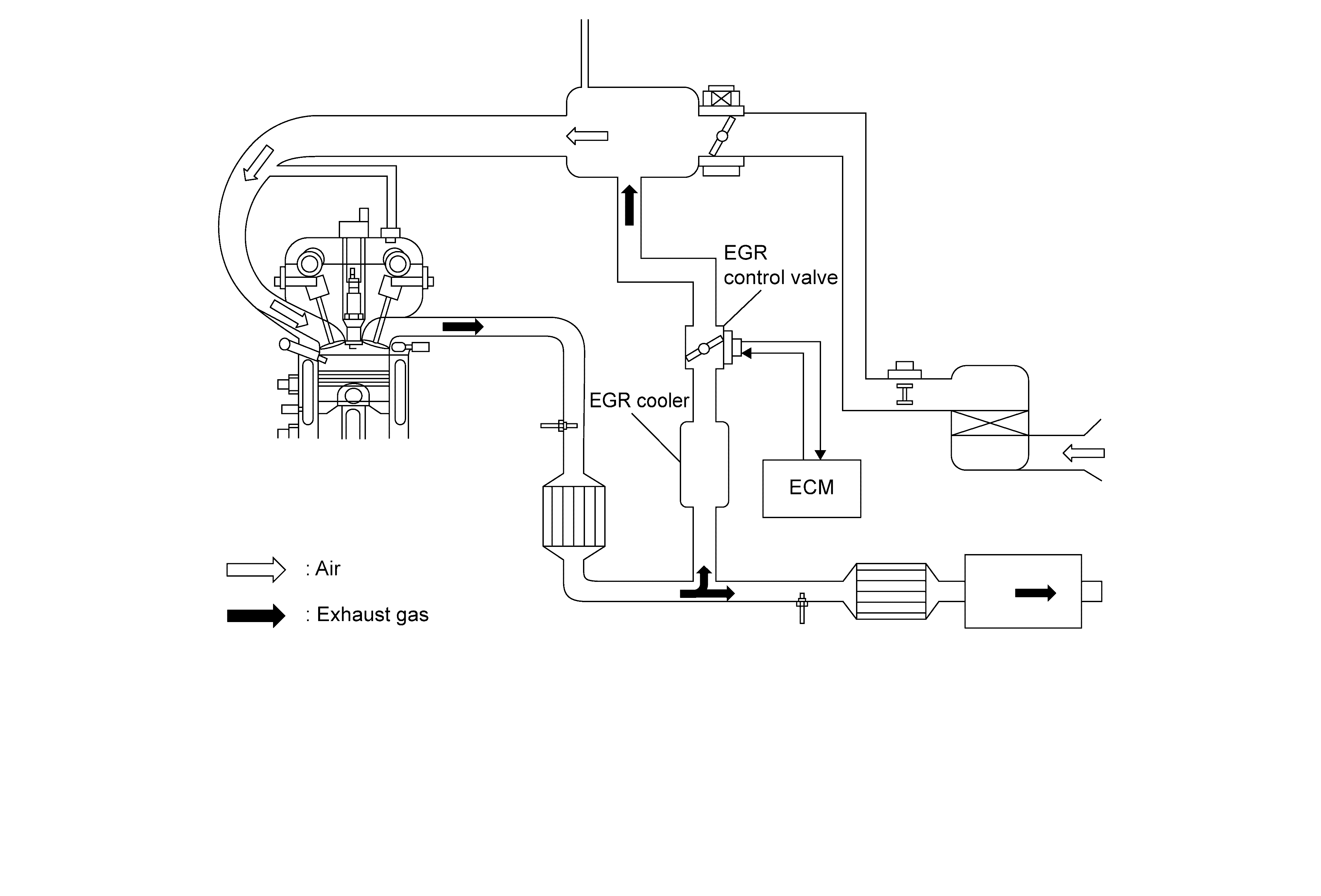

SYSTEM DESCRIPTION
EGR system decreases oxygen density in intake air by recirculating a part of exhaust gas to intake system, and decreases recirculating exhaust gas temperature by water cooling type cooler. This is to reduce combustion temperature inside of cylinder so that control generating NOx and knocking. Also this function is for coexistence of driveability and the exhaust performance, and fuel economy. EGR is deactivated under the following conditions to enhance driveability:
- Engine starting
- Engine at idle
- Low engine coolant temperature
- High engine coolant temperature
- High engine speed
- Low intake air temperature
- Low battery voltage
