Nissan-Datsun
>>
2023
>>
Frontier PRO-4X
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System
>>
Removal And Installation
>>
Yaw Rate/Side/DECEL G Sensor
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exploded View

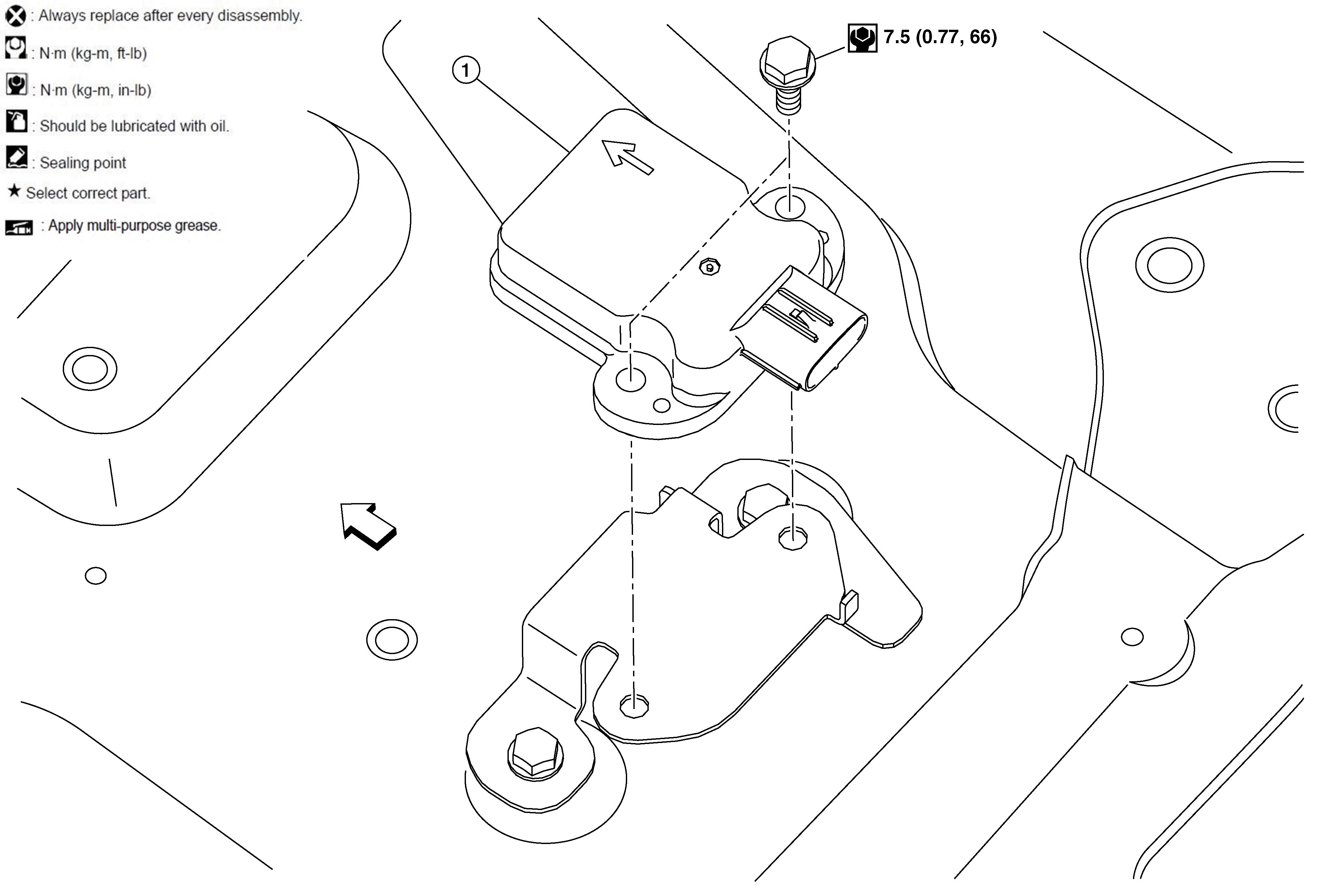

Fig 1: Yaw Rate/Side/Decel G Sensor With Torque Specifications
Courtesy of NISSAN
1.
Yaw rate/side/decel G sensor
Front
