Exploded View

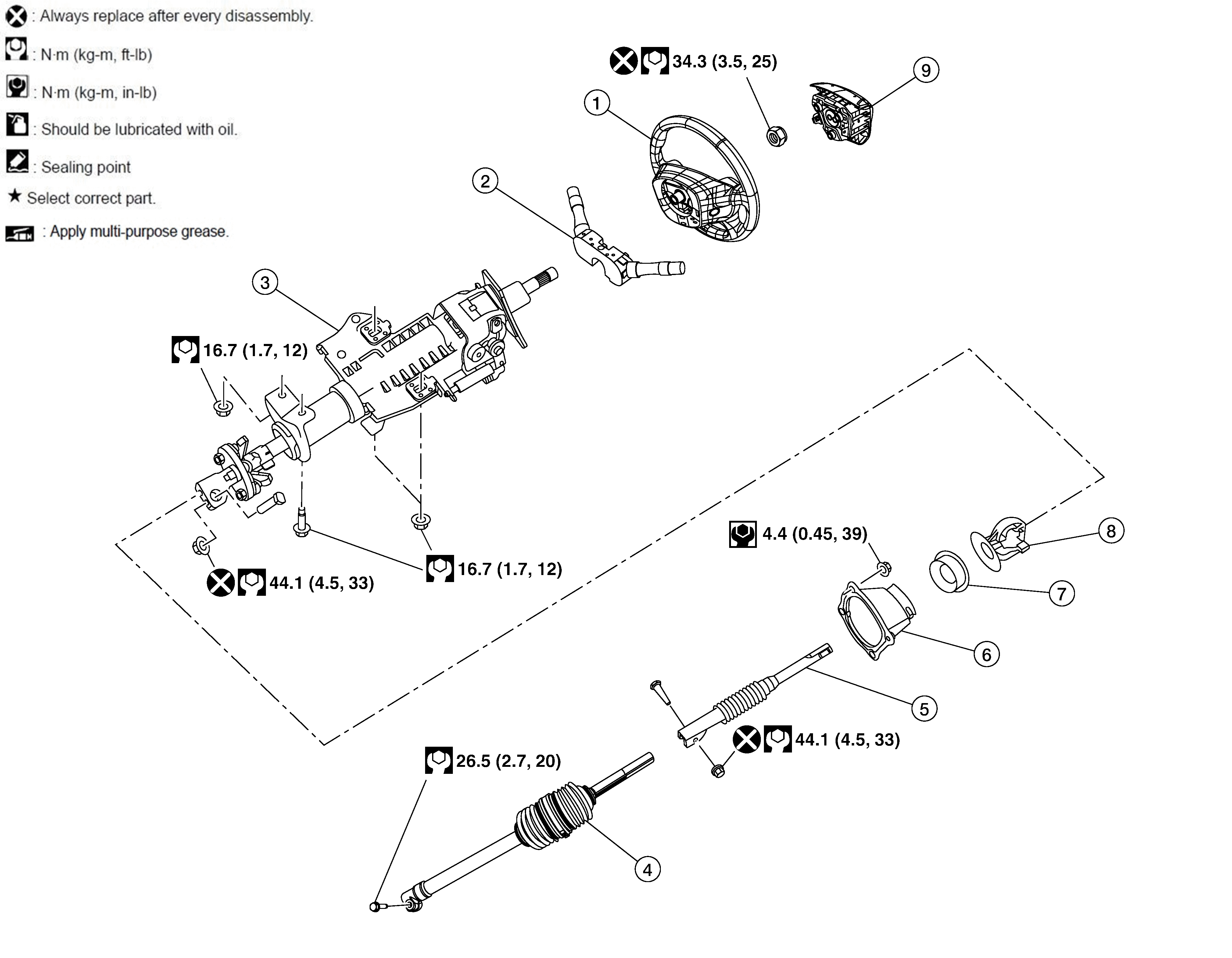

Fig 1: Steering Column With Torque Specifications
GNSDB42517Courtesy of NISSAN
1. Steering wheel 2. Combination switch and spiral cable 3. Steering column
4. Lower joint assembly 5. Upper shaft 6. Hole cover assembly
7. Hole cover seal 8. Collar 9. Driver air bag module
10. Steering wheel lock nut
