Main Power Window and Door Lock/Unlock Switch

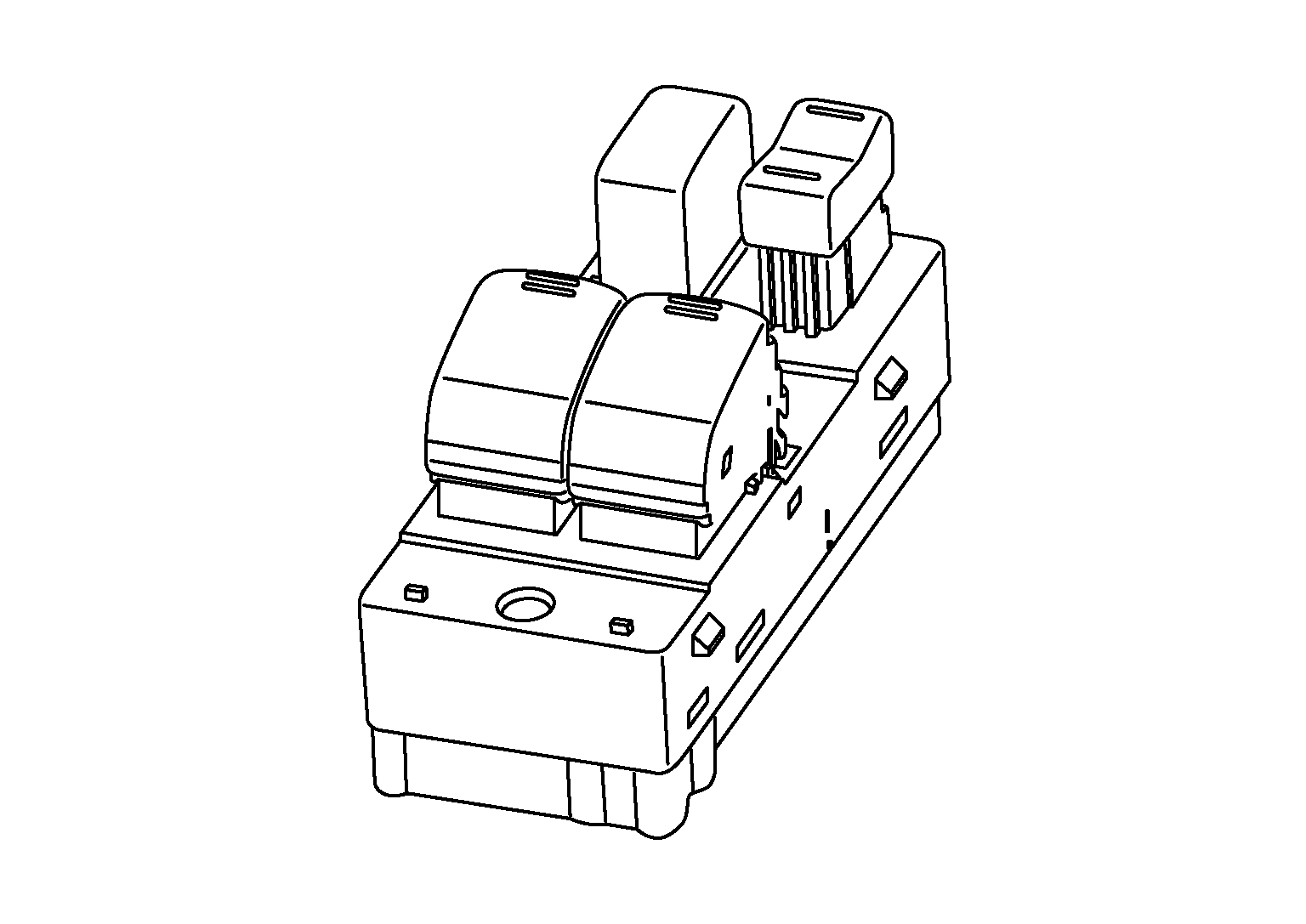

King Cab®

• Main power window and door lock/unlock switch is installed to the front LH door finisher.

  Courtesy of NISSAN

• Main power window and door lock/unlock switch controls all power windows.
• Main power window and door lock/unlock switch integrates UP/DOWN switch, power window lock switch, and door lock/unlock switch.
• Main power window and door lock/unlock switch controls power window lock function, AUTO UP/DOWN function.
• Receives encoder pulse signal and then controls anti-pinch system.

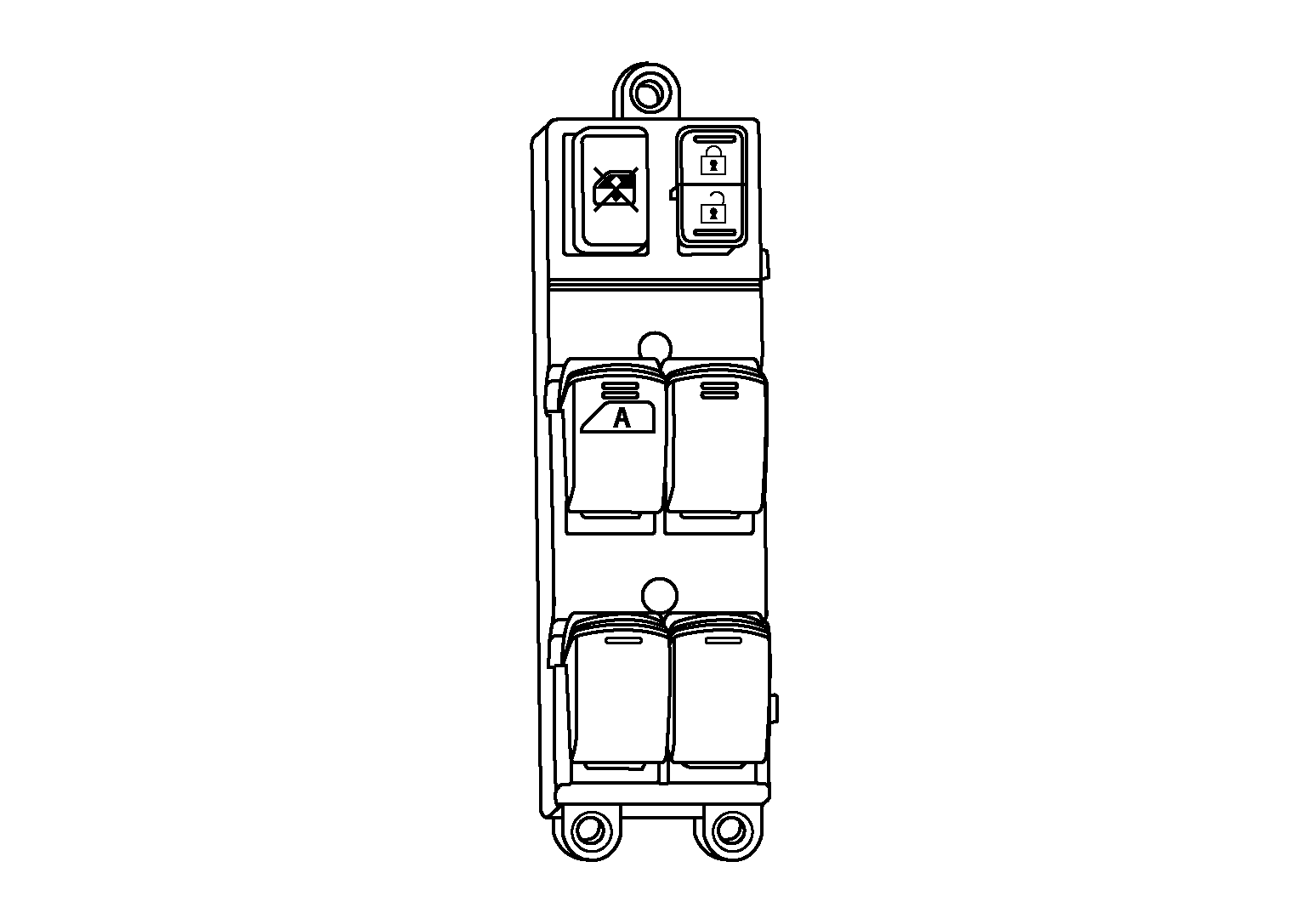

Crew Cab

• Main power window and door lock/unlock switch is installed to the front LH door finisher.

  Courtesy of NISSAN

• Main power window and door lock/unlock switch controls all power windows.
• Main power window and door lock/unlock switch integrates UP/DOWN switch, power window lock switch, and door lock/unlock switch.
• Main power window and door lock/unlock switch controls power window lock function, AUTO UP/DOWN function.
• Receives encoder pulse signal and then controls anti-pinch system.
