Exploded View

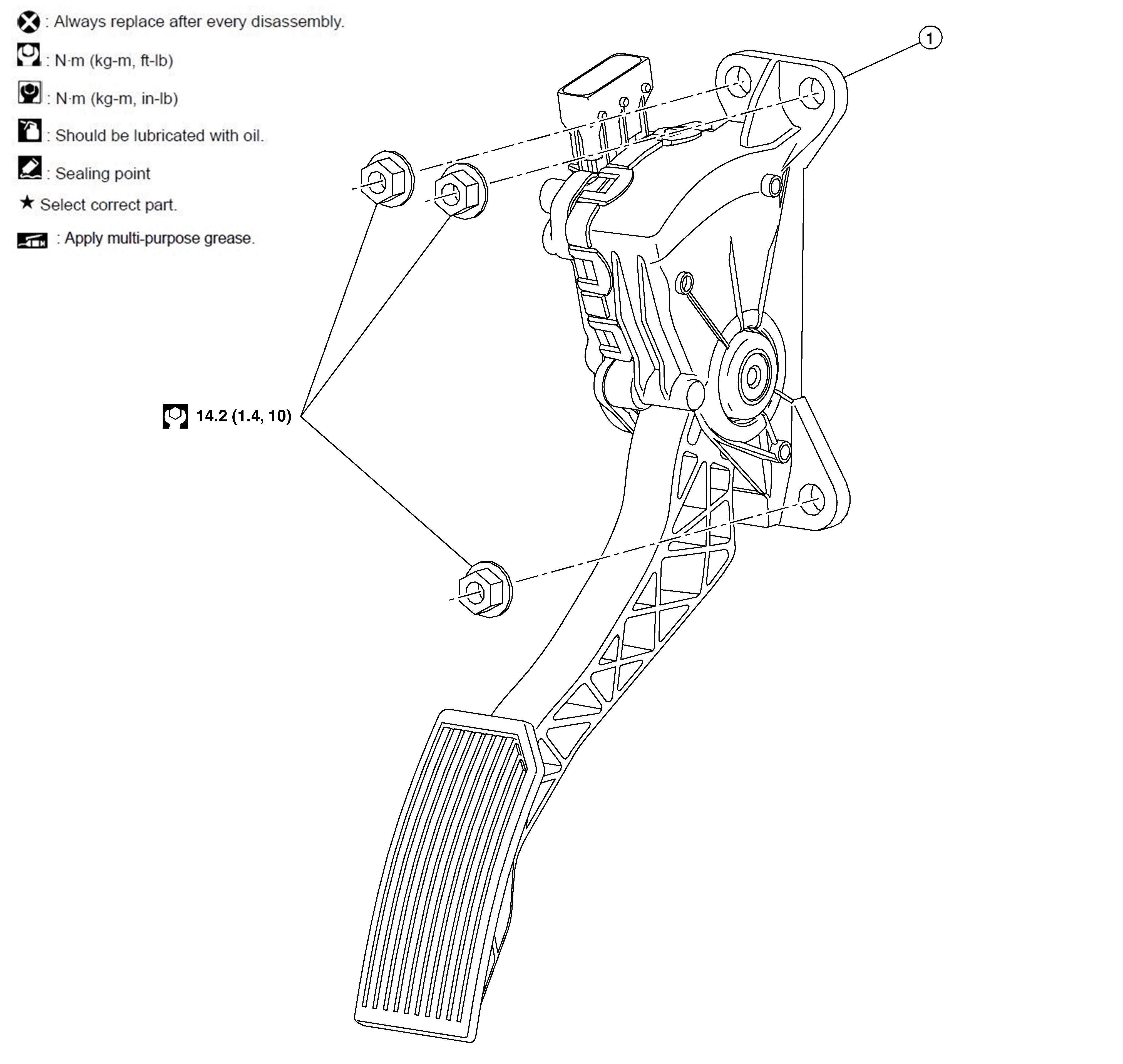

Fig 1: Accelerator Pedal Assembly With Torque Specifications
Courtesy of NISSAN
1.
Accelerator pedal assembly
Front
