Hood Switch
FUNCTIONS WITHIN THE SYSTEM
When the ECM receives the hood switch signal via CAN communication, it cancels the idle start/stop system.
INDIVIDUAL FUNCTION WITHIN THE SYSTEM
The hood switch detects the hood open/close status and inputs the hood switch signal into the IPDM E/R.
INDIVIDUAL OPERATION

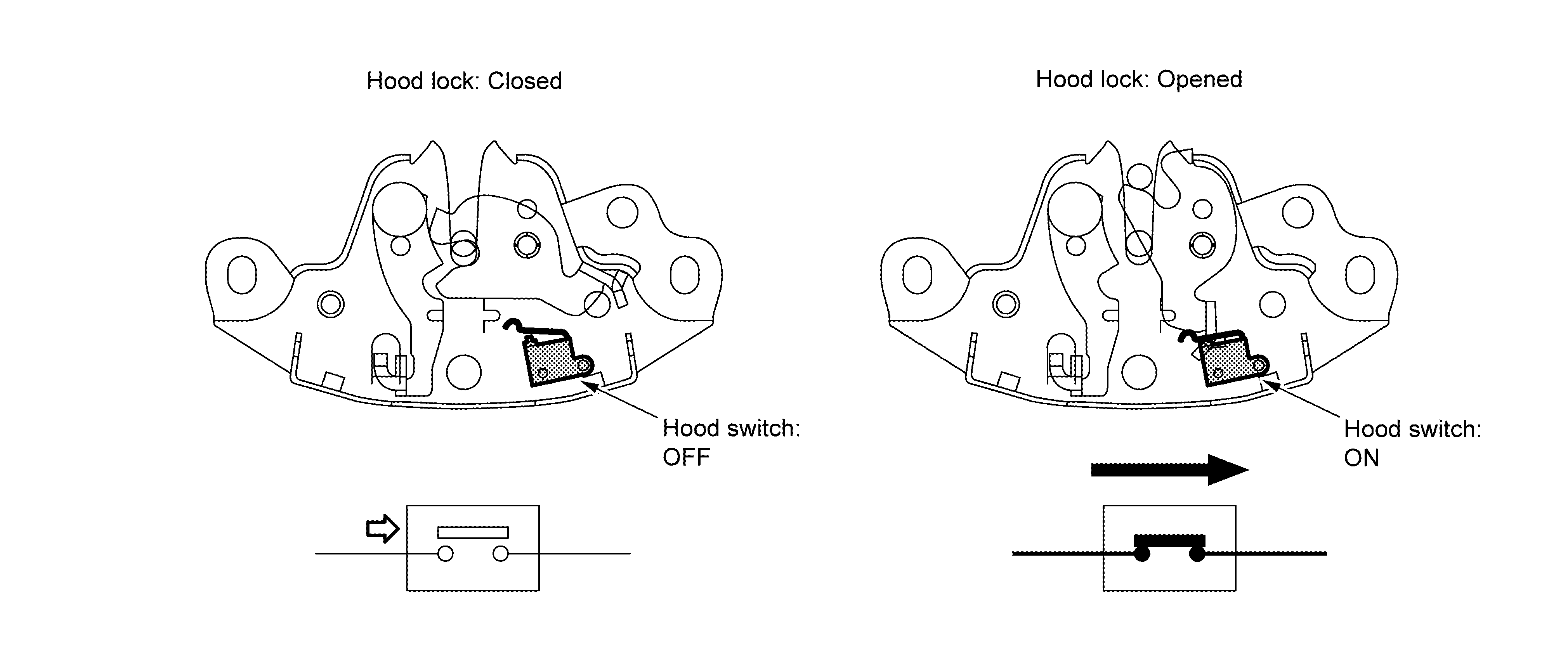

The hood switch turns ON/OFF according to the hood status.
COMPONENT LOCATION
The hood switch is installed to the hood lock.
